In the ever-evolving landscape of industrial automation, control valves play a critical role in regulating process parameters such as flow rate, pressure, temperature, and fluid levels. Among these, the pneumatic globe control valve stands out as a highly efficient and responsive device used across numerous industries—from petrochemical plants to power generation facilities.
A pneumatic globe control valve combines the precise throttling characteristics of a traditional globe valve with the speed and automation of pneumatic actuation. By using compressed air or gas as the driving force, these valves enable remote, real-time control of fluid processes, supporting industrial systems that demand both precision and reliability.

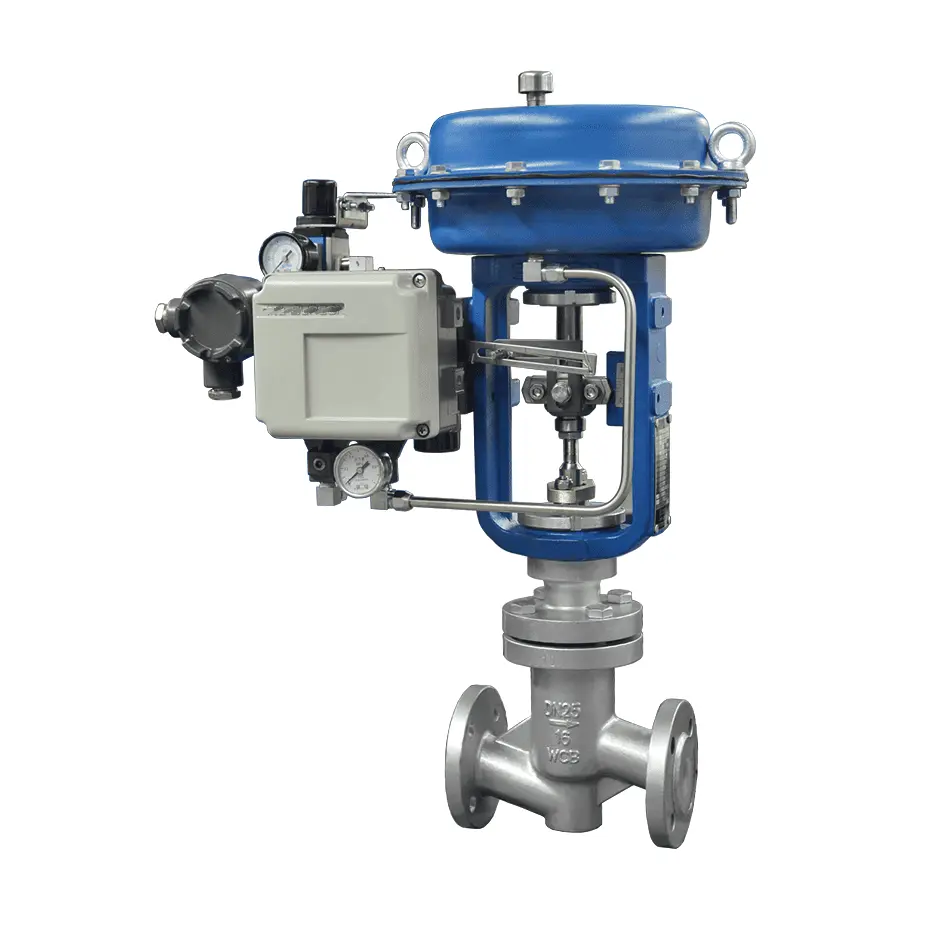

A pneumatic globe valve is a type of control valve that uses pneumatic pressure—typically compressed air—as a power source to regulate the flow of liquid or gas within a pipeline. The valve’s mechanism is based on a globe-style body, which is renowned for its linear motion and precise flow control capability. The pneumatic actuator, attached to the valve body, modulates the position of the valve plug in response to external control signals. This allows the system to make adjustments dynamically, with minimal human intervention.
The typical setup of a pneumatic control valve includes:
Pneumatic actuator (cylinder): Converts air pressure into mechanical force.
Valve positioner: Ensures accurate valve positioning based on control signals.
I/P (current to pressure) converter: Translates electrical signals into pneumatic signals.
Solenoid valve and lock-up valve: Provide additional control and safety functions.
Air preparation units: Including filters and regulators to maintain air quality and pressure.
Control system interface: To receive signals from PLCs or DCS systems in the plant.
The pneumatic globe control valve is widely favored in industries due to several distinctive advantages:
Pneumatic actuators provide quick and responsive action, allowing the control system to adjust parameters in real-time. This is particularly valuable in applications where rapid correction of pressure or flow rate is essential.
Unlike electric actuators, pneumatic systems do not produce sparks, making them ideal for hazardous or explosive environments—such as those found in petrochemical processing and mining industries.
The valve’s design is straightforward, involving fewer moving parts than electrically-actuated valves, which translates to ease of maintenance and higher reliability.
In the event of air supply failure, the valve can default to a safe position—either open or closed—depending on the design. This fail-safe feature minimizes operational risks during emergency conditions.
The valve’s opening and closing characteristics can be finely adjusted using different actuator configurations and valve trims, offering excellent control accuracy.
Thanks to its versatile and safe design, the pneumatic globe control valve is a staple in various industrial processes, including:
Oil and Gas: Flow and pressure regulation of crude oil, natural gas, and chemical injections.
Power Generation: Steam, condensate, and cooling water control in thermal power plants.
Chemical Processing: Accurate dosing and mixing of chemical reagents.
Water Treatment: Flow regulation in filtration and distribution systems.
Food and Beverage: Sanitary control of liquid ingredients and CIP (Clean-In-Place) systems.
Metallurgy and Steel Mills: High-temperature and abrasive fluid control.
The operation of a pneumatic globe control valve is fundamentally straightforward:
The valve positioner receives a signal—usually 4-20 mA—from the central control system.
The I/P converter changes this electrical signal into a corresponding air pressure.
The air pressure drives the pneumatic actuator, which moves the valve stem and plug.
The position of the plug within the valve seat adjusts the flow passage, thereby controlling the process variable (flow, pressure, etc.).
This entire loop occurs within seconds, ensuring the valve responds precisely to process fluctuations.
Pneumatic control valves are generally categorized into two motion types:
In this type, the actuator drives the valve plug up or down in a straight line. This configuration is common for globe valves due to their inherent linear flow characteristics.
Although less common in globe valve configurations, angular motion is typically used in ball or butterfly valves. However, rotary actuators can be adapted in specific globe valve applications when space is constrained or actuation torque is a priority.
Proper installation is essential for ensuring optimal valve performance and longevity. Below are key installation principles:
Install the valve at a suitable height from the ground to facilitate maintenance. Ensure enough space around the valve for disassembly, especially if equipped with positioners or manual handwheels.
Ideally, mount the valve on a horizontal pipeline with the valve body positioned vertically. Support brackets are recommended for stability. For installations on vertical pipelines, ensure additional support for large-diameter valves.
The valve should operate in environments with temperatures between -30°C and +60°C and relative humidity not exceeding 95%. Extreme conditions may affect pneumatic actuator performance.
To minimize turbulence and ensure accurate control, maintain a straight run of pipe at least 10 times the pipe diameter (10D) upstream and downstream of the valve.
When the valve’s diameter differs from the process pipeline, use reducers. For smaller valves, threaded connections may be acceptable. Always align the valve’s flow direction arrow with the actual fluid flow.
Include a bypass around the control valve. This allows for manual operation and maintenance without shutting down the entire system, ensuring continuous plant operation.
Before installing the valve, thoroughly flush the pipeline to remove debris such as welding slag, rust, or dirt. Foreign materials can damage the valve seat or plug, leading to performance issues.
Pneumatic globe control valves are known for their durability, but regular inspection and maintenance are still essential:
Check for Air Leaks: Regularly inspect actuator air lines and fittings.
Clean Filters and Air Supply Units: Prevent clogging and contamination of the actuator.
Monitor Positioner Calibration: Ensure accurate valve travel and positioning.
Inspect Valve Trim Components: Evaluate the plug and seat for erosion, especially in high-velocity or corrosive applications.
Test Safety Features: Periodically test the fail-safe function (air-fail open or close).
As industrial automation continues to evolve, pneumatic globe control valves are also seeing innovations in terms of materials, actuation technologies, and smart diagnostics:
Smart Valve Positioners: Featuring self-diagnosis, auto-calibration, and digital communication protocols like HART or Foundation Fieldbus.
Lightweight and Corrosion-Resistant Materials: Enhanced valve bodies using materials like stainless steel, duplex alloys, or ceramic coatings for improved performance in harsh environments.
Energy Efficiency Improvements: New-generation pneumatic systems with lower air consumption and optimized response times.
Integration with IIoT: Real-time monitoring of valve performance through cloud-based platforms is gaining traction in smart plants.
The pneumatic globe control valve is a cornerstone of industrial process automation, offering a robust combination of precise flow control, fast response time, and safe operation. Whether in chemical plants, refineries, power stations, or water treatment facilities, these valves continue to deliver reliable performance under demanding conditions.
As industries move toward smarter and more sustainable operations, innovations in pneumatic valve technology are ensuring that these components remain relevant, efficient, and integral to the process control ecosystem.
In summary, pneumatic globe control valves not only enhance operational efficiency but also ensure safer, more responsive, and cost-effective flow regulation across a broad spectrum of industrial applications.
