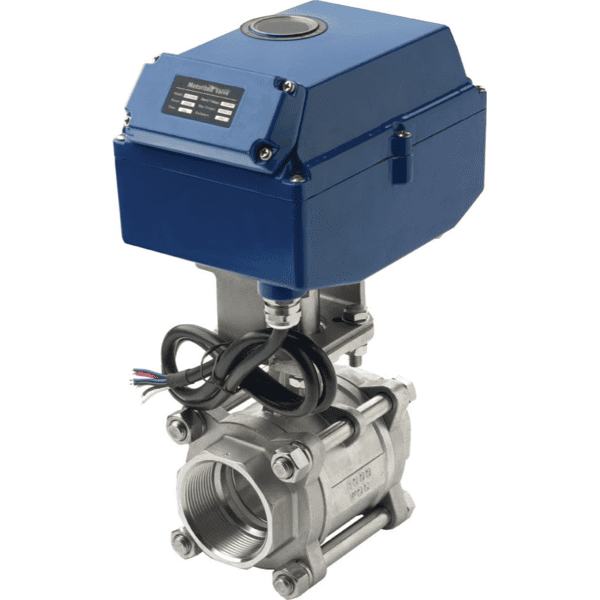

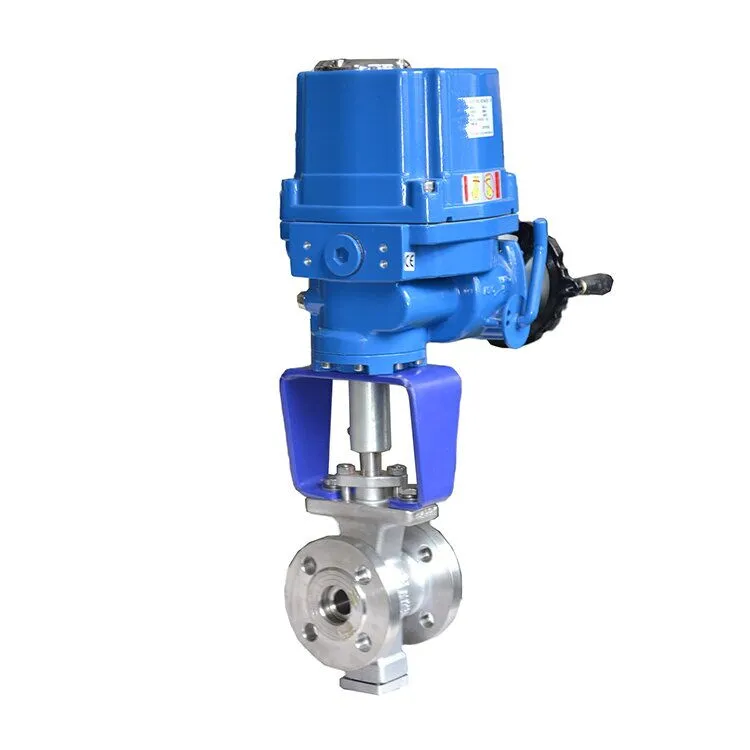

Electric ball valves are widely used in automated fluid control systems, particularly in industries such as petroleum refining, chemical processing, and water treatment. These valves consist of a rotary ball with a central bore, controlled by an electric actuator. When the actuator turns the ball so that the bore aligns with the flow path, media is allowed to pass through. When the bore is rotated perpendicular to the flow, the passage is blocked—effectively stopping flow.
Because of their precise control and low maintenance requirements, electric ball valves are essential components in modern industrial systems. However, like any mechanical device, they can experience operational issues that affect system efficiency, safety, and reliability.
This article explores some of the most common problems encountered with electric ball valves, explains their potential causes, and provides practical troubleshooting and maintenance tips to ensure optimal performance and system longevity.
Before diving into troubleshooting, it’s important to understand the context in which electric ball valves operate. Selecting and installing the correct valve model is not just about size—it involves a holistic evaluation of the system's requirements and the media being transported.
Key factors that influence valve performance and selection include:
Process Conditions: Temperature, pressure, and chemical compatibility all affect valve material choice and actuator specifications.
Flow Rate and Cycle Frequency: Higher flow rates and frequent actuation cycles require robust components and precise control mechanisms.
Installation Orientation: While vertical installation is typically straightforward, horizontal installation may require additional support brackets or structural reinforcements.
Seal Compatibility: Seals must be compatible with both the media and the process conditions. Poorly selected or installed seals can lead to leakage or valve failure.
Actuator Integration: Electric ball valves must be paired with actuators that match the torque requirements and control signals (e.g., on/off, modulating control). Mismatches here can lead to incomplete actuation or damage to the valve.
Once installed, the entire assembly should be thoroughly tested. This includes leak testing, verifying electrical connections, testing manual override mechanisms (if available), and ensuring that the valve actuates correctly in response to control commands.
Despite the advantages of electric ball valves, issues can still arise due to mechanical wear, electrical faults, or system misalignment. Here are the most common problems and how to diagnose them:
Symptoms:
Valve does not respond to control signals.
No rotation in the actuator.
Manual override fails to move the valve.
Possible Causes:
Power Supply Issues: Check whether the actuator is receiving the correct voltage and signal. A blown fuse, tripped breaker, or disconnected cable could be the root cause.
Signal Malfunction: If using a programmable logic controller (PLC) or other automated system, ensure the signal is reaching the actuator correctly.
Over-Torquing or Blockage: The valve might be physically obstructed by debris or deposits, or the torque setting might be insufficient for the current application.
Motor Failure or Gearbox Jam: Internal damage to the actuator, such as worn gears or a failed motor, can prevent movement.
Troubleshooting Tips:
Use a multimeter to verify voltage supply at the actuator terminals.
Test manual operation to isolate mechanical blockage from electrical issues.
Inspect actuator feedback signals (if equipped) for fault codes or status indicators.
Remove and inspect the valve to check for blockages inside the ball passage.
Symptoms:
Delayed response to commands.
Uneven movement or inconsistent speed during actuation.
Possible Causes:
Low Voltage or Poor Power Quality: Fluctuations in power can cause inconsistent actuator performance.
Dry or Worn Gears: Lack of lubrication can cause friction, slowing down movement.
Temperature Extremes: Cold temperatures can stiffen grease and restrict motion, while overheating can lead to component degradation.
Control Signal Noise: Unstable or incorrect control signals can result in partial or delayed actuation.
Troubleshooting Tips:
Verify steady voltage at the actuator during operation.
Lubricate all moving parts as per manufacturer recommendations.
Evaluate environmental conditions—consider installing heating or cooling accessories for extreme temperature locations.
Use a signal analyzer or oscilloscope to assess control signal integrity.
Symptoms:
Visible leakage around valve body or stem.
Pressure drop in the system.
Fluid accumulation near valve installation point.
Possible Causes:
Worn Seals or O-Rings: Over time, seals degrade due to pressure cycles, temperature changes, and media corrosion.
Improper Installation: Misaligned gaskets, overtightened flanges, or incompatible seal materials can compromise sealing.
Chemical Incompatibility: Media that reacts with valve or seal materials will eventually cause degradation and leakage.
Excessive Vibration: Mechanical stress from vibration can loosen fittings or damage seals.
Troubleshooting Tips:
Regularly inspect for wear on seals and replace as needed.
Ensure that seal materials match the process fluid (e.g., PTFE for corrosive chemicals).
Retorque flanged connections periodically to maintain sealing integrity.
Install vibration dampeners in high-vibration environments.
Symptoms:
Unusually hot actuator casing.
Burnt smell or discoloration.
Tripping of thermal protection circuits.
Possible Causes:
Over-Cycling: Frequent actuation cycles beyond the design duty cycle of the actuator can lead to heat buildup.
Improper Sizing: An actuator that is undersized for the torque load will struggle and overheat.
Electrical Faults: Short circuits or excessive current draw can cause internal overheating.
Ambient Temperature Effects: External heat sources or poor ventilation may exacerbate heating issues.
Troubleshooting Tips:
Check actuator specifications against actual operating frequency.
Monitor current draw during operation using a clamp meter.
Improve ventilation or relocate the actuator to a cooler location.
Use actuators with thermal protection and heat-resistant insulation.
Proactive maintenance is the key to ensuring long-term reliability and minimizing costly downtime. Here are essential practices for maintaining electric actuators and their associated valves:
Check for signs of wear such as cracked housings, frayed cables, and corroded connectors.
Ensure indicator lights and position indicators function correctly.
Apply appropriate grease to actuator gears, shafts, and pivot points.
Use only manufacturer-approved lubricants to prevent chemical incompatibility.
Inspect terminals and connectors for signs of corrosion or loosening.
Tighten connections as needed and use dielectric grease where appropriate.
Periodically actuate valves manually and via control system to confirm responsiveness.
Validate feedback signals and alarm systems.
Replace seals on a scheduled basis, even if they don’t show visible damage.
Stock spare seal kits for critical installations.
For modulating valves, ensure the actuator is properly calibrated to the control signal (e.g., 4–20mA or 0–10V).
Use diagnostic software when available to fine-tune actuator performance.
Install weatherproof enclosures (e.g., IP67-rated actuators) in outdoor or hazardous locations.
Consider using explosion-proof or flameproof actuators in petrochemical or gas applications.
Electric ball valves offer reliable and automated control for a wide variety of industrial processes. However, ensuring their optimal performance requires more than just installation—it demands ongoing monitoring, precise troubleshooting, and proactive maintenance.
By understanding the most common issues—such as failure to open/close, erratic movement, leakage, and overheating—plant operators and technicians can diagnose problems early and implement corrective actions before they escalate. Choosing the correct valve and actuator combination, combined with rigorous installation standards and scheduled maintenance, will go a long way in extending the lifespan of your electric valve systems.
Whether you’re operating in chemical processing, water treatment, oil refining, or power generation, electric ball valves are crucial to system safety and efficiency. With careful attention to the signs of malfunction and a strategic approach to repairs, you can ensure that your valves continue to deliver precise and reliable performance for years to come.
