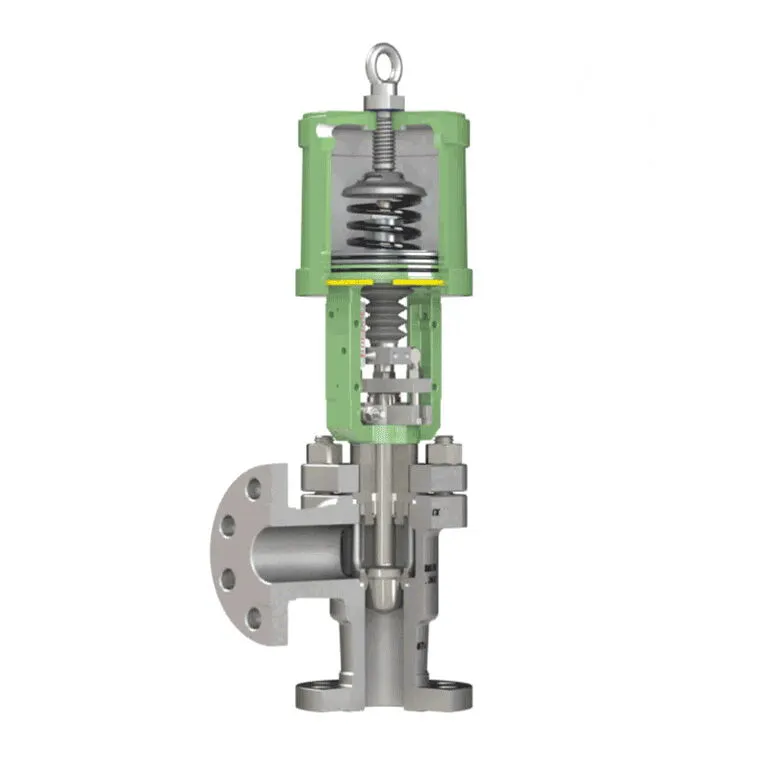

Angle control valves are designed with a 90-degree angle between the inlet and outlet ports, which allows for a compact installation footprint. Functioning in a manner akin to globe valves, they control fluid flow by employing a linear motion plug that interacts with a seat. These valves are particularly advantageous in scenarios where space is at a premium or when there is a need to redirect the flow direction. They provide dependable performance in throttling and shutting off fluid flow, making them an ideal choice for applications in industries such as HVAC, water treatment, and chemical processing.
Total 7 Records, 12 records per page
Angle control valves, also known as angle valves or angle body valves, are specialized control valves designed to regulate the flow of fluids or gases within industrial systems. Their distinctive angled body design offers a unique advantage, providing enhanced flow control, reduced turbulence, and minimized pressure drops. These characteristics make angle control valves indispensable in industries such as power generation, oil and gas production, chemical processing, and beyond.
The unique design of angle control valves contributes significantly to their superior performance:
Facilitates smooth fluid or gas flow, minimizing turbulence.
Reduces pressure drops, improving efficiency in high-pressure and high-flow systems.
Enhances the valve’s longevity by minimizing wear caused by pressure fluctuations and turbulence.
Ideal for handling high-pressure, high-temperature, and high-flow applications.
Widely used in industries such as petrochemicals, power plants, and industrial processing.
Can be manually operated or actuated using pneumatic, hydraulic, or electric systems.
Enables precise flow regulation to meet specific operational requirements.
Angle control valves come in two main types, each suited to different applications:
Feature a linear flow path with a cylindrical plug that moves up and down.
Provide precise control over the flow rate.
Commonly used in applications requiring high accuracy, such as in chemical injection systems.
Employ a circular flow path with a rotary disc or vane for flow regulation.
Preferred in applications where fast and consistent actuation is required.
The choice of materials is crucial to the valve's performance and durability. Common materials include:
Stainless Steel: Resistant to corrosion and ideal for harsh environments.
Bronze and Brass: Economical options for applications with moderate operating conditions.
Specialized Alloys: Used for handling extreme pressures, high temperatures, and erosive fluids or gases.
The angled body design of these valves not only ensures smoother flow characteristics but also incorporates advanced features such as:
Anti-Erosion Coatings: Protect internal components from wear caused by abrasive materials.
Contra-Vanes: Improve flow uniformity and further reduce turbulence.
The streamlined design reduces energy losses caused by turbulence and pressure drops, ensuring optimal performance.
Constructed from high-quality materials, these valves withstand extreme operational conditions, extending their service life.
Adaptable to a wide range of industries and applications, they offer reliability under varying operating pressures and temperatures.
Compatible with various actuation systems, making them suitable for automated and manual operations.
Regular maintenance ensures the longevity and optimal performance of angle control valves:
Periodic checks for wear and tear on internal components such as seals, diaphragms, and plugs.
Monitoring for leaks or unusual flow patterns.
Removal of debris or buildup inside the valve body to prevent blockages.
Using appropriate cleaning agents that do not damage valve materials.
Regular lubrication of moving parts, especially for manual and rotary-actuated valves, to reduce friction and prevent seizure.
Proactively replacing components like gaskets, seals, and diaphragms to avoid unexpected failures.
Angle control valves are integral to achieving precise and efficient flow control in industrial systems. Their unique angled design, coupled with versatile material options and robust construction, ensures reliable performance across a wide range of demanding applications. By selecting the right type, material, and actuation method, and adhering to proper maintenance protocols, businesses can maximize the operational lifespan and efficiency of these critical valves.
