Angle Seat Control Valve, SS 316, 3/4-16 Inch, CL 150-600 LB

Home Products Angle Control Valves Angle Seat Control Valve, SS 316, 3/4-16 Inch, CL 150-600 LB

Key Specifications / Features

Our Stainless Steel Angle Seat Control Valve, crafted from SS 316 and conforming to ASTM A351 CF8 standards, is available in sizes ranging from 3/4 inch to 16 inches. Rated for Class 150-600 LB, this valve features a threaded end and a fluorine ring balanced piston, ensuring exceptional performance and durability. Ideal for various industrial applications, it provides reliable control and long-lasting service.

Hits: 30
Categories: Angle Control Valves
Tags: ASTM A351 CF8 Angle Control Valve, SS 316 Control Valve, 3/4 Inch Angle Control Valve

Request a quote

Detail Information

Nominal Size: 3/4-16 Inch, DN20-DN400
Nominal Pressure: PN16-PN100, Class 150-600 LB
Control Type: Normally closed, Normally open, Double acting
Connection: Threaded(BSP, NPT), Welded, Flanged, Clamp

Material:
Body: ASTM A216 WCB, ASTM A217 WC6, ASTM A351 CF8, ASTM A351 CF8M
Bonnet: ASTM A216 WCB, ASTM A217 WC6, ASTM A351 CF8, ASTM A351 CF8M
Seat: Stainless Steel, SS 304, SS 316, Stellite
Plug Metal Sealing: SS 304, SS 316, Stellite
Plug Soft Sealing: SS 304, SS 316, Stellite
Cage: SS 304, SS 316
Guide Sleeve: SS 304, SS 316
Stem: SS 304, SS 316
Balanced Piston: Steel, Aluminium
Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible Graphite Ring

Control Fluid: Neutral gas, Air
Actuator Size: 50 mm, 63 mm, 80mm, 90 mm, 125 mm
Fluid temperature: -10ºC to 180ºC, 25ºC to 220ºC
Ambient temperature: -10ºC to 80ºC
Applicable Fluid: Water, Alcohol, Oil, Dye, Steam, Neutral gas or liquid, Organic solvent, Acid and lye

Products

Angle Control Valves

Back to List

ASTM A351 CF8M Angle Control Valve, 1-1/2 Inch, CL 150 LB

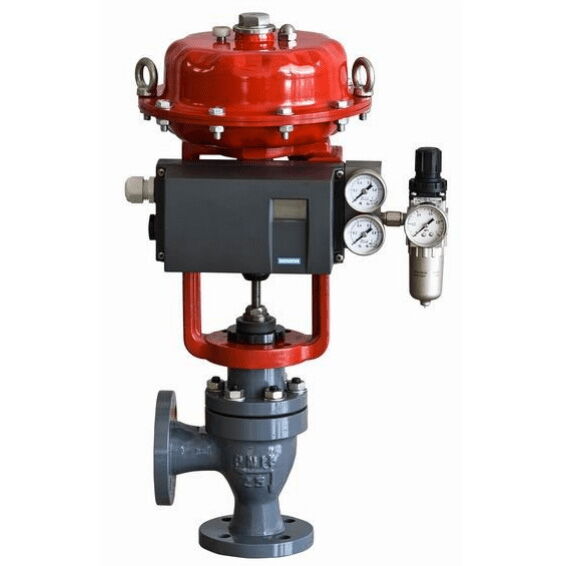

ASTM A217 WC6 Angle Control Valve, 3/4-16 Inch, 150-600 LB
