Common Problems in Electric Control Valves: Identification, Causes, and Solutions

Common Problems in Electric Control Valves: Identification, Causes, and Solutions

Common Problems in Electric Control Valves: Identification, Causes, and Solutions
On this page

Electric control valves play a crucial role in regulating fluid flow and pressure within industrial systems. These valves, which are controlled electronically, are integral in various applications such as chemical processing, HVAC systems, and power plants. However, like any mechanical component, they can experience issues that affect their performance. Below are some of the most common problems encountered in electric control valves, their causes, and recommended solutions.

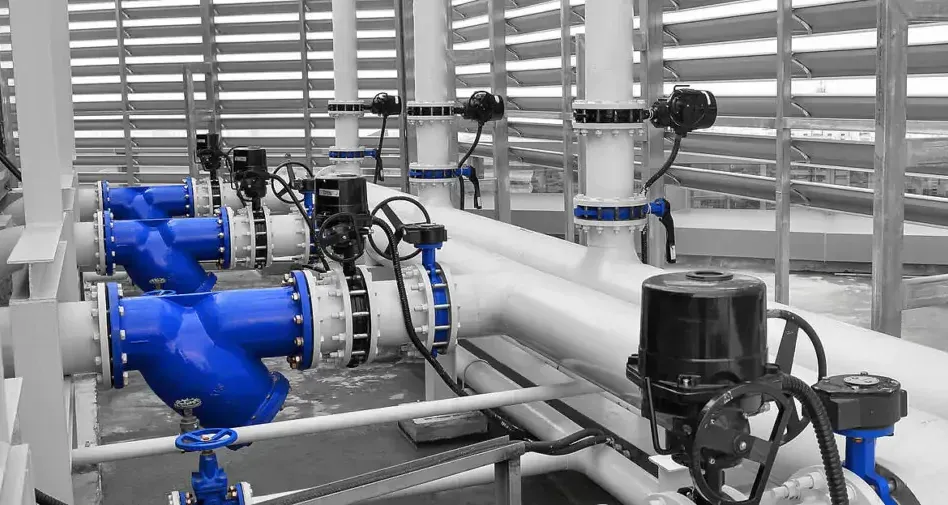

Electric Control Valve

1. Internal Leaking Control Valve

Internal leakage is one of the most common yet difficult-to-diagnose problems in control valves. A small amount of leakage is typically permissible as per manufacturer specifications, as the valve design includes spaces that allow for a minimal level of fluid passage. However, when the leakage surpasses these acceptable limits, it can lead to a range of operational issues.

Causes of Internal Leakage

Incorrect Calibration of Positioners

Positioners control the valve’s actuator and regulate the opening and closing. Incorrect calibration can cause a mismatch between the actuator and the valve’s actual position, leading to internal leakage.

Improper Actuator Setup

If actuators are improperly installed or set up, they might fail to seat the valve properly, resulting in leakage.

Wear and Tear of Internal Components

Over time, the valve's internal components, such as seals, diaphragms, and valve seats, may wear out, causing fluid to bypass the valve's sealing mechanism.

Faulty Distributed Control System (DCS) Configuration

A misconfigured DCS might send incorrect signals to the control valve, causing improper valve operation and internal leakage.

Solutions for Internal Leakage

Regular Maintenance

Periodic checks for wear and tear, especially on critical components like seals and diaphragms, can help detect potential internal leakage before it becomes a significant problem.

Proper Calibration

Ensuring that the valve positioner is correctly calibrated is essential for preventing internal leakage. Technicians should follow the manufacturer’s specifications for actuator and positioner setup.

Replacements and Repairs

If internal leakage exceeds allowable limits, the valve may need to be disassembled and repaired. This involves replacing damaged components such as seals, seats, or diaphragms.

2. External Leaking Control Valve

External leakage refers to the leakage of fluid from the external body of the valve, typically around the valve stem, seals, or actuator connections. This can be a serious issue as it leads to fluid loss, potential system inefficiency, and environmental hazards.

Causes of External Leakage

Worn or Damaged Seals

The valve stem or body seals are designed to prevent fluid from leaking out. Over time, seals degrade due to constant exposure to fluid pressure, temperature, and chemicals.

Loose or Improperly Installed Actuators

A poorly mounted actuator can create gaps or misalignments, causing leakage at connection points.

Corrosion and Erosion

Corrosion of the valve body or its components due to harsh operating conditions (e.g., high pressure, corrosive fluids) can lead to gaps or holes through which fluid escapes.

Solutions for External Leakage

Seal Replacement

If external leakage is due to worn seals, replacing them with new, high-quality seals that are compatible with the specific valve type and operating conditions is necessary.

Tightening and Reinstalling Actuators

Ensure actuators are properly installed and all connection points are tightened to prevent leakage.

Regular Inspection for Corrosion

Conduct routine inspections for signs of corrosion, especially in valves that handle corrosive fluids, and replace or repair affected components as needed.

3. Sticking Control Valve

A sticking valve is one that fails to move smoothly between its open and closed positions. This can lead to improper flow control and inconsistent process operation. A sticking valve often results in erratic valve performance, which can be hazardous in critical applications.

Causes of Valve Sticking

Dirty or Contaminated Valve Components

Dust, dirt, or other contaminants in the system can accumulate inside the valve, causing the internal parts to stick.

Corrosion

Corrosive fluids or materials can damage internal components, making it harder for the valve to move smoothly.

Mechanical Failure

Damaged parts like valve stems, actuators, or linkage mechanisms can lead to friction and cause the valve to stick.

Solutions for Sticking Control Valves

Cleaning and Maintenance

Regular cleaning and the use of filters to prevent dirt and debris from entering the system can significantly reduce the likelihood of sticking.

Lubrication

Proper lubrication of moving parts helps reduce friction and ensures smooth valve operation.

Replacement of Damaged Components

If corrosion or mechanical failure is identified, the damaged parts should be replaced to restore proper functionality.

4. Change in Pressure in Hydraulic Control Valve

Pressure changes in a hydraulic control valve can result in irregular flow rates, inconsistent operation, or failure to control pressure within set limits. This issue is particularly critical in systems that rely on precise control, such as hydraulic presses or aircraft systems.

Causes of Pressure Changes

Blockages in the System

Blockages caused by dirt, debris, or sediment in the pipeline can impede the flow of fluid, resulting in pressure drops or irregular pressure levels.

Valve Seat Wear

Over time, valve seats can wear out, leading to poor sealing and a subsequent drop in pressure.

Damaged Pressure Relief Valve

A malfunctioning pressure relief valve can lead to excessive pressure buildup or an inability to maintain stable pressure levels.

Solutions for Pressure Fluctuations

System Flushing

Regular system flushing helps prevent blockages from forming and ensures that fluid flows freely through the valve and pipes.

Replacing Worn Seats

Worn valve seats should be replaced to maintain the valve’s sealing capabilities and restore pressure consistency.

Pressure Relief Valve Maintenance

Ensure that the pressure relief valve is regularly checked, cleaned, and replaced as needed to maintain proper pressure control.

5. Noisy Control Valve

A noisy control valve produces unwanted sounds such as whistling, hammering, or vibration during operation. This issue not only indicates a problem with the valve but can also lead to additional system damage over time.

Causes of Noisy Control Valves

High Flow Velocity

Excessively high flow rates can cause turbulence within the valve, leading to noise generation.

Cavitation

Cavitation occurs when vapor bubbles form inside the valve due to sudden pressure drops. These bubbles collapse when the pressure increases again, producing noise and potentially damaging the valve.

Improper Valve Sizing

If a valve is not properly sized for the system, it may operate under conditions that cause excessive noise, such as rapid opening and closing.

Solutions for Noisy Control Valves

Reducing Flow Velocity

By adjusting the system’s flow rate or installing a valve with a larger bore, noise can be minimized.

Cavitation Prevention

Installing anti-cavitation trim or redesigning the valve to prevent pressure drops that cause cavitation can help eliminate the noise.

Proper Sizing

Ensure that the control valve is correctly sized for the application, reducing the likelihood of rapid and erratic movement that causes noise.

6. Sudden Failure of Control Valve

Sudden failure of a control valve can be catastrophic, leading to a loss of system control, potential damage to the entire system, or even safety hazards. Sudden failure typically indicates an underlying issue that has gone unnoticed or unresolved for some time.

Causes of Sudden Control Valve Failure

Lack of Maintenance

Failure to perform regular inspections and maintenance can lead to undetected wear, which may result in sudden valve failure.

Power or Signal Loss

Electric control valves depend on power and control signals. Any interruption in the power supply or signal communication can cause a complete valve failure.

Severe Mechanical Damage

Sudden and severe mechanical damage to internal components, such as the actuator, spring, or valve body, can lead to complete failure.

Solutions for Preventing Sudden Failure

Regular Inspection and Preventative Maintenance

Regularly checking components, recalibrating actuators, and replacing worn parts helps prevent sudden failure.

Backup Power Systems

Installing backup power systems, such as emergency batteries or uninterruptible power supplies (UPS), ensures that power loss does not lead to valve failure.

Quality Control and Monitoring

Continuous monitoring of system performance through sensors can help detect signs of potential valve failure, allowing for early intervention.

Conclusion

Electric control valves are essential components in many industrial systems, and addressing common issues such as internal and external leakage, sticking, pressure changes, noise, and sudden failure is crucial to maintaining system efficiency and safety. Regular maintenance, proper calibration, and timely component replacements are key to ensuring these valves perform optimally and reliably. By identifying and resolving problems early, operators can prevent costly downtime and enhance the overall performance of their systems.
