Hand-Operated Globe Control Valves: A Comprehensive Overview

On this page

A hand-operated globe control valve is an essential component in many industrial systems, offering precise manual control over the flow of liquids, gases, and steam. These valves are widely used in applications where accuracy and reliability in flow regulation are crucial, such as in chemical processing, power generation, water treatment, and HVAC systems. In this article, we will explore how hand-operated globe control valves work, their advantages, and the materials commonly used in their construction.

Understanding How Hand-Operated Globe Control Valves Work

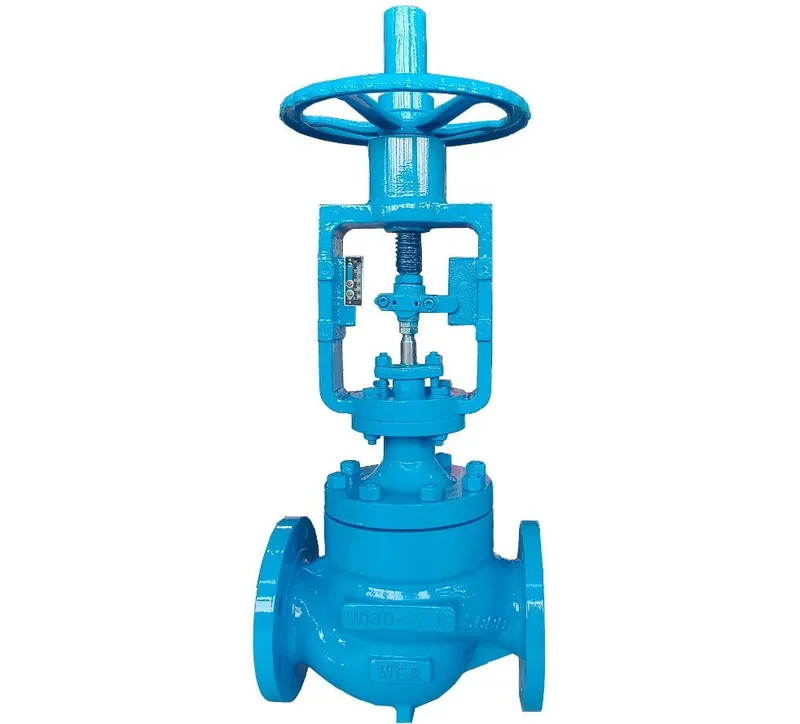

The hand-operated globe control valve gets its name from the shape of its body, which resembles a globe or spherical shape. This design allows for smooth fluid flow regulation through the valve. The key component in a globe valve is the movable plug or disc, which serves to either restrict or allow the flow of fluid. The plug or disc is mounted on a stem, and its position is adjusted by turning a handwheel.

When the handwheel is turned, it rotates the stem, which moves the plug up or down within the valve body. By adjusting the position of the plug, the operator can control the size of the opening in the valve and, consequently, regulate the flow rate of the fluid or gas passing through. This design allows for fine adjustments in the flow, making hand-operated globe control valves ideal for applications requiring precise flow control.

One of the key features of globe valves is their ability to provide a linear flow characteristic, meaning that the flow rate changes in a predictable, proportional manner as the valve is adjusted. This characteristic is particularly important in applications where maintaining a steady flow or pressure is essential, such as in the regulation of steam or water flow in industrial systems.

Key Benefits of Hand-Operated Globe Control Valves

Hand-operated globe control valves offer several advantages over other types of control valves, especially in situations where manual operation and precise flow control are required. Here are some of the key benefits:

Precise Flow Control

One of the primary advantages of hand-operated globe control valves is their ability to provide precise flow regulation. The smooth, incremental adjustments made with the handwheel allow operators to make small, accurate changes to the flow rate. This is crucial in many industrial processes where the ability to maintain specific flow conditions can directly impact the quality of the product or the efficiency of the process.

High Reliability

Hand-operated globe control valves are known for their durability and reliability. Unlike some automated control valves, which may be vulnerable to electrical or mechanical failures, manual globe valves are less likely to experience issues related to power outages or control system malfunctions. This makes them particularly valuable in critical systems where continuous operation is essential.

Easy Maintenance

Another benefit of hand-operated globe control valves is that they are relatively easy to maintain. Their simple design and mechanical operation mean that they have fewer components that could wear out or fail. In the event of a failure, repairs are typically straightforward and can be completed quickly, reducing downtime and maintenance costs.

Additionally, the manual operation of these valves means that they can continue to function even if there are issues with automated control systems.

Versatility in Applications

Hand-operated globe control valves are versatile and can be used in a wide range of industrial applications. They are commonly found in systems that handle steam, hot water, gases, and chemicals. The ability to adjust the flow of fluids precisely makes them suitable for applications ranging from regulating the temperature and pressure in a boiler system to controlling the flow of chemicals in a manufacturing plant.

Simple Operation

While automated valves can be complex and require specialized knowledge to operate, hand-operated globe control valves are straightforward to use. Operators simply turn the handwheel to adjust the valve, making them user-friendly and ideal for situations where ease of operation is a priority.

Common Materials Used in Hand-Operated Globe Control Valves

The materials used in the construction of hand-operated globe control valves depend on the specific requirements of the application, such as the type of fluid being controlled, the temperature and pressure conditions, and the potential for corrosion. Some of the most common materials used include:

Carbon Steel

Carbon steel is a popular material for globe valves because it is strong, durable, and relatively cost-effective. It is often used in systems where the fluid is not highly corrosive and where the temperature and pressure are within a moderate range. Carbon steel valves are commonly found in water treatment, HVAC, and low-pressure steam systems.

Stainless Steel

Stainless steel is a corrosion-resistant material that is ideal for applications where the fluid or gas being controlled is prone to causing corrosion or where high temperatures are involved. Stainless steel hand-operated globe valves are commonly used in chemical processing, food and beverage production, pharmaceuticals, and oil and gas industries.

Cast Iron

Cast iron is another material used in the manufacture of globe valves, particularly for applications involving low to medium pressure and temperature. Cast iron valves are often used in water distribution systems and other industrial applications where the valve is not exposed to corrosive fluids or extreme conditions.

Brass

Brass is used for smaller, lighter globe valves, particularly in applications where the fluid being controlled is non-corrosive and the valve does not need to handle high pressures. Brass valves are often found in domestic water systems, heating applications, and some HVAC systems.

Alloy Materials

For more specialized applications, globe valves may be made from exotic alloys such as Hastelloy, Monel, or titanium. These materials are used in highly corrosive environments, such as in the chemical processing or marine industries, where the valve must withstand aggressive fluids or extreme conditions.

Applications of Hand-Operated Globe Control Valves

Hand-operated globe control valves are employed across a wide range of industries, thanks to their ability to deliver precise control in various fluid and gas systems. Some of the most common applications include:

Steam Systems

Globe valves are often used to regulate steam flow in power plants and industrial steam systems, where precise temperature and pressure control are critical.

Chemical Processing

In chemical manufacturing, these valves help control the flow of corrosive chemicals in pipes and reactors.

Water Treatment

Globe control valves are used in water treatment plants to regulate water flow and ensure the proper treatment of water before distribution.

HVAC Systems

In heating, ventilation, and air conditioning systems, hand-operated globe valves control the flow of hot water or steam through radiators or heating coils.

Oil & Gas Industry

In the oil and gas sector, globe valves regulate the flow of oil, gas, and steam in pipelines, refineries, and offshore platforms.

Conclusion

Hand-operated globe control valves are a crucial component in many industrial processes that require precise control over the flow of fluids and gases. Their simple yet effective design, combined with the ability to make fine adjustments, makes them an ideal choice for applications where reliability and accuracy are paramount. By understanding how these valves work, their benefits, and the materials used in their construction, engineers and operators can make informed decisions when selecting the right control valves for their specific needs. Whether in chemical processing, steam regulation, or water treatment, hand-operated globe control valves continue to play a vital role in ensuring the smooth and efficient operation of industrial systems.
