When choosing the right
control valve, butterfly valves are often considered as an alternative as a cost-effective option. However, whether to choose a butterfly valve as a control valve requires a combination of factors, including the type of application, control accuracy requirements, and project budget. The main advantages of butterfly valves are their lower cost and compact design, making them excellent in applications where budgets are limited or space is limited. They are often less expensive to manufacture and install than other types of control valves, such as globe or ball valves, so butterfly valves can provide a cost-effective solution in many applications. However, the flow control characteristics of butterfly valves are different from
other control valves, especially in applications requiring high-precision flow regulation, and their performance may not be as good as other high-precision valves.
Your application type directly affects the type of
control valve selected. For example, the demand for control valves in chemical, pharmaceutical, food processing and other industries varies greatly. In some demanding applications where precise control of flow, temperature or pressure is required, more precise control valves may be required. In contrast, butterfly control valves, by their nature, may not be suitable for applications that require very fine adjustment.
Control requirements relate to the accuracy of flow regulation. Butterfly valves are designed so that the flow rate changes less when the opening is small, and the flow rate increases sharply after the opening reaches a certain level, which can lead to inaccurate control. In situations where precise flow regulation is required, such as in high-precision manufacturing processes, the use of butterfly valves may not meet the requirements, so it may be necessary to choose a valve that provides more precise flow control, such as a stop valve or a regulator valve.
Budget is one of the important factors in determining the type of valve. Because of their simpler structure and manufacturing process, butterfly valves are generally more economical than other types of control valves. If the project budget is limited, choosing butterfly valves can effectively control costs. However, low-cost valves may not provide the best performance in some respects, so you need to weigh the relationship between cost and performance when choosing.

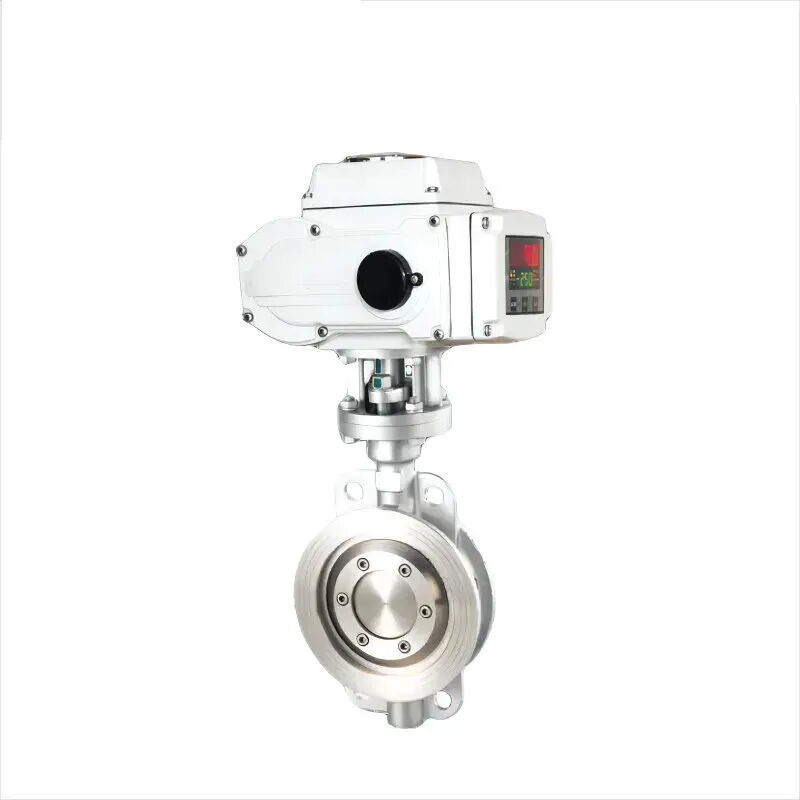

The initial purchase and installation costs of
butterfly control valves are low, mainly due to their simple design and construction. Because the manufacturing process and material costs of butterfly control valves are generally lower than other control valve types, this makes butterfly control valves an attractive option for projects on a tight budget. In addition, due to the lighter weight of the butterfly valve, the need for brackets and supports during installation is also relatively reduced, which further reduces the total cost.
Butterfly control valves are designed to be small in size and weight, which is especially important for space-constrained applications. For example, in piping systems, butterfly control valves can be used to regulate flow without taking up too much space. This compact design makes butterfly valves ideal for scenarios where installation space needs to be saved, such as small equipment or industrial environments with limited space.
Easy to Maintain
The structure of the butterfly valve is relatively simple, and there are fewer parts, so the maintenance work is usually easier. This simple design not only makes it easy to repair and replace parts, but also reduces downtime, thereby improving the overall efficiency of the system. In daily operation, the maintenance cost and workload of the butterfly control valve are relatively low, which is very important to maintain the long-term stable operation of the equipment.
Flow characteristics of butterfly control valve Before the valve opening reaches 40 degrees, the flow changes less, and the flow rate increases sharply between 40 degrees and 80 degrees. This characteristic makes butterfly valves poor in applications where precise flow regulation is required. For example, in process controls that require careful regulation of flow or pressure, butterfly valves may not provide sufficient accuracy, so a valve type with higher control accuracy needs to be selected.
The recovery rate of the butterfly control valve is usually low, which means that the butterfly valve may experience cavitation problems during throttling. This phenomenon can cause a permanent pressure drop inside the valve, affecting the normal flow of fluid and possibly leading to valve damage. For some applications that require efficient flow control, cavitation can be a serious obstacle, so the suitability of butterfly valves for specific applications needs to be carefully evaluated.
At low flow rate, butterfly control valve is difficult to achieve repeated accurate control. This is because the flow control of the butterfly valve is unstable when it is small, especially when the flow is low. If the application requires stable and repeatable flow regulation, butterfly valves may not be able to meet this demand, and other types of control valves may be considered.
In environments where space saving is required, butterfly control valves are well suited to meet the needs due to their compact design and small size. It can provide effective flow control in limited Spaces and is suitable for industrial equipment and piping systems with limited space.
Butterfly control valves provide relatively stable flow regulation, and their pressure loss is usually lower than that of a stop valve. Butterfly valves are a good choice in applications where flow regulation is required but where extreme accuracy is not required.
Reduce Maintenance Requirements and Leakage Risk
Because of the simple structure of the butterfly valve, the maintenance needs are less, and the risk of leakage can be effectively reduced. This enables butterfly control valves to perform well in applications requiring low maintenance and high safety, providing reliable operating performance and reducing overall maintenance costs.
In summary, butterfly valves can be used as control valves in specific applications, but their suitability needs to be evaluated according to specific requirements. If your application does not require extremely high control accuracy and your budget is limited, butterfly valves may be an economical and practical option. However, in situations where fine flow regulation is required or where high precision control is required, other types of control valves may need to be considered. Consulting professionals and conducting detailed requirements analysis can help you select the most suitable valve type to optimize project cost and performance.
