Pneumatic butterfly valves have become essential components in various industrial applications due to their reliable performance, compact structure, and cost-effective design. These valves are widely used across sectors such as chemical processing, paper manufacturing, mining, petroleum, and pharmaceuticals. Their popularity is particularly evident in low-pressure, large- and medium-diameter pipelines, where their lightweight and efficient design makes them more economical than other types of valves.

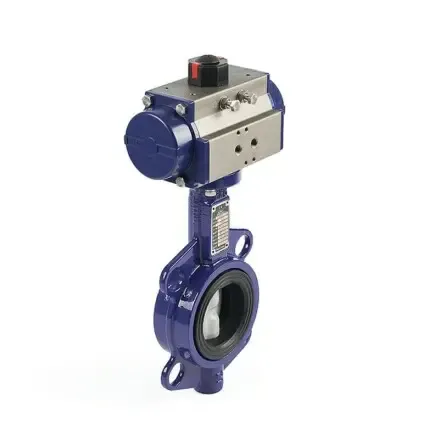

As demand for automated systems continues to grow, pneumatic butterfly valves have become increasingly prevalent in pneumatic control systems. They consist of a butterfly valve body and a pneumatic actuator, enabling rapid on-off control using compressed air. Their widespread adoption is a testament to their efficiency and reliability. However, like any mechanical device, proper maintenance is key to ensuring their long-term performance and avoiding costly downtime.
This article provides an in-depth look at the operation, common failure modes, and best maintenance practices for pneumatic butterfly valves, offering valuable insights for engineers, operators, and maintenance personnel.

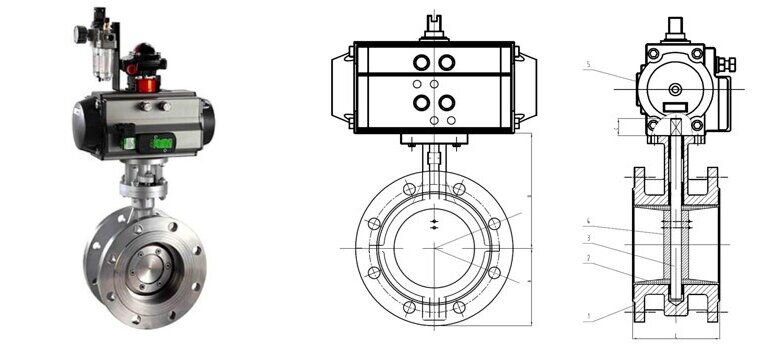

A pneumatic butterfly valve operates by rotating a disc (the "butterfly") within the flow path of the pipeline. This disc is attached to a stem, which is actuated by a pneumatic mechanism. When compressed air is supplied to the actuator, it moves the stem and rotates the disc either perpendicular or parallel to the flow, thereby controlling the passage of the medium.
Pneumatic butterfly valves are primarily used as on-off valves but can also be adapted for throttling applications. They come in various types, including:
Pneumatic stainless steel butterfly valves
Pneumatic hard-sealing butterfly valves
Pneumatic soft-sealing butterfly valves
Pneumatic carbon steel butterfly valves
Pneumatic cast iron butterfly valves
Their compact size, simple structure, and cost-effectiveness make them ideal for applications where space and weight are critical considerations, such as overhead pipelines, underground installations, and remote-control systems. The integration with solenoid valves allows for easy two-position operation, while optional positioners can provide modulating control.
Despite their robust design, pneumatic butterfly valves are subject to wear and potential malfunction. Recognizing the early signs of failure is essential for preventing system disruptions and ensuring operational efficiency.
One of the most common issues occurs when the butterfly disc becomes stuck due to impurities or debris in the pipeline. Foreign materials such as dust, rust particles, or sludge can accumulate around the valve seat or shaft, preventing smooth movement.
Over time, seals—especially soft seals made from rubber or PTFE—may degrade due to exposure to high pressure, high temperatures, or chemical attack. Worn seals result in internal leakage, reducing the valve’s ability to fully shut off flow and compromising process control.
The pneumatic actuator relies on a consistent air supply to function. Insufficient air pressure, worn-out seals within the actuator, or internal component damage can lead to slow, erratic, or failed valve movement.
In environments with corrosive media or harsh weather conditions, the valve body and internal parts may suffer from corrosion. Over time, this weakens the valve structure, leading to leakage or mechanical failure.
Using the valve to throttle flow in situations where it is not designed to do so—such as in abrasive or high-velocity systems—can damage the sealing surface and accelerate disc or seat erosion.
Proper installation is the first step toward ensuring the efficient operation of a pneumatic butterfly valve. Follow these best practices:
Orientation: Pneumatic butterfly valves can generally be installed at any angle; however, for ease of maintenance and operation, a horizontal installation is recommended. Ensure adequate space around the valve for actuator and control access.
Flow Direction: For shut-off applications, the valve should be installed such that the medium flows upward against the closed disc. This helps enhance the sealing effect.
Clean Pipeline: Before installation, flush the pipeline to remove any debris, welding slag, or dirt that might damage the valve seat or disc.
Proper Alignment: Misaligned flanges or uneven tightening of bolts can cause valve body deformation and leakage. Use gaskets as recommended by the manufacturer and tighten bolts in a crisscross pattern.
Avoid Over-Tightening: Excessive force during installation can damage the valve seat and reduce its sealing capability.
Pneumatic butterfly valves, when maintained properly, can deliver reliable service over extended periods. Here's a structured approach to their maintenance:
Perform regular visual checks to ensure that:
There are no air leaks in the actuator system.
The valve body is free of visible corrosion or mechanical damage.
The mounting bolts are securely fastened.
The valve opens and closes fully during operation.
While many modern pneumatic actuators are designed to be maintenance-free, periodic lubrication of moving parts—especially in dusty or humid environments—can extend their lifespan. Use lubricants recommended by the valve manufacturer.
Remove dirt, dust, and corrosive residues from the valve’s external surfaces. If the valve operates in a chemically aggressive environment, clean more frequently to prevent corrosion.
Inspect the sealing components periodically for wear, cracking, or hardening. Replace damaged seals immediately to prevent leakage. Always use original spare parts or components that meet manufacturer specifications.
Inspect the pneumatic actuator for:
Air supply pressure and flow rate.
Condition of air lines and fittings.
Response speed of valve movement.
Position feedback signals (if applicable).
Replace worn-out diaphragms, springs, or seals within the actuator as necessary.
After performing any repair or replacement, test the valve thoroughly. Reconnect the air supply and simulate open/close cycles to confirm normal operation. Check for air or fluid leaks, response time, and alignment.
To ensure optimal performance, observe the following usage guidelines:
Avoid Partial Open Operation: Pneumatic butterfly valves are primarily on-off devices. Using them for throttling flow, particularly with hard-seal configurations, can damage the disc edge or seat.
Use Handwheel for Manual Override: If a manual override is provided, always use the handwheel. Do not force the valve open or closed using levers or external tools.
Emergency Shutoff: In the event of abnormal operation, isolate the air source and the fluid medium before attempting inspection or disassembly.
Storage Precautions: If the valve is not in use for an extended period:
Store in a clean, dry, and ventilated area.
Block both ends of the valve to prevent contamination.
Periodically rotate the disc to prevent sticking.
Maintenance activities must be carried out with full attention to safety:
Depressurize the Line: Ensure that both air and process fluid pressure are fully relieved before opening the valve.
Lockout/Tagout: Follow standard lockout/tagout procedures to avoid accidental actuation during maintenance.
Wear Protective Equipment: Depending on the process fluid, appropriate gloves, eye protection, and clothing may be necessary.
Use Correct Tools: Only use tools specified or approved for use with valve components to avoid damage.
Despite best efforts at maintenance, some valves eventually reach the end of their operational life. Consider replacing the valve if:
There are frequent leaks despite seal replacements.
The disc or seat is excessively worn or corroded.
The actuator repeatedly fails or shows poor response.
Valve operation causes vibration or noise.
It becomes difficult to find replacement parts due to obsolescence.
Pneumatic butterfly valves are indispensable in modern industrial fluid control systems due to their efficiency, cost-effectiveness, and ease of automation. However, their performance and longevity rely heavily on correct installation, proper use, and regular maintenance.
By understanding the common causes of failure and implementing structured maintenance routines, operators can ensure the reliable performance of pneumatic butterfly valves for years to come. Whether in chemical processing plants or water treatment facilities, a well-maintained pneumatic valve not only enhances operational safety but also reduces costs and increases productivity.
