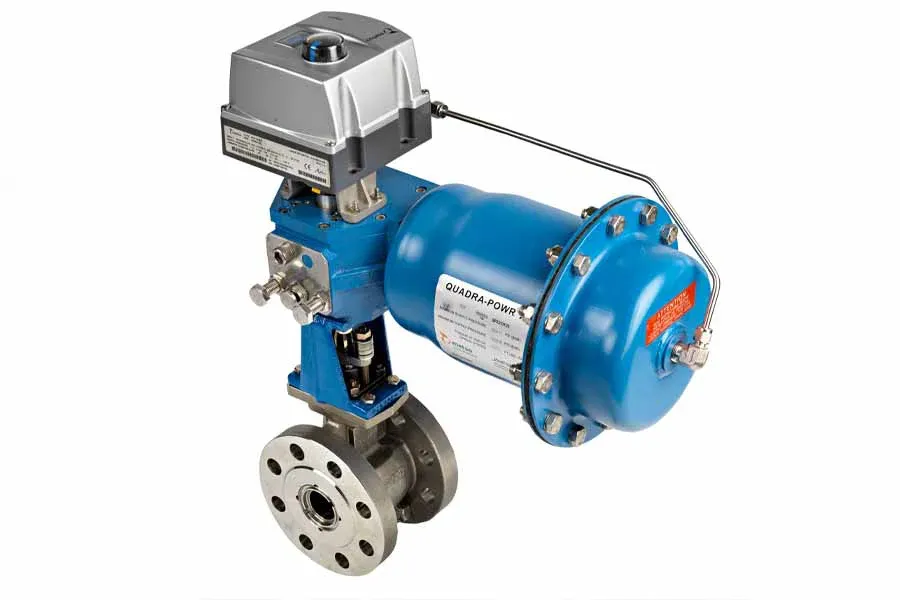

Introduction

A rotary control valve is a crucial component in a wide array of industrial systems, designed to regulate the flow of fluids by utilizing rotational motion. Unlike linear control valves, which rely on straight-line movement to control flow, rotary control valves modulate the flow of liquids or gases by turning a disk or cylindrical element within the valve body. This unique operating principle allows for precise control over fluid flow, enabling more efficient and accurate throttling. Rotary control valves are widely used across various industries due to their compact design, excellent sealing properties, and ability to handle extreme operational conditions such as high pressure and temperature. These characteristics make them indispensable in critical sectors like oil and gas, chemical processing, water treatment, HVAC (heating, ventilation, and air conditioning) systems, and power generation.



Rotary Motion Valve

What is a Rotary Control Valve?

A rotary control valve is designed to regulate the flow of fluid through a system by rotating a plug, ball, or other control element within the valve body. This rotational motion either opens or closes the valve or modulates it to maintain a precise flow rate. Rotary control valves are typically favored over their linear counterparts in applications that require high flow capacity, reduced erosion, and consistent performance under pressure and temperature extremes.

Key components of a rotary control valve include the actuator, the control element (which could be a ball, butterfly, or plug), and the valve body. The actuator is responsible for initiating the rotational movement, while the control element performs the task of modulating the flow. The valve body serves as the housing, containing all the internal components and providing a sealed environment to prevent fluid leakage.

Rotary control valves come in a variety of designs and materials, depending on the specific requirements of the application, such as fluid type, pressure, and temperature. The simplicity and durability of the design make them an ideal choice in both high-demand and harsh environments.

Key Components of a Rotary Control Valve

Valve Body

The valve body serves as the main housing for the valve assembly. It provides the necessary structural support and contains the flow path for the fluid. It is typically constructed from materials like stainless steel, carbon steel, or alloys designed to withstand the pressures and temperatures encountered in specific industrial settings.

Control Element (Plug, Ball, or Butterfly)

The control element, often referred to as the valve plug or disk, is the moving part inside the valve. It rotates to either open, close, or partially modulate the flow of fluid through the valve. Depending on the type of rotary valve, this control element can be a ball (in ball valves), a plug (in globe-style rotary valves), or a disc (in butterfly valves).

Stem

The stem is a critical component that connects the actuator to the control element. It is responsible for transferring the rotational motion from the actuator to the valve plug or ball, allowing for the modulation of fluid flow.

Actuator

The actuator is responsible for driving the rotational movement of the valve stem and control element. Actuators can be manual, pneumatic, hydraulic, or electric, and they enable operators to remotely control the valve. The actuator’s role is to provide the necessary torque to rotate the valve's plug or ball as required by the system's demands.

Positioner

The positioner is a device used in conjunction with the actuator to ensure that the valve’s control element is positioned correctly. It monitors the actual position of the plug or ball and adjusts the actuator to ensure that the desired flow rate is maintained. The positioner plays a crucial role in providing precise control and optimizing the valve’s performance.

How Rotary Control Valves Operate

The operation of a rotary control valve is relatively straightforward, but its design and precision allow for excellent performance in various industrial applications. When an actuator applies rotational force to the valve stem, the connected control element (plug, ball, or butterfly) rotates, thereby controlling the passage of fluid. The flow rate can be adjusted by modulating the angle of rotation, providing a wide range of control. Rotary control valves are often used in situations where continuous and precise flow regulation is necessary, such as in chemical reactions, steam distribution, and pressure control systems.

For example, in a butterfly valve, the disc rotates within the body to either block or allow fluid flow through the valve. The greater the rotation, the more fluid is allowed to pass through. This provides a more accurate control of flow rates compared to linear valves, where the flow characteristic might not be as predictable or linear.

Advantages of Rotary Control Valves

Rotary control valves offer numerous advantages that make them the preferred choice in a variety of industrial systems:

Precise Flow Control

The rotational movement of the valve control element allows for more precise flow regulation than linear valves. The flow characteristic is often more linear, which means it is easier to predict and control the flow of fluids through the system.

High Flow Capacity

Rotary control valves are known for their high flow capacity, meaning they can handle larger volumes of fluid with less effort compared to their linear counterparts. This makes them ideal for systems requiring the control of large amounts of fluid, such as in oil and gas pipelines or power plants.

Reduced Erosion

Rotary control valves are less susceptible to erosion from abrasive materials compared to linear valves, thanks to the reduced contact between the moving parts and the flow medium. This makes them suitable for use with aggressive media such as slurry, chemicals, and particulate-laden fluids.

Compact Design

Rotary control valves tend to have a more compact design than their linear counterparts, saving space in installations where space constraints are a concern. Their smaller size makes them easier to install and maintain in complex piping systems.

Durability

Rotary valves are built to withstand high pressures, temperatures, and even abrasive or corrosive environments. This makes them ideal for use in industries such as petrochemicals, power generation, and heavy manufacturing, where operational conditions can be extreme.

Flexibility

Rotary control valves can be customized with various actuators, materials, and valve designs to meet the specific needs of different applications. This flexibility allows them to be used across a wide range of industries and fluid types.

Applications of Rotary Control Valves

Rotary control valves are employed in a diverse range of industries and applications. Their ability to provide accurate flow regulation and their adaptability to various conditions make them versatile across many sectors. Some of the primary industries and applications where rotary control valves are commonly used include:

Oil and Gas

Rotary control valves are widely used in oil and gas refineries, natural gas processing plants, and pipeline systems. They regulate the flow of crude oil, natural gas, and other hydrocarbons, ensuring optimal performance in refining processes, distribution systems, and pressure regulation.

Power Generation

In power plants, rotary control valves are crucial in regulating steam, water, and other fluid systems. They help control pressure, temperature, and flow rates, which are critical to the safe and efficient operation of power generation equipment, including turbines and cooling systems.

Chemical Processing

Chemical manufacturing processes often require precise control of reactants and flow rates to ensure product quality and safety. Rotary control valves are used to regulate the flow of chemicals, gases, and other fluids in reactors, pipelines, and mixing chambers.

Water Treatment

In municipal and industrial water treatment plants, rotary control valves are employed to control the flow of water and chemicals used in purification, filtration, and disinfection processes. Their accuracy ensures consistent water quality and system efficiency.

HVAC Systems

In large heating, ventilation, and air conditioning systems, rotary control valves regulate the flow of fluids in heating and cooling circuits. These valves are essential in maintaining desired temperature and airflow levels in commercial and industrial buildings.

Pharmaceuticals and Biotechnology: Rotary control valves are used in the pharmaceutical industry to precisely control the flow of liquids and gases during the manufacturing of drugs and bioproducts. Their accuracy is vital for maintaining consistent quality and adhering to strict regulatory standards.

Conclusion

Rotary control valves are indispensable in industries where precise, high-capacity flow regulation is crucial. Their robust design, ability to handle high pressures and temperatures, and suitability for diverse fluid types make them essential in applications ranging from oil and gas processing to water treatment and power generation. By understanding the components, operation, and advantages of rotary control valves, industries can make informed decisions on selecting the right valve for their specific needs, ensuring improved system efficiency, safety, and performance.

As a leading valve manufacturer in China, we specialize in producing high-quality rotary control valves that meet global standards. Our products are engineered to offer superior performance, reliability, and longevity, ensuring that your operations continue to run smoothly in the most demanding environments.
