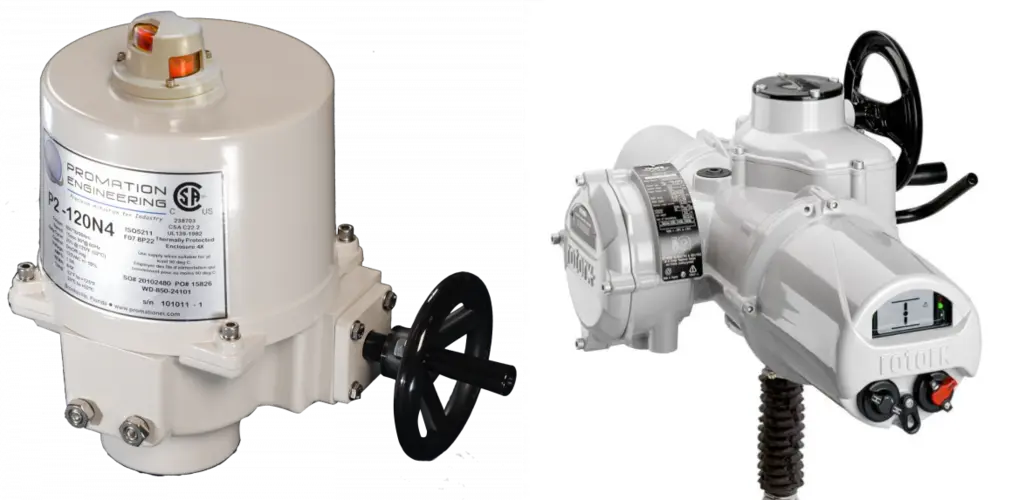

Understanding the Key Differences Between Quarter-Turn and Multi-Turn Actuators

Introduction to Valve Actuators

In industrial automation and fluid control systems, valve actuators serve as the critical link between control systems and mechanical valves. These devices convert energy (electric, pneumatic, or hydraulic) into mechanical motion to open, close, or modulate valves. Among the various types of actuators, quarter-turn and multi-turn actuators are the most widely used, each designed for specific valve operations.

Choosing the right actuator is essential for ensuring efficiency, safety, and longevity in industrial processes. This in-depth guide explores the design, functionality, applications, and key differences between quarter-turn and multi-turn actuators, helping engineers, plant managers, and procurement specialists make informed decisions.

What is a Quarter-Turn Actuator?

A quarter-turn actuator is a rotary actuator that moves a valve 90 degrees (a quarter turn) to fully open or close it. These actuators are commonly paired with ball valves, butterfly valves, and plug valves, which require only a partial rotation for operation.

Key Features of Quarter-Turn Actuators

✔ 90-Degree Operation – Moves the valve from fully open to fully closed in a quarter turn.
✔ Fast Response Time – Ideal for emergency shut-off and quick isolation.
✔ Compact & Lightweight – Takes up less space than multi-turn actuators.
✔ Multiple Power Options – Available in pneumatic, electric, and hydraulic models.
✔ Modulating Capabilities – Some models allow for partial flow control (not just on/off).

How Quarter-Turn Actuators Work

When activated, the actuator rotates the valve stem 90 degrees, either opening or closing the valve. In pneumatic models, compressed air drives a piston or vane mechanism, while electric versions use a motor and gearbox. Hydraulic actuators rely on fluid pressure for high-torque applications.

Applications of Quarter-Turn Actuators

Quarter-turn actuators are widely used in industries where rapid valve operation is crucial. Some key applications include:

1. Water & Wastewater Treatment

• Butterfly valves in treatment plants for flow control.

• Ball valves in distribution networks for isolation.

2. Oil & Gas Industry

• Emergency shut-off valves (ESD) in pipelines.

• Process control valves in refineries and offshore platforms.

3. Chemical & Petrochemical Plants

• Handling corrosive and hazardous fluids with chemical-resistant actuators.

• Quick isolation in case of leaks or overpressure.

4. HVAC & Building Automation

• Airflow control in ventilation systems.

• Chilled water valves in commercial HVAC systems.

5. Power Generation

• Cooling water control in thermal power plants.

• Steam isolation valves in boiler systems.

Because of their speed and reliability, quarter-turn actuators are indispensable in processes requiring fast response times.

What is a Multi-Turn Actuator?

A multi-turn actuator is designed for valves that require multiple rotations (360° or more) to fully open or close. These actuators are typically used with gate valves, globe valves, and diaphragm valves, which need gradual movement for precise flow control.

Key Features of Multi-Turn Actuators

Multiple Rotations (360° to 1,200°) – Allows fine-tuned valve positioning.
High Torque Output – Suitable for heavy-duty valves in high-pressure systems.
Precise Flow Regulation – Ideal for throttling and modulating applications.
Position Feedback Sensors – Many models include limit switches and position indicators.
Electric, Pneumatic & Hydraulic Options – Choose based on power availability and torque needs.

How Multi-Turn Actuators Work

Unlike quarter-turn actuators, multi-turn actuators use a gearbox mechanism to convert rotational motion into linear movement. Electric models often include worm gear drives for precise control, while pneumatic actuators may use rack-and-pinion systems.

Applications of Multi-Turn Actuators

Multi-turn actuators are essential in industries where gradual valve adjustment is necessary. Common applications include:

1. Oil & Gas Pipelines

• Gate valves for mainline isolation.

• Flow control valves to regulate crude oil and gas transport.

2. Chemical Processing

• Globe valves for precise chemical dosing.

• Pressure regulation in reactor systems.

3. Water Treatment & Distribution

• Flow modulation in large-diameter pipelines.

• Pump control valves in municipal water systems.

4. Power Plants

• Steam control valves in turbine systems.

• Feedwater regulation in boiler operations.

5. Marine & Shipbuilding

• Ballast water control in vessels.

• Fuel flow regulation in engine rooms.

Because of their precision and high torque, multi-turn actuators are ideal for critical flow control applications.

Key Differences Between Quarter-Turn and Multi-Turn Actuators

Which One Should You Choose?

• For quick shut-off → Quarter-turn actuator

• For precise flow control → Multi-turn actuator

Selecting the Right Actuator for Your Application

When choosing between quarter-turn and multi-turn actuators, consider the following factors:

1. Valve Type & Function

• Quarter-turn actuators for ball, butterfly, and plug valves.

• Multi-turn actuators for gate, globe, and diaphragm valves.

2. Speed vs. Precision

• Need fast operation? → Quarter-turn.

• Need gradual adjustment? → Multi-turn.

3. Torque & Power Requirements

• High-pressure systems may require multi-turn actuators with higher torque.

4. Environmental Conditions

• Explosion-proof actuators for hazardous areas.

• Stainless steel or coated actuators for corrosive environments.

5. Automation & Control Integration

• Smart actuators with IoT connectivity for remote monitoring.

• Fail-safe mechanisms (spring return, battery backup).

Future Trends in Valve Actuation Technology

The actuator industry is evolving with advancements such as:

• Wireless smart actuators with real-time diagnostics.

• Energy-efficient electric actuators with brushless motors.

• Predictive maintenance using AI and sensor data.

These innovations are making actuators more reliable, efficient, and intelligent.

Conclusion: Making the Right Choice

Both quarter-turn and multi-turn actuators play vital roles in industrial automation. Understanding their differences ensures optimal performance, safety, and cost-efficiency in your operations.

• Quarter-turn actuators excel in fast, on/off applications.

• Multi-turn actuators provide precise flow control for critical processes.

For specialized needs, consult with actuator manufacturers to select the best solution for your system.
