A Cage Guided Globe Control Valve is a specialized valve design that incorporates a cage-like structure to provide precise guidance and stability to the valve plug or disc. This cage helps to ensure that the moving part remains properly aligned within the valve body, significantly reducing the potential for vibration, flutter, and wear. Cage-guided valves are especially suited for applications that require fine control over the flow of fluids or gases, such as in industries like oil and gas, chemical processing, power generation, water treatment, and more.

Understanding Cage Guided Globe Control Valves

A Cage Guided Globe Control Valve consists of a valve body, a cage, and a valve plug or disc. The cage is a critical component that surrounds the valve plug and provides support during its movement, guiding it precisely within the valve body. This design enhances control over the flow of materials through the valve and ensures that the sealing surfaces remain intact and effective over time.

The cage itself may be an integral part of the valve body or a separate, detachable component. Its primary purpose is to prevent instability during operation and provide an alignment that reduces the risk of malfunction, such as improper seating or excessive wear of the valve components. This precise alignment is particularly important in control valves that regulate the flow of fluids under varying pressure and temperature conditions.

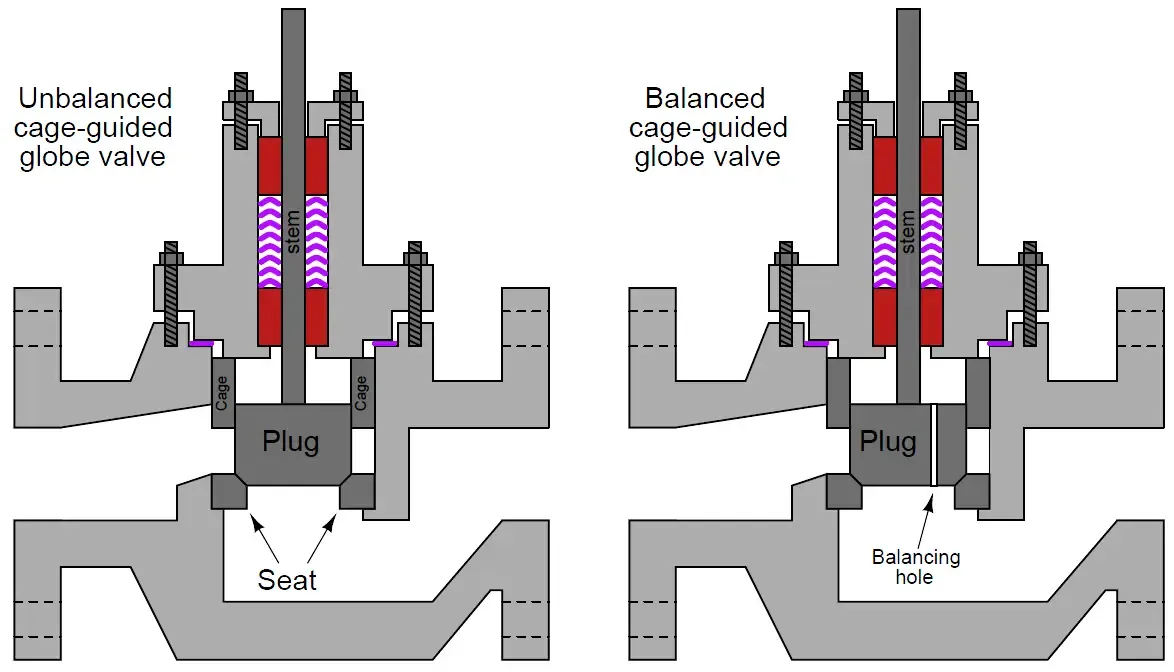

Cage-guided globe valves come with balanced or unbalanced plugs. A balanced plug features ports drilled from top to bottom, equalizing fluid pressure on both sides and reducing the forces the actuator must overcome.

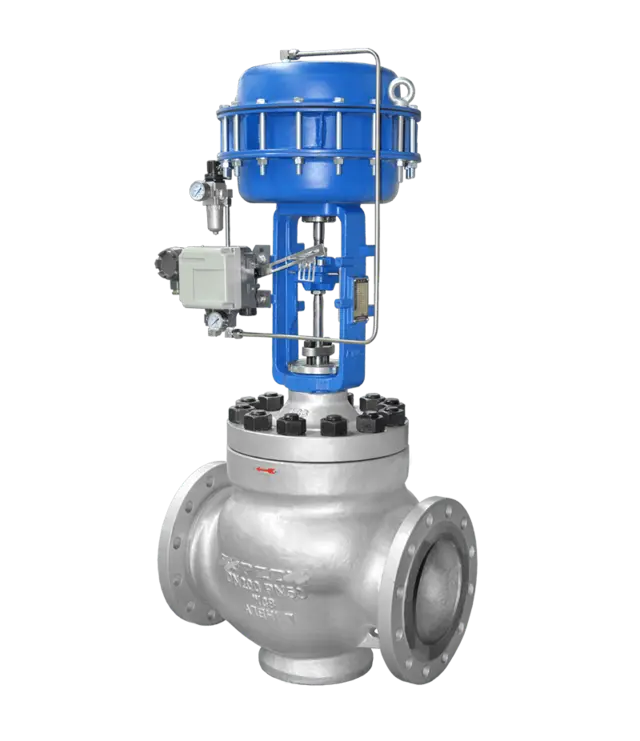

Cage-guided globe valves

Key Benefits of Cage Guided Globe Control Valves

Cage-guided valves offer a range of advantages, making them highly suitable for applications where high performance, precision, and reliability are required. Here are some of the primary benefits:

1. Enhanced Control

The most significant advantage of a cage-guided design is the enhanced flow control it offers. By centering the valve plug or disc within the valve body, the cage minimizes the possibility of misalignment, ensuring that the valve closes securely. This precise guidance results in improved flow regulation, better shut-off capabilities, and a reduction in potential leaks. This makes cage-guided globe control valves particularly effective in controlling the flow of liquids and gases in a stable and efficient manner.

2. Reduced Vibrations

Cage-guided valves are much less prone to vibrations compared to conventional valve designs. The cage stabilizes the valve plug or disc, reducing the chances of flutter or oscillation during operation. This stability prevents excessive wear on the valve components, which can otherwise lead to premature failure. As a result, the valve’s operational life is extended, and maintenance requirements are reduced.

3. Increased Service Life

The cage’s guiding function reduces the mechanical wear and tear on the valve's sealing surfaces and other moving parts. This enhanced durability increases the valve’s service life and minimizes the frequency of replacements and repairs. As a result, cage-guided globe control valves offer a higher return on investment over time, making them a cost-effective solution for long-term operations.

4. Anti-Cavitation and Noise Reduction

Cavitation occurs when pressure drops within the valve body cause vapor bubbles to form and collapse, potentially damaging the valve and causing significant operational issues. The cage-guided design helps to mitigate cavitation by providing smoother flow paths and supporting the valve plug more effectively. Additionally, the cage structure helps reduce the noise generated by turbulent flow, making the valve operation quieter and more efficient.

5. Improved Reliability

Cage-guided valves are less susceptible to the kinds of issues that can arise in non-guided valves, such as valve plug instability, uneven flow control, or sealing problems. With proper alignment and reduced chances of vibration or improper seating, these valves offer superior reliability in critical systems where failure could lead to downtime or safety hazards.

Applications of Cage Guided Globe Control Valves

Given their ability to provide precise control and stability, cage-guided globe control valves are used across a wide range of industries. Some of the primary sectors where these valves are essential include:

Oil and Gas

In oil and gas operations, control valves are critical for regulating the flow of crude oil, natural gas, and other substances under extreme pressure and temperature conditions. Cage-guided globe control valves help ensure precise flow control and minimize risk factors like cavitation and vibration.

Chemical Processing

Chemical reactors often require precise flow control to maintain the proper mixture and reaction conditions. Cage-guided control valves are ideal for regulating chemical feedstocks and ensuring stable, predictable flows.

Power Generation

In power plants, controlling steam and other fluids with high precision is essential for efficient operation. Cage-guided valves are commonly used in the steam systems to maintain stable flow rates, pressure, and temperature levels.

Water Treatment

Control valves play a key role in water treatment facilities, where they help manage the flow of water, chemicals, and wastewater. Cage-guided valves offer reliability and precision, which are vital for maintaining water quality and operational efficiency.

Key Components and Features of Cage Guided Globe Control Valves

Several components of the cage-guided valve design work together to ensure reliable performance. These include the valve body, the cage, and the actuator. Let’s take a closer look at each:

1. Valve Trim

The valve trim refers to the internal components of the valve, such as the valve plug, seat, and cage, that come into direct contact with the flow medium. Depending on the working conditions—such as pressure, temperature, and the type of fluid—a variety of materials and surface hardening treatments can be chosen to enhance corrosion, cavitation, and erosion resistance. By selecting the appropriate trim materials, the service life of the valve can be significantly extended.

2. Valve Body

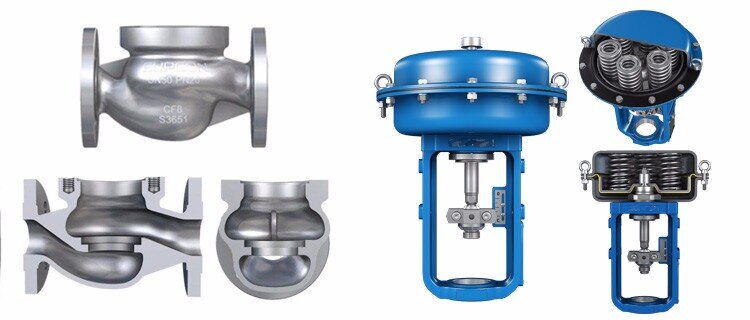

The body of a cage-guided control valve is typically designed with a streamlined shape that minimizes flow resistance. For example, the LN8 series control valves feature a design with two passages from the upper and lower parts of the valve, forming an "S" shape. This elliptical section reduces turbulent flow and promotes smooth, efficient flow. The flap in the upper passage of the valve helps to reduce eddy currents, thereby improving the overall flow capacity.



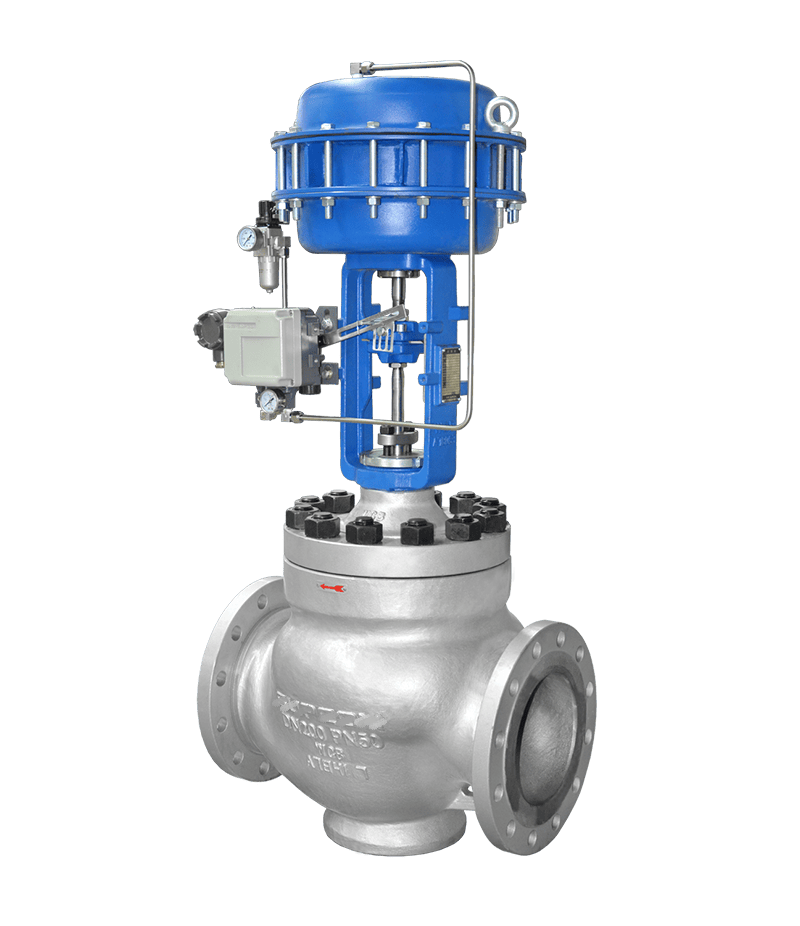

Cage Guided Globe Control Valves

3. Actuator

The actuator controls the opening and closing of the valve, and for the LN8 series, the standard actuator is the AM8 Multi-spring Pneumatic Diaphragm Actuator. This actuator offers strong output force, high reliability, and a long lifespan. It can operate under a variety of conditions, and its output force varies depending on the number of springs used. The high-stress-resistant diaphragm can withstand up to 0.5 MPa of air pressure, providing reliable shutoff capabilities. These actuators are built for longevity, with a service life exceeding one million cycles.

4. Packing System

The packing system in cage-guided valves is designed to prevent leaks and ensure smooth operation. The packing box assemblies are optimized to protect the internal components and prevent dirt or debris from entering the valve. V-rings with U-grooves improve sealing efficiency, and the packing itself is made of alternating pure PTFE and PTFE with grafoil. When the fluid temperature exceeds 200°C, grafoil packing is used for enhanced performance under high-temperature conditions.

Conclusion: The Versatility and Durability of Cage Guided Globe Control Valves

Cage-guided globe control valves offer numerous benefits for industries that demand high levels of precision, reliability, and control. Their ability to provide stable operation with reduced vibrations, enhanced flow control, and longer service life makes them an essential component in many critical systems. From oil and gas to water treatment, these valves ensure optimal performance even in the most demanding environments.

As industries continue to evolve and face new challenges, the need for advanced valve designs like the cage-guided globe control valve will only grow. With their superior reliability, anti-cavitation properties, and noise reduction features, cage-guided control valves are a smart investment for industries looking to enhance their operational efficiency and extend the lifespan of their equipment.
