Product Name: Unidirectional Multi-turn Globe Control Valve
Material: Stainless Steel
Seat Material: EPDM/PTFE
Nominal Size: 6 Inch, DN150
Pressure Rating: Class 150 LB, PN20
Connection Type: Flanged
Temperature Of Medium: EPDM: -45°C - 80°C / PTFE: -30°C - 180°C
Applications: Water Treatment, HVAC Systems, Petrochemical Industry, Food and Beverage Industry, Pharmaceutical Industry, etc.

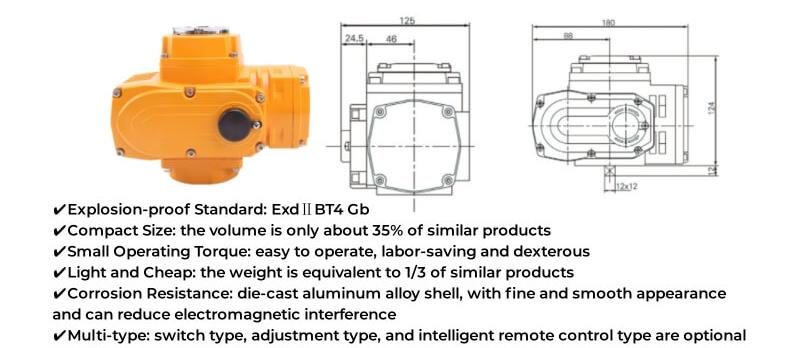

Mini Electric Explosion-Proof Actuator Features
Output Signal: Adjustable to regulated DC 4-20mA, DC 1-5V, 0-20mA, and other custom specifications.
Simple & Compact Structure: Enables quick 90° rotation for fast opening and closing.
Control Options: Supports various control signals including switch control.
Non-intrusive Design: Waterproof and explosion-proof with capacitive touch screen control and LED full menu display.
Advanced Safety Features: Includes perfect potentiometer failure, over-torque protection, and ESD protection.
Versatile Functionality: Freely switchable between adjustable type and switch type. Offers universal multi-turn/angular stroke capability and operates on 220V/380V AC.
