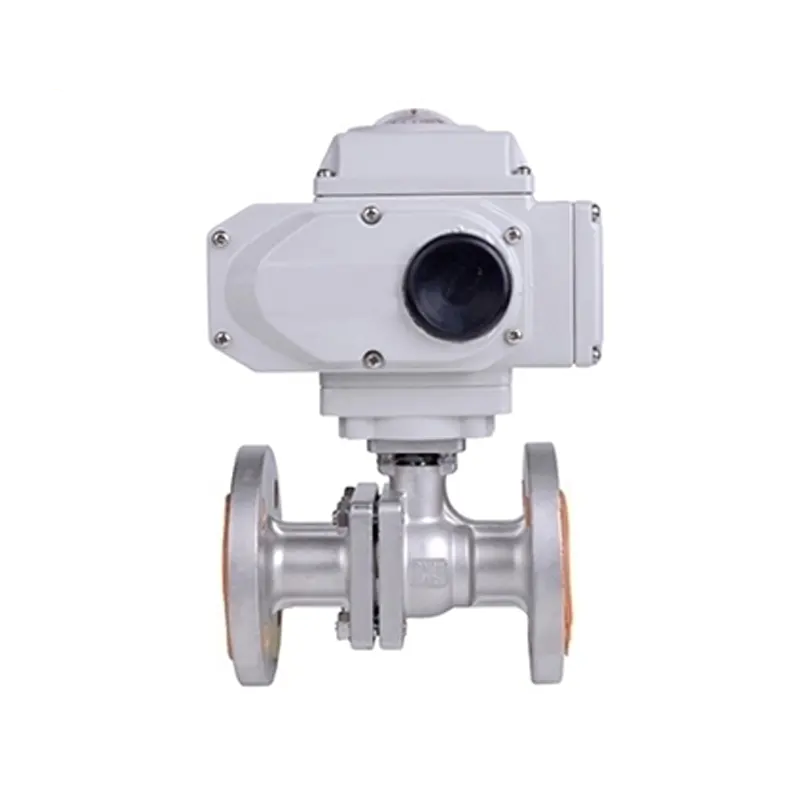

2 Way Ball Control Valve, ASTM A351 CF8, 1/2-10 Inch, 150 LB

2 Way Ball Control Valve, ASTM A351 CF8, 1/2-10 Inch, 150 LB
2 Way Ball Control Valve, ASTM A351 CF8, 1/2-10 Inch, 150 LB
Our Two Way Ball Control Valve Producer in China excels in delivering high-performance ball valves equipped with an electric actuator for reliable operation. Constructed from ASTM A351 CF8, CF8M, and ASTM A216 WCB materials, these valves are available in sizes ranging from 1/2 to 10 inches and are rated at CL 150 LB. Designed with flanged ends for secure and easy installation, they feature a variety of seat materials including PTFE, Nylon, and PPL to cater to diverse industrial fluid control requirements.

Detail Information

Product Name: Two Way Ball Control Valve
Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A216 WCB
Seat Material: PTFE, Nylon, PPL
Nominal Size: 1/2-10 Inch, DN15-DN250
Pressure Rating: Class 150 LB, PN16
Connection Type: Flange
O Ring: PTFE
Working Temperature: EPDM: -45℃ - 80℃ / PTFE: -30℃ - 180℃
Electric Actuator: On/Off, Regulation, Intelligent, Multi-Turn, Explosion-proof
Applications: Water Treatment, Oil&Gas, Biotechnology, etc

2 Way Ball Control Valve




















Electric Actuator Features:

Manual Operation: Equipped with a handwheel for manual control.

Switch Types: Offers adjustable and intelligent actuators, suitable for remote control to reduce labor costs.

Temperature Range: Handles temperatures from -30℃/86℉ to 180℃/356℉.

Certifications: ISO 5211 and Namur international standards ensure easy installation and maintenance.

Valve Body Features:

Ball Valve Types: Available in 2-way and 3-way configurations with thread, flange, clamp, or welding connections.

Materials: Includes A216-WCB, A351-CF8, A351-CF8M for durability and corrosion resistance.

Low Fluid Resistance: Offers minimal resistance, equivalent to a pipe segment of the same length.

Standards: Complies with GB, ANSI, JIS, and DIN standards.

Customization: Designed to meet high-pressure, high-temperature, and strong corrosion requirements.
