Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Body Material: ASTM A105
Bonnet: ASTM A105
Stem: Stainless Steel, SS 304 , 20Cr13
Disc: SS 304, 20Cr13
Seat: SS 304, 20Cr13
Sleeve: SS 304

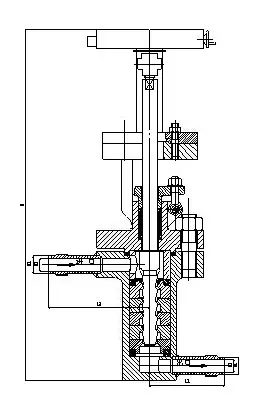

Dimension:
PN(Mpa) | DN(mm) | L | H | L1 | L2 | D1 | D2 | Electric Actuator |
Electric | ||||||||
10 | 20 | 460 | 870 | 118 | 160 | 28 | 20 | 10M |
10 | 32 | 530 | 950 | 136 | 163 | 42 | 32 | 10M16ZKZ-310B(C) |
50 | 530 | 970 | 136 | 163 | 62 | 50 | 10M16ZKZ-310B(C) |
PN
Mpa |
DN
(mm) |
TAM°C | CV | Max Pressure Difference Mpa |
Route
(mm) |
Max Flow
t/h |
||||
1 | 2 | 3 | 4 | 5 | ||||||
10 | 20 | water | 1.6 | 1 | 0.6 | 0.4 | 0.1 | 5 | 10 | 4.3 |
20 | 32 | ≤250 | 6.3 | 4 | 1.6 | 5 | 18 | 17 | ||
50 | 14 | 10 | 6.3 | 5 | 18 | 37.8 |
