Introduction

Control valves are among the most essential components in modern industrial automation and process engineering systems. They serve as the final control element in a process loop, responsible for regulating flow rate, pressure, temperature, and liquid or gas levels. Across industries such as oil and gas, petrochemicals, power generation, metallurgy, pharmaceuticals, and water treatment, control valves play a decisive role in ensuring process stability, safety, and efficiency.

As industrial systems become increasingly complex and automated, the performance requirements for control valves continue to rise. Engineers are no longer concerned only with basic opening and closing functions; instead, they demand high precision, stable modulation, low energy consumption, and long service life under harsh conditions.

Among all performance parameters, flow capacity stands out as one of the most critical. It directly determines how much fluid a valve can pass under specific conditions and significantly influences the overall performance of the control system.

This article provides a comprehensive analysis of control valve structure, classification, flow behavior, flow coefficient theory, performance characteristics, and practical selection principles, offering a complete understanding of how modern control valves operate in real industrial environments.

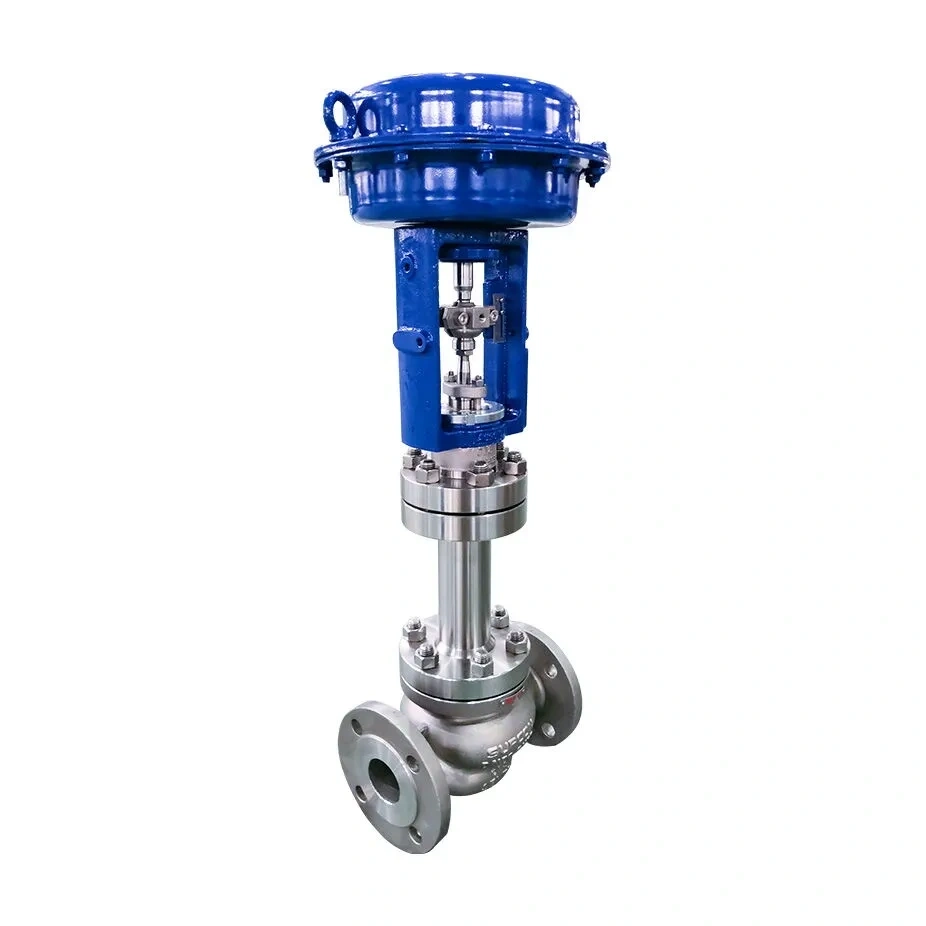

Bellows Globe Control Valve

Basic Structure of Control Valves

A control valve is generally composed of two primary subsystems: the actuator and the valve body.

Actuator: The Driving Force of Control

The actuator is responsible for converting control signals into mechanical motion. It receives signals from distributed control systems (DCS), programmable logic controllers (PLC), or other automation platforms and adjusts the valve opening accordingly.

There are two major types of actuators:

  • Pneumatic actuators
  • Electric actuators

Pneumatic actuators are widely used due to their fast response time, simple design, and high reliability in hazardous environments. They are particularly common in oil, gas, and chemical industries where safety is a priority.

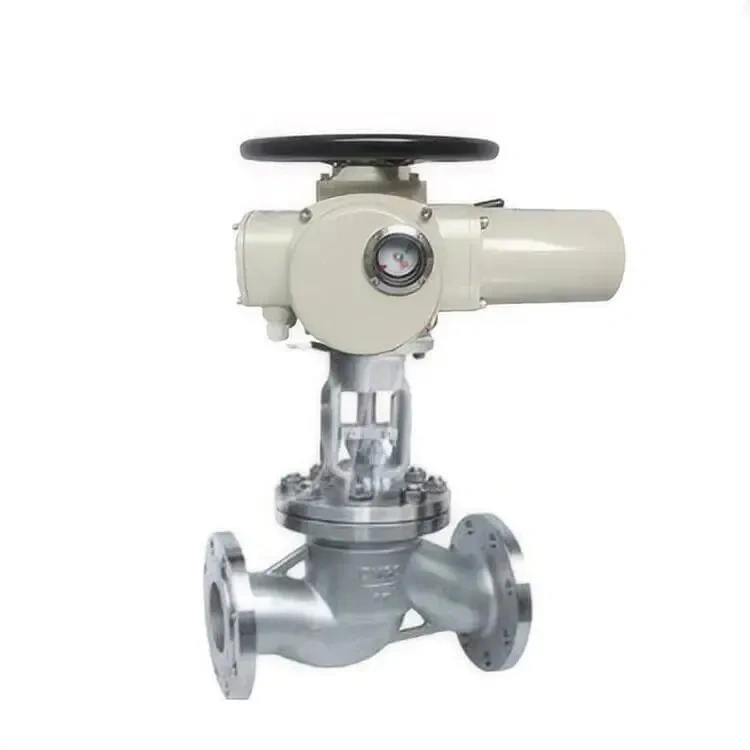

Electric actuators, on the other hand, offer high positioning accuracy and are suitable for applications requiring remote control, digital integration, and precise modulation.

Valve Body: The Flow Control Core

The valve body is the main pressure-bearing structure and determines how the fluid flows through the system. It contains internal components such as the plug, seat, cage, or disc depending on valve type.

The geometry of the valve body directly affects:

  • Flow capacity
  • Pressure drop
  • Sealing performance
  • Flow characteristics

Even minor differences in internal structure can significantly influence performance under varying operating conditions.

Classification of Control Valves

Control valves can be broadly classified based on their motion type into linear motion valves and rotary motion valves. Each category has unique structural characteristics and application advantages.

Linear Motion Control Valves

Linear motion control valves regulate flow by moving a plug or stem in a straight vertical direction.

Single-Seat Control Valves

Single-seat valves are widely used in applications requiring tight shut-off performance. Their structure consists of one seat and one plug, forming a single sealing surface.

Advantages:

  • Excellent sealing performance
  • Simple structure
  • High precision in small flow control

Limitations:

  • Limited flow capacity
  • High unbalanced force

Not suitable for large-diameter or high-flow applications

Single-seat valves are commonly used in chemical dosing, laboratory systems, and precision process control applications where leakage must be minimized.

Double-Seat Control Valves

Double-seat valves feature two sealing surfaces, which balance the forces acting on the valve plug.

Advantages:

  • High flow capacity
  • Reduced unbalanced force
  • Stable operation under high-pressure conditions

Limitations:

  • Slightly lower sealing performance compared to single-seat valves
  • More complex internal structure

Double-seat valves are widely used in large industrial pipelines where flow volume is high and minor leakage is acceptable.

Rotary Motion Control Valves

Rotary motion valves regulate flow by rotating a closure element such as a ball or disc. These valves are known for compact design and fast operation.

V-Port Ball Control Valves

V-port ball valves feature a V-shaped notch in the ball. This design enables precise throttling and stable flow control.

They are commonly used in:

  • Slurry systems
  • Chemical processing
  • Fibrous media handling

Pneumatic Diaphragm Valves

These valves use a flexible diaphragm to control flow. The diaphragm moves up and down in response to pneumatic pressure.

Advantages:

  • Excellent sealing performance
  • Suitable for corrosive and sanitary applications
  • Simple maintenance

They are widely used in pharmaceutical, food, and biotechnology industries.

Eccentric Butterfly Valves

Eccentric butterfly valves use an offset disc design to reduce friction during operation. This improves sealing performance and extends service life.

They are suitable for:

  • Large-diameter pipelines
  • Water treatment systems
  • HVAC systems

Flow Capacity and Fluid Flow Behavior

Flow capacity is closely related to how fluid behaves inside the valve. Understanding fluid dynamics is essential for accurate valve design and selection.

Laminar Flow Regime

At low flow rates, especially in viscous fluids, the flow is typically laminar. In this state:

  • Fluid moves in parallel layers
  • Minimal mixing occurs
  • Flow rate is proportional to pressure difference

This condition is stable but limited in energy transfer.

Transitional Flow Regime

As flow increases, the system enters a transitional phase where laminar and turbulent flow coexist. In this region:

  • Flow becomes unstable
  • Pressure-flow relationship becomes nonlinear
  • Predictability decreases
  • Turbulent Flow Regime

At high flow rates, fluid becomes fully turbulent:

  • Flow is chaotic and energetic
  • Strong mixing occurs
  • Flow is less sensitive to viscosity

However, most low-flow control valves never reach fully turbulent conditions, making traditional models less accurate in such cases.

The Reynolds number is used to describe flow behavior. It determines whether the flow is laminar, transitional, or turbulent.

Flow Capacity and Valve Performance Relationship

Flow capacity directly influences multiple performance characteristics of a control valve.

1. Regulation Accuracy

Higher flow capacity allows smoother modulation across operating ranges, improving control accuracy.

2. Turndown Ratio

The turndown ratio represents the controllable flow range:

Turndown Ratio = Qmin / Qmax

A higher ratio means better flexibility in flow control. Industrial systems typically require a ratio between 10:1 and 15:1.

3. System Stability

Improper flow capacity selection can lead to:

  • Oscillations
  • Pressure fluctuations
  • Poor regulation response

4. Flow Characteristic Distortion

In real pipeline systems, resistance changes can distort valve characteristics:

  • Linear characteristics may behave like quick-opening curves
  • Equal-percentage curves may become linear

This is especially noticeable in high-pressure systems with multiple valves in series.

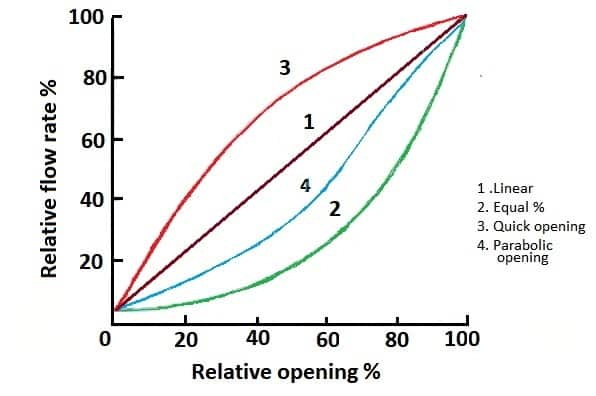

Control Valve Flow Characteristics

Flow Coefficient: The Core Engineering Parameter

The flow coefficient defines the capacity of a valve to pass fluid under standardized conditions.

Cv and Kv Definitions

Two international standards are widely used:

  • Cv (ISA standard)
  • Kv (IEC standard)

Their relationship is:

Cv≈1.167Kv​

Cv Definition

Cv represents the flow of water (60°F) in gallons per minute through a valve with a pressure drop of 1 psi.

Kv Definition

Kv represents the flow of water (5–40°C) in cubic meters per hour under a pressure drop of 1 bar.

Calculation Complexity

Flow coefficient calculation involves:

  • Fluid density
  • Viscosity
  • Compressibility
  • Pressure differential
  • Choking conditions

Due to complexity, modern industries rely on simulation software to improve accuracy and efficiency.

Low-Flow Control Valve Challenges

Low-flow valves are used in highly precise applications such as:

  • Chemical dosing
  • Laboratory systems
  • Instrumentation pipelines

Key Challenges

  • Extremely small flow range
  • High sensitivity requirements
  • Leakage control difficulties

Even when fully closed, micro-leakage can affect system accuracy.

International standards strictly regulate leakage rates, ensuring safety and reliability even at extremely low Cv values.

Practical Selection Considerations

Selecting the correct control valve requires systematic engineering evaluation.

1. Fluid Properties

  • Viscosity
  • Density
  • Corrosiveness
  • Phase (gas/liquid/steam)

2. Operating Conditions

  • Temperature range
  • Pressure range
  • Flow variability

3. Pipeline Conditions

  • Upstream/downstream resistance
  • Installation orientation
  • Space constraints

4. Control Requirements

  • Accuracy level
  • Response speed
  • Stability requirements

5. Economic Considerations

  • Initial cost
  • Maintenance cost
  • Lifecycle performance
  • Industrial Applications

Control valves are used across nearly all industrial sectors:

  • Oil refining and transportation
  • Natural gas distribution
  • Power plant steam systems
  • Chemical manufacturing
  • Water treatment and desalination
  • Pharmaceutical production
  • Food and beverage processing

Each application requires specific valve characteristics tailored to process needs.

Technological Developments in Control Valves

Modern control valve technology is evolving rapidly.

Smart Control Integration

Digital actuators and IoT connectivity allow:

  • Remote monitoring
  • Predictive maintenance
  • Real-time diagnostics
  • Advanced Materials

New materials improve performance in extreme conditions:

  • High-temperature alloys
  • Corrosion-resistant coatings
  • Ceramic sealing surfaces
  • Simulation-Based Design

CFD (Computational Fluid Dynamics) is increasingly used to:

  • Optimize internal flow paths
  • Reduce turbulence
  • Improve efficiency
  • Energy Efficiency Optimization

Modern valves are designed to reduce:

  • Pressure loss
  • Energy consumption
  • Operational waste

Conclusion

Control valves are fundamental to modern industrial systems, and their performance directly affects process efficiency, safety, and operational stability. Among all performance parameters, flow capacity remains the most critical factor in determining valve suitability.

A deep understanding of valve structure, fluid behavior, flow coefficient theory, and system interaction is essential for correct selection and optimization. As industrial automation continues to advance, control valves are becoming more intelligent, precise, and adaptable to increasingly complex environments.

Future developments will continue to focus on smart integration, advanced materials, and high-precision flow control, ensuring that control valves remain at the heart of industrial process engineering worldwide.
