In modern industrial systems, the demand for accuracy, efficiency, and automation has never been greater. Whether in chemical processing, water treatment, energy generation, or HVAC systems, operators need valves that not only regulate flow effectively but also integrate seamlessly into automated processes. Among the various valve types available, electric actuated butterfly valves stand out as highly versatile and reliable flow-control devices.

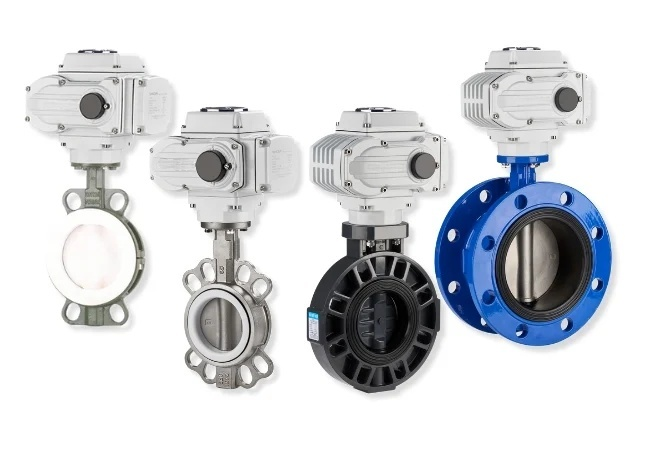

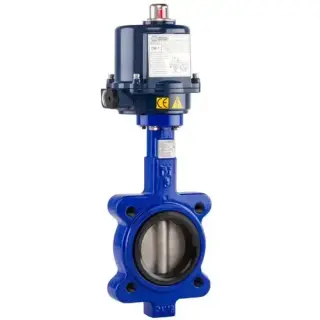

An electric actuated butterfly valve combines two essential components: a butterfly valve with its disc-shaped closure mechanism, and an electric actuator, which rotates the disc to open, close, or throttle the flow. By harnessing electric power rather than relying on manual or pneumatic actuation, these valves provide precise positioning, repeatable performance, and enhanced safety. As industries continue to embrace smart technologies and automated process control, electric actuated butterfly valves are becoming an indispensable part of modern infrastructure.
This article explores their design, components, selection considerations, applications, and benefits, offering a complete guide for engineers, operators, and decision-makers.
Electric actuated butterfly valves consist of five key components:
Valve Body – The housing that connects to the pipeline, providing structural integrity and ensuring compatibility with flanged, lug, or wafer-style installations.
Valve Disc – The rotating element responsible for controlling fluid passage. Its orientation determines whether the flow is fully open, throttled, or shut off.
Valve Stem (or Shaft) – A critical link that transmits torque from the actuator to the disc, ensuring reliable motion transfer.
Valve Seat – Provides the sealing surface that ensures tight shutoff when the valve is closed. Seats may be made of elastomers, PTFE, or metal depending on application requirements.
Actuator – The electric motor assembly that powers the valve’s movement, equipped with gearing, limit switches, and often smart positioners for precise control.
This integration of mechanical and electrical elements allows butterfly valves to transition from simple shutoff devices into advanced, automated control systems.
Choosing the proper actuator is essential for reliable operation and long service life. Several factors must be carefully evaluated:
The actuator must deliver enough torque to overcome system resistance, which depends on the valve size, disc material, seat type, and pressure conditions. An undersized actuator may fail to close the valve fully, while an oversized one increases cost and energy consumption.
Electric actuators can be designed for AC or DC power, with varying voltage, frequency, and current requirements. Ensuring compatibility with the facility’s electrical infrastructure prevents malfunctions and downtime.
In challenging environments—such as outdoor installations, high-temperature zones, or hazardous locations—actuators must be ruggedized. Explosion-proof housings, weatherproof enclosures, and corrosion-resistant coatings ensure durability and safety.
Many industries require valves and actuators to meet international standards such as IEC, ATEX, or SIL certifications. Selecting actuators that comply with these regulations ensures both legal compliance and operational safety.
Electric actuated butterfly valves bring numerous advantages to industrial operations, offering far more than simple flow control. One of their most important benefits is precision control. Electric actuators allow the valve disc to be positioned at any point between fully open and fully closed, enabling accurate modulation in applications such as chemical blending, dosing, or temperature regulation. This fine-tuned control directly contributes to improved product quality and process efficiency.
Another major advantage is automation and remote operation. When integrated with advanced control systems like SCADA or DCS, operators can monitor and adjust valve positions from a distance. This reduces manual intervention, enhances workplace safety—especially in hazardous environments—and ensures faster response times.
These valves are also known for their energy efficiency. The lightweight disc design and low torque requirement significantly reduce power consumption. Unlike pneumatic systems, electric actuators do not require compressed air, lowering both energy usage and maintenance costs.
In addition, they provide reliability and consistency, delivering stable performance without the fluctuations often experienced in pneumatic systems. Finally, safety integration allows them to be configured to move into fail-safe positions during power loss, ensuring process security and reliable emergency shutdowns.
Electric actuated butterfly valves are used in a wide range of industries where precision and automation are vital:
Chemical Processing – Accurate flow control for corrosive and hazardous chemicals, supporting safe and efficient production.
Oil & Gas – Reliable isolation and control in pipelines and refining processes where safety and compliance are critical.
Water & Wastewater Treatment – Automated control of flow rates, distribution, and treatment cycles.
Power Generation – Regulation of cooling systems, steam, and fuel lines to maintain system efficiency.
Pharmaceutical Manufacturing – Precise batching and sterile fluid handling where quality standards are uncompromising.
Food & Beverage – Hygienic processing, cleaning cycles, and precise mixing for product quality assurance.
HVAC Systems – Efficient regulation of heating and cooling loops in large-scale commercial and industrial facilities.
Durability is a defining feature of electric butterfly valves. Depending on application demands, manufacturers offer options such as:
Stainless Steel (CF8M, 316, 304) – For corrosion resistance in chemical and food industries.
Carbon Steel – For strength and high-pressure applications.
Cast Iron or Ductile Iron – Cost-effective solutions for water and HVAC systems.
Special Alloys (Duplex, Aluminum Bronze, Titanium) – For seawater, offshore, or highly corrosive environments.
Seats can be elastomeric (EPDM, NBR) for general water service, PTFE for chemical compatibility, or metal-seated for high-temperature or abrasive conditions.
Modern actuators often include advanced features for digital communication and control:
Digital Positioners – Ensure accurate valve response to control signals.
Limit Switches – Provide feedback on valve position.
Communication Protocols – Integration with fieldbus systems like Modbus, Profibus, or Foundation Fieldbus.
Smart Diagnostics – Self-monitoring actuators that report performance trends, faults, or maintenance needs.
This connectivity allows valves to become part of Industry 4.0 frameworks, enabling predictive maintenance and real-time process optimization.
While electric actuated butterfly valves deliver many advantages, they also present certain challenges that must be considered during system design and selection. One key issue is their slower response time compared to pneumatic actuators. In applications where extremely rapid opening or closing is critical, electric models may not be the ideal choice.
Another factor is their dependence on a stable power supply. Since these valves operate exclusively on electricity, any interruption or fluctuation in power can impact performance. Without backup systems such as uninterruptible power supplies (UPS), unexpected outages may disrupt operations or compromise safety.
In addition, electric actuated butterfly valves often involve a higher initial investment. Advanced actuators with digital communication capabilities, fail-safe functions, or ruggedized enclosures may come at a premium compared to basic pneumatic alternatives. However, this cost is frequently offset by reduced maintenance, lower energy consumption, and long-term reliability.
Ultimately, engineers and facility managers must evaluate these considerations in light of their specific operational requirements. For processes prioritizing precision, automation, and energy efficiency, electric actuated butterfly valves remain an excellent choice. Still, balancing speed, cost, and power reliability is essential to achieving the best system performance.
The market for electric actuated butterfly valves is evolving rapidly. Key trends include:
Smart Valves with IoT Integration – Real-time monitoring and cloud-based analytics.
Energy-Efficient Actuators – Designs focused on reducing power consumption.
Enhanced Safety Features – Fail-safe and cybersecurity protections in critical infrastructure.
Customization – Valves tailored to unique process needs, including exotic materials and hybrid actuation systems.
As industries move toward digitized, sustainable operations, electric actuated butterfly valves will play an increasingly central role.
Electric actuated butterfly valves represent a powerful fusion of simplicity, reliability, and automation. With their precise control, robust construction, and seamless integration into modern industrial systems, they provide a vital solution for industries that require efficient and dependable flow regulation.
From water treatment plants to chemical facilities and from power generation to food processing, these valves contribute to improved safety, reduced costs, and optimized performance. As technology advances and smart automation continues to shape global industries, the adoption of electric actuated butterfly valves is set to expand even further, making them a cornerstone of 21st-century process engineering.
