In today’s increasingly automated industrial landscape, the importance of reliable flow control cannot be overstated. From water treatment plants and oil refineries to HVAC systems in skyscrapers and even residential smart homes, valves are the silent workhorses ensuring that fluids flow exactly where and when they are needed. Among the wide variety of valve technologies available, motorized ball control valves have emerged as a game-changing solution.
A motorized ball valve integrates the simplicity of the quarter-turn ball mechanism with the precision of an electric actuator. This combination creates a versatile, automated device that offers precise regulation, dependable shutoff, and seamless integration into modern control systems. Whether managing water distribution in municipal networks, controlling chemical dosages in processing plants, or enabling remote operation in intelligent building systems, motorized ball valves provide unmatched convenience and efficiency.
This article explores the world of motorized ball control valves in detail—covering their components, advantages, applications, comparisons with other valve types, installation best practices, operational considerations, and future innovations shaping the industry.

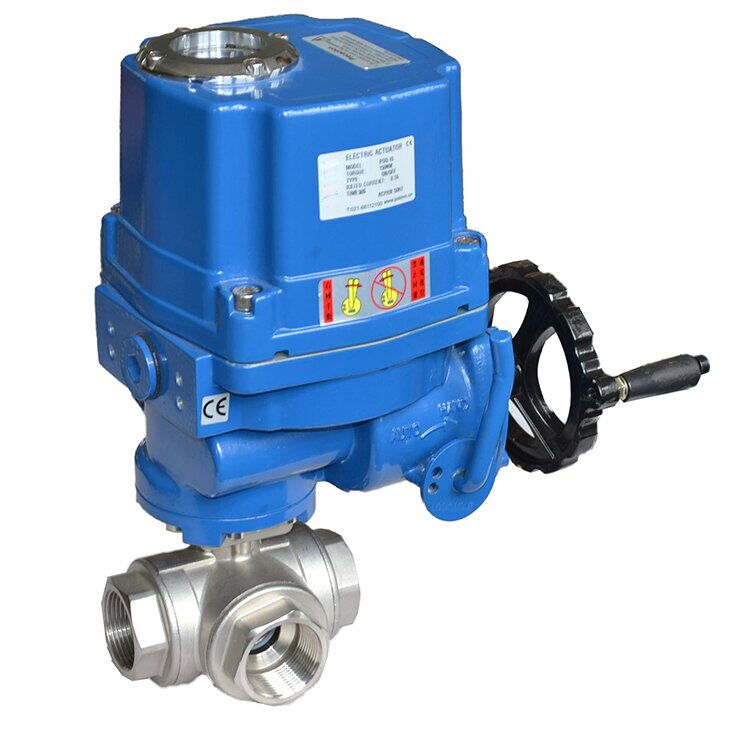

At its core, a motorized ball valve is a quarter-turn valve driven by an electric actuator. The heart of the valve is a spherical ball with a central bore (a drilled hole). When the bore is aligned with the pipeline, the valve is open, allowing full, unrestricted flow. When rotated by 90 degrees, the bore is perpendicular to the flow, effectively shutting off passage.
Unlike manual ball valves that require human intervention, motorized versions leverage an electric motor to perform the opening and closing functions. The actuator may be controlled locally through switches or remotely via building automation systems, SCADA (Supervisory Control and Data Acquisition), or even cloud-based IoT platforms. This automation enables precise, real-time control without the need for constant human oversight.
Motorized ball valves are especially valued for their ability to combine tight sealing, durability, and automation. They are suitable for both on/off service and throttling control, making them one of the most versatile options in fluid handling.
The valve body forms the outer shell, containing all internal parts. It must withstand system pressures, temperatures, and chemical exposure.
Materials: Stainless steel for corrosive environments, brass or bronze for water systems, PVC or CPVC for chemical resistance, and carbon steel for high-pressure applications.
Designs: One-piece, two-piece, or three-piece bodies. Three-piece designs are common in industrial use since they allow easy disassembly for cleaning or maintenance without removing the valve from the pipeline.
The ball regulates fluid passage. It can be:
Full Bore (Full Port): The bore diameter matches the pipeline, ensuring unrestricted flow with minimal pressure drop. Ideal for applications needing maximum efficiency.
Reduced Bore (Standard Port): Bore is smaller than the pipeline diameter, resulting in slightly higher pressure drop but lower cost.
V-Port Balls: Machined with a V-shaped notch for precise throttling and flow regulation.
Solid Ball vs. Hollow Ball:
Solid balls provide durability and smoother flow.
Hollow balls are lighter, cheaper, and allow more flow volume, though they may introduce turbulence.
The stem links the actuator to the ball. Sealed with O-rings or packing rings, it ensures torque transmission while preventing leakage. Advanced designs include blow-out proof stems, enhancing safety under high-pressure conditions.
The ball is seated on rings that ensure a tight seal when closed. Seat materials vary:
PTFE (Teflon): Excellent chemical resistance, suited for most fluids.
RPTFE (Reinforced PTFE): Stronger, with better wear resistance.
Metal Seats (Stellite, Stainless Steel): Required for high-temperature, abrasive, or severe service conditions.
The actuator is the defining element of a motorized ball valve. It converts electrical power into mechanical torque.
On/Off Actuators: Simple open/close function.
Modulating Actuators: Allow precise intermediate positioning for throttling.
Fail-Safe Actuators: Equipped with a spring return or capacitor system to default to a safe position during power loss.
Smart Actuators: Support digital communication protocols (Modbus, Profibus, BACnet) and provide feedback on valve position, torque, and diagnostics.
Modulating motorized ball valves enable fine adjustment of flow rates. In HVAC systems, this means precise temperature control; in chemical plants, it means accurate dosing of additives.
They integrate easily with PLC, DCS, and IoT systems, allowing operators to control valves from control rooms—or even from mobile devices.
Fewer moving parts and a robust design lead to long service life. Many can handle tens of thousands of cycles without significant wear.
Unlike pneumatic valves that require continuous compressed air, electric motorized valves use energy only during operation, making them more efficient and cost-effective.
Fail-safe options allow valves to close automatically during power outages, preventing accidents, leaks, or contamination.
They handle water, steam, oil, natural gas, corrosive chemicals, and even slurries. Temperature ranges can extend from cryogenic (-196°C) to extreme heat (>500°C), depending on design.
Used for dosing chemicals like chlorine, regulating pump stations, and managing distribution networks. Automation ensures safe, consistent water quality.
Motorized ball valves control crude oil flow in upstream fields, regulate natural gas pipelines, and manage refined fuel transfers. Their durability in high-pressure environments is critical.
They regulate chilled water, hot water, and steam flow, ensuring efficient energy use in buildings. Integration with BAS (Building Automation Systems) makes them essential for green building certifications.
Accurate flow control ensures proper mixing, reaction timing, and quality. Special seat materials resist aggressive acids and solvents.
From cooling water lines in nuclear plants to steam circuits in thermal plants, motorized ball valves help maintain safe and efficient operation.
Used for hygienic applications where stainless steel bodies and FDA-approved seals maintain sanitary conditions.
Residential systems use compact motorized ball valves for water supply automation, leak detection, and irrigation. In agriculture, they regulate irrigation systems and fertigation processes.
Motorized vs. Manual Ball Valves: Motorized versions eliminate manual labor, allow remote operation, and provide automation.
Motorized vs. Pneumatic Valves: Pneumatic valves are fast but require costly compressed air systems. Motorized valves are slower but more energy-efficient.
Motorized vs. Butterfly Valves: Butterfly valves are lighter and cheaper for large diameters, but ball valves provide tighter shutoff.
Motorized vs. Globe Valves: Globe valves offer better throttling precision, but motorized ball valves are more compact and cost-effective for on/off and moderate control.
Pressure and Temperature Ratings: Always verify compatibility with system conditions.
Cycle Frequency: Select high-cycle valves for frequent operation.
Control Signals: Ensure actuator compatibility with system automation protocols.
Power Supply: AC, DC, or solar-powered options must match site availability.
Environmental Protection: For outdoor or corrosive environments, IP67/IP68-rated actuators with protective coatings are recommended.
To maximize the performance and service life of motorized ball control valves, proper installation and structured maintenance are essential.
During installation, ensure that the valve and actuator are positioned for easy access. This setup allows maintenance personnel to service or replace actuators and seals without dismantling the entire pipeline system, minimizing downtime.
Carefully follow manufacturer guidelines when wiring actuators. Use appropriate surge protection devices to guard against voltage spikes, which can damage sensitive electronic components and reduce actuator life. Proper grounding also enhances system safety.
Even in applications where valves remain in one position for extended periods, it is good practice to cycle them periodically. Regular operation prevents sticking, buildup of debris, and premature wear of moving parts.
Inspect seals, seats, and O-rings regularly, especially in systems handling corrosive or abrasive fluids. Early replacement of worn components helps prevent leakage, preserves efficiency, and reduces the risk of unexpected failures.
For modulating actuators, routine calibration ensures precise flow control. Periodic adjustments keep actuators aligned with control signals, maintaining accuracy and consistency in demanding process conditions.
When followed consistently, these practices significantly extend valve longevity while enhancing overall system reliability.
Valves equipped with sensors provide real-time data on position, flow, and wear. Predictive maintenance reduces downtime.
Brushless DC motors and low-power designs reduce operational costs.
Advanced composites and alloys extend valve life in aggressive conditions. Cryogenic-compatible and ultra-high-temperature designs are expanding usage.
Compact designs enable wider adoption in smart homes and portable systems.
Artificial intelligence can optimize valve operation patterns, predicting system demand and adjusting automatically for efficiency.
Motorized ball control valves represent a perfect balance between mechanical simplicity and modern automation. By combining the proven reliability of ball valves with the intelligence of electric actuators, they have become indispensable in industries ranging from water treatment to oil and gas, HVAC, power, and even residential smart systems.
Their advantages—precision, efficiency, durability, and seamless integration into digital platforms—make them a cornerstone of modern fluid management. As industries continue moving toward automation, sustainability, and smart technologies, motorized ball valves will play an even greater role in shaping efficient and resilient fluid control systems worldwide.
