In today’s era of industrial automation, electric ball valves have emerged as a crucial component for precise, efficient, and remote-controlled flow regulation. These valves combine the mechanical reliability of traditional ball valves with the modern advantages of electric actuators. As industries increasingly demand intelligent and eco-friendly systems, electric ball valves are gaining popularity for their performance, versatility, and ease of integration with automation platforms.
Whether used in water treatment, HVAC systems, chemical processing, food and beverage production, or oil and gas, electric ball valves offer a compact, durable, and high-performing solution. But what exactly is an electric ball valve, how does it work, and why is it becoming a preferred choice in automated systems?

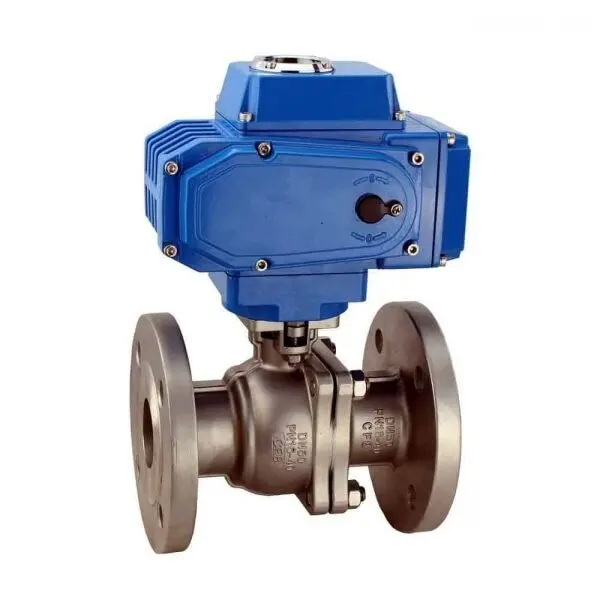

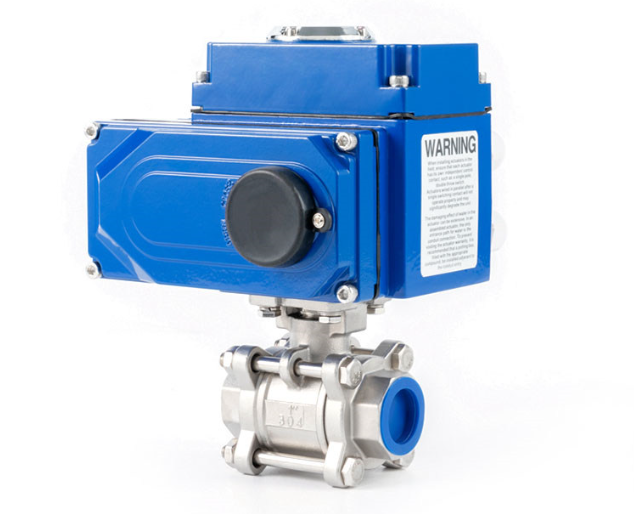

An electric ball valve is a type of quarter-turn valve that is actuated by an electric motor. The core component is a spherical ball with a central hole that aligns with the flow path when the valve is open and turns perpendicular to block the flow when closed. The 90-degree rotation is achieved using an electric actuator, which receives signals from a control system and converts them into mechanical movement.
Electric ball valves can be designed for on/off service or modulating control, depending on the needs of the application. Actuator types vary by function and environment, including:
Standard Electric Actuators
Explosion-Proof Actuators
Submersible (Underwater) Actuators
Auto-Return (Spring Return) Actuators
The working principle of an electric ball valve is straightforward yet highly effective:
Electric Signal Activation: When the system sends an electrical signal to the actuator, the motor powers on.
Stem and Ball Rotation: The actuator rotates the valve stem by 90 degrees, which in turn rotates the ball inside the valve body.
Flow Control:
When the hole in the ball aligns with the pipeline, fluid flows through.
When the ball is rotated 90 degrees so that the hole is perpendicular to the flow path, the valve shuts off the flow.
Electric ball valves are ideal for on/off operations. While they can be adapted for throttling or modulating service, they are less suited for continuous modulation under high pressure or abrasive conditions, as this may damage the valve seats.
Electric ball valves bring a host of advantages to modern industrial systems:
Unlike pneumatic or hydraulic actuators that require compressors or fluid systems, electric actuators run on AC or DC power, reducing energy consumption and environmental impact. They eliminate the need for air lines or hydraulic fluid handling, making them cleaner and more sustainable.
Electric ball valves can easily integrate with control systems such as PLC (Programmable Logic Controllers) and DCS (Distributed Control Systems). This integration enables remote operation, centralized monitoring, and full automation of fluid management processes, significantly improving operational efficiency.
Thanks to their compact design and fewer moving parts, electric ball valves are relatively easy to maintain. The electric actuator is sealed and often self-lubricating, reducing downtime and simplifying upkeep in routine inspections.
These valves are engineered to handle a wide variety of fluids—including water, steam, gases, slurries, and corrosive chemicals. They also perform reliably under extreme temperatures and pressures, making them suitable for everything from residential water systems to petrochemical refineries.
The spherical ball provides a tight seal with minimal leakage, even under high-pressure conditions. This design ensures dependable shut-off and reduces the risk of contamination, pressure drops, or flow fluctuations.
To suit a broad range of industrial environments, electric ball valves are constructed using durable and corrosion-resistant materials such as:
Stainless Steel (SS304, SS316)
Brass
PVC and CPVC
Carbon Steel
Bronze
The actuator housings are often made of aluminum alloy or thermoplastic enclosures with weatherproof, explosion-proof, or waterproof protection (such as IP67 or IP68 ratings), depending on the operating environment.
The robust construction allows these valves to operate efficiently in abrasive, corrosive, and high-temperature settings. In addition, many electric actuators feature manual override capabilities for emergency situations or system testing.
Electric ball valves are compatible with a wide range of mediums, including:
Liquids: Water, oils, chemicals
Gases: Air, natural gas, nitrogen
Steam
Slurries and viscous fluids
Some versions are tailored for food-grade, pharmaceutical, or marine use, ensuring hygienic or corrosion-resistant performance as needed. The sealing materials (like PTFE, RPTFE, or Viton) are selected based on the fluid type to ensure durability and safety.
These valves are engineered for versatility, with operating temperature and pressure ratings varying by material and actuator type:
Temperature Range: -20°C to 180°C (or higher with special materials)
Pressure Range: Up to 1000 psi (or more for heavy-duty designs)
This capability allows them to perform reliably in both low-pressure utility systems and high-pressure industrial lines.
Some electric ball valves—like the electric eccentric hemisphere valve—offer specialized designs for enhanced flow dynamics. Here’s a general guide to their installation and use:
Verify the valve size, pressure class, and material compatibility.
Inspect the valve for damage during shipping or storage.
Clean the valve internals and tighten any loosened components, such as nuts or screws on limit settings.
Install the valve according to the flow direction marked on the body.
For abrasive or slurry fluids, use a horizontal pipe installation for better sediment handling.
Use appropriate gaskets and torque bolts evenly to prevent leaks.
Manual Operation: Rotate the handwheel clockwise to close and counterclockwise to open. Typically, a full open/close cycle involves a 90–98° rotation.
Pneumatic Option: When actuated pneumatically, use only the provided handwheel for manual override. Avoid using makeshift tools like extension rods to prevent damage.
Maintenance: Keep the valve clean, ensure the actuator is properly lubricated, and regularly inspect for wear or electrical issues.
Electric ball valves are found in a wide range of applications across numerous industries, including:
Water and Wastewater Treatment
HVAC Systems
Oil & Gas Pipelines
Pharmaceutical and Food Processing
Power Plants and Energy Production
Irrigation and Agriculture
Chemical and Petrochemical Plants
Marine and Offshore Facilities
Thanks to their automation capabilities and strong sealing performance, electric ball valves are especially suited for critical flow applications where consistent and remote-controlled operation is essential.
Selecting the appropriate electric ball valve is essential for ensuring reliable performance, system compatibility, and long-term efficiency in your fluid control system. With a wide range of designs, materials, and actuator options available, it’s important to evaluate several key factors before making your decision.
The first step is determining the correct valve size based on your pipeline diameter and flow requirements. Common end connections include flanged, threaded, and tri-clamp types. Flanged ends are ideal for high-pressure systems and industrial applications, while threaded and tri-clamp connections are often used in compact systems or sanitary environments like food and beverage processing. Make sure the selected connection matches your existing pipeline standards to ensure proper installation and sealing.
Electric actuators come in several variations, each suited to different working environments:
Standard actuators are ideal for general-purpose indoor use.
Explosion-proof actuators are designed for hazardous locations such as oil refineries or chemical plants.
Underwater or submersible actuators are built for extreme conditions, providing reliable operation in wet or submerged environments.
Choosing the right actuator type protects your system and ensures safe, efficient performance under all conditions.
Make sure the actuator’s control interface is compatible with your automation or monitoring system. Common signal types include 4–20mA, 0–10V, and Modbus RTU. Proper signal matching ensures accurate valve control, smooth integration with PLCs or DCS systems, and reliable remote operation.
Electric actuators are available with different voltage options, such as 12V DC, 24V DC, 110V AC, and 220V AC. Always check the voltage specifications of your power system to avoid mismatches that could damage the actuator or result in poor performance.
Understand your system’s flow control needs. For basic open/close functionality, a standard on/off valve will suffice. However, if you require precise regulation of flow rate, a modulating electric ball valve with a positioner may be more appropriate.
Finally, consider the surrounding environment where the valve will operate. Factors like humidity, ambient temperature, dust, and exposure to corrosive chemicals can influence both valve and actuator performance. Choose materials and enclosures designed to withstand these conditions for long-term durability.
By carefully evaluating these factors, you can confidently select the electric ball valve best suited for your application, ensuring optimal control, safety, and efficiency.
Electric ball valves represent a sophisticated evolution in flow control technology. By combining the simplicity of ball valves with the intelligence and precision of electric actuators, these valves empower industries to achieve smarter, cleaner, and more efficient automation.
From energy savings to improved process accuracy, electric ball valves offer tangible advantages in both performance and long-term cost-effectiveness. Whether you’re upgrading an existing system or building a new automation platform, integrating electric ball valves is a step toward future-proofing your operations.
As industries continue to prioritize sustainability and remote operation, the electric ball valve stands out as a reliable and essential solution for the demands of modern flow control.
