In industrial process control systems, managing the direction, volume, and mixture of fluids or gases is critical to achieving operational efficiency and maintaining system stability. Among the devices engineered for this purpose, the pneumatic 3-way globe control valve stands out for its precision, reliability, and versatility. Commonly used for regulating water, steam, air, or gases, this valve is especially well-suited for demanding environments that require either combining or diverting flow paths.
Also referred to as heavy-duty three-way control valves, these components play an essential role in systems where the accurate mixing or diversion of media is required. From HVAC systems to chemical processing and power generation, the pneumatic 3-way globe control valve serves as a crucial part of intelligent fluid management.

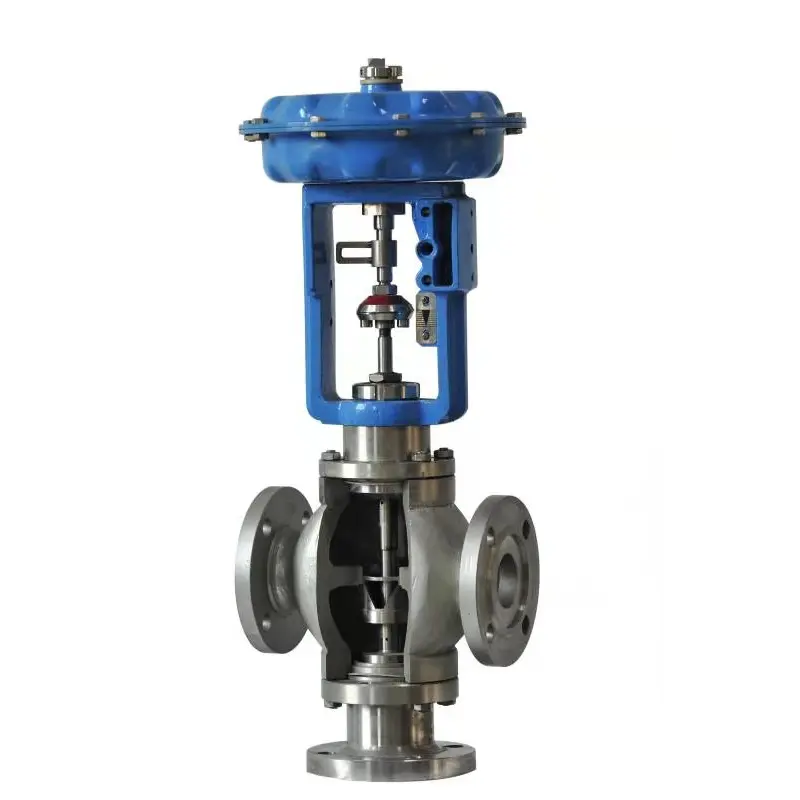

A 3-way globe control valve features three ports that enable it to either mix two separate fluid streams into one or divert one stream into two different outlets. Its body is shaped like a globe, housing an internal plug or disc mechanism that regulates flow direction and volume based on configuration and actuator input.
These valves come in three main configurations:
This type allows fluid to enter through two separate inlet ports and mix internally before exiting through a single outlet port. This setup is essential in applications where two temperature-controlled streams need to be blended, such as in HVAC or heating circuits.
A diverting valve permits fluid to flow through one inlet and be directed to one of two outlet ports. It's commonly used when there is a need to alternate the destination of a flow stream, such as switching cooling or process media between two exchangers.
This hybrid configuration combines both mixing and diverting functionalities. It offers the highest level of control, allowing fluid from two inlets to either be directed to one outlet or mixed and then discharged. This versatility makes it ideal for complex process systems.

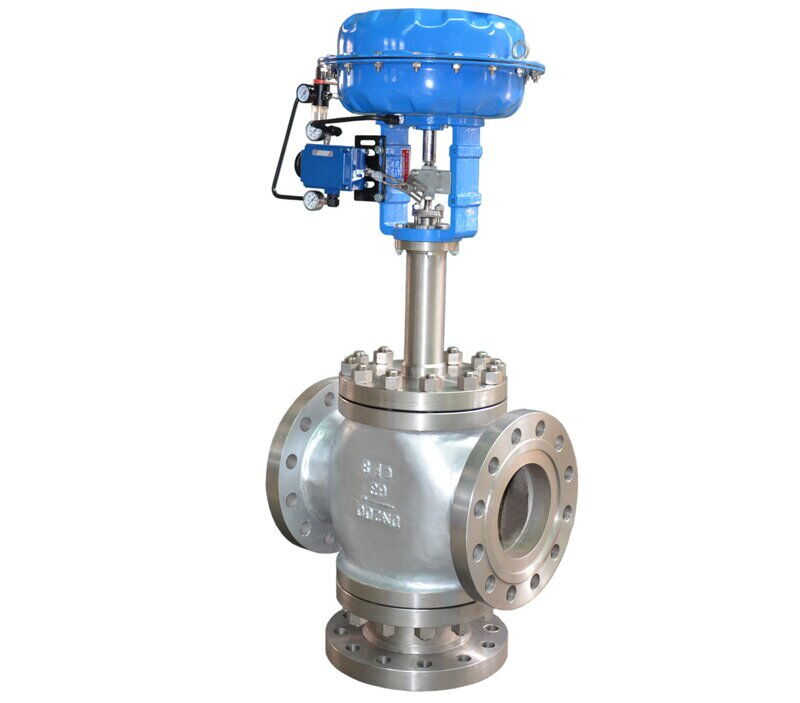

What makes the pneumatic 3-way globe valve especially effective is its actuation system. Controlled by compressed air, pneumatic actuators provide fast and reliable operation, making these valves perfect for real-time, dynamic control environments.
Unlike manual valves, pneumatic systems can respond automatically to system changes, directed by programmable logic controllers (PLCs) or distributed control systems (DCS). The result is not only improved accuracy but also reduced human intervention and enhanced safety.
Pneumatic 3-way globe control valves are engineered for durability and performance in demanding industrial settings. Some of the core structural and performance features include:
Built from corrosion-resistant materials such as stainless steel or alloy steel, ensuring long-term performance under harsh conditions.
Available in equal percentage or linear characteristic trims to match specific flow control requirements.
Offers excellent stability and vibration resistance, enhancing control accuracy and minimizing wear.
Easy disassembly and maintenance reduce downtime and maintenance costs.
Environmentally-friendly design minimizes fugitive emissions in compliance with global regulations.
Allows fine control over low flow rates while still handling high flow capacities when needed.
Ensures complete closure when required, preventing leaks or cross-contamination between ports.
Understanding the internal operation of a pneumatic 3-way globe valve sheds light on why it is so versatile in process control applications.
The valve includes three main ports typically labeled as:
Port A – Often used as the primary inlet.
Port B – Usually the outlet or secondary flow path.
Port AB or M – The common port connected to the internal chamber.
In a mixing scenario, fluid enters from Port A and Port AB (or M) simultaneously. The internal plug or disc guides the flow so that both streams blend within the valve body. The resulting mixed fluid exits through Port B. The actuator adjusts the valve plug to precisely control how much of each stream contributes to the final output, enabling accurate temperature or chemical concentration control.
When configured as a diverting valve, a single inlet (e.g., Port A) supplies the fluid, which is then directed to either Port B or Port AB based on the plug’s position. This allows the operator or automated system to route flow between two separate destinations without additional piping or manual intervention.
The universal design integrates both capabilities. Flow can enter from Ports A and AB and be diverted or mixed depending on the system’s needs. This configuration is ideal for complex processes requiring rapid shifts between flow routing and blending.
Pneumatic 3-way globe control valves are used across a wide range of industries, including:
Heating, Ventilation, and Air Conditioning (HVAC): For temperature regulation via mixing hot and cold water.
Chemical and Petrochemical Plants: For blending chemical reactants or routing fluids to different reactors.
Power Generation: For controlling steam flow in turbines and heat exchangers.
Food and Beverage Processing: For precise temperature and flow control in sterilization and mixing systems.
Water Treatment Facilities: For diverting water to different treatment stages or combining treated and untreated streams.
These valves are typically integrated with pneumatic actuators that receive signals from controllers based on parameters like flow rate, pressure, or temperature. The actuator adjusts the valve plug’s position accordingly, ensuring accurate and automated regulation of the process flow.
In modern systems, positioners are used to enhance precision, converting electrical signals into pneumatic pressure and providing feedback to ensure the valve’s actual position matches the desired one. Smart positioners also support diagnostics and remote monitoring, enabling predictive maintenance and efficient troubleshooting.
Fast Response Time: Pneumatic actuators operate quickly, ideal for systems needing rapid adjustments.
Fail-Safe Options: Spring-return actuators can be set to fail open or closed in case of power loss.
Cost-Effective Operation: Compared to electric or hydraulic actuators, pneumatic systems are often less expensive and easier to maintain.
Environmentally Friendly: Many modern valve designs feature low-emission packing to reduce environmental impact.
High Accuracy: Capable of fine flow regulation, especially when paired with smart controllers and positioners.
One of the standout benefits of pneumatic 3-way globe valves is their ease of maintenance. Their modular design allows technicians to remove and replace internal trim parts without taking the entire valve out of the line. This minimizes downtime and ensures the valve remains in peak working condition.
Routine maintenance includes checking actuator seals, inspecting trim wear, and verifying response calibration through the controller interface. With proper upkeep, these valves can last for decades, even in corrosive or high-pressure environments.
The pneumatic 3-way globe control valve is a robust, flexible, and high-performance solution for complex fluid management systems. With configurations for mixing, diverting, and universal flow control, these valves support a wide range of industrial applications — from simple HVAC circuits to advanced chemical processing systems.
Whether you need to blend two streams, redirect a flow, or do both simultaneously, this valve provides precision and reliability. Combined with the speed and responsiveness of pneumatic actuation, it remains an essential component in modern process automation and industrial control.
As industries continue to demand smarter and more energy-efficient systems, the role of pneumatic 3-way globe control valves will only become more central — offering accurate, efficient, and adaptive solutions to ever-evolving operational needs.
