In today’s automated industrial environments, efficiency, safety, and precision are paramount. One device that plays a crucial role in fluid control systems across various sectors is the electric globe control valve. Engineered for remote and precise regulation, this valve type combines the traditional benefits of a globe valve with the power and convenience of electric actuation. Whether in HVAC systems, chemical processing, or steam pipelines, electric globe valves are valued for their durability, control accuracy, and low maintenance requirements.
But what exactly is an electric actuated globe valve, how does it work, and what factors should be considered when selecting one? This article dives deep into the workings, selection criteria, and practical usage tips of electric globe control valves to help users make informed decisions and optimize their systems.

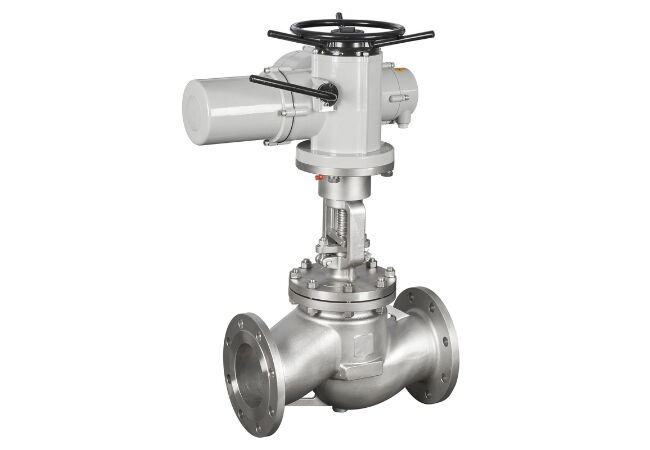

An electric actuated globe valve is a type of globe valve that utilizes an electric motor to open, close, or modulate the valve disc in response to control signals. This motor-driven mechanism replaces manual operation, allowing for seamless remote control via automated systems or manual switches.
The primary advantage of electric actuation lies in its automation and precision—ideal for operations where manual control is impractical, such as in hazardous areas or systems requiring constant monitoring and adjustment. These valves are commonly deployed in systems transporting water, steam, air, and other non-viscous, non-crystallizing fluids.

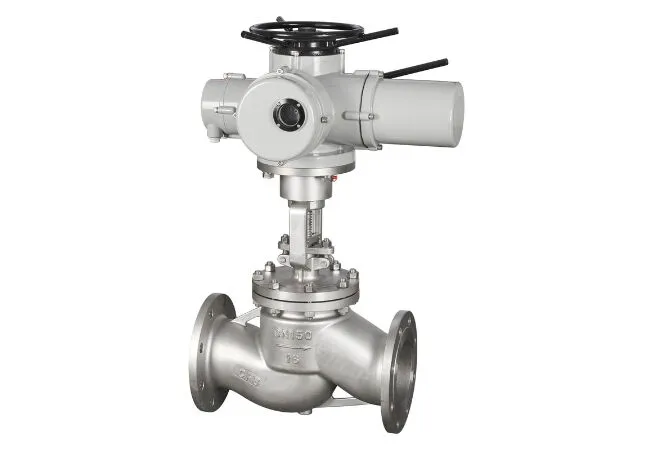

Electric globe valves operate through a straightforward yet reliable mechanism. At the core is a globe valve design—named for the spherical body shape—featuring an internal disc that moves up and down to regulate flow. In the electric version, an electric actuator drives the valve stem, which in turn raises or lowers the disc to either allow or block flow.
The actuator receives signals from a control unit, which can be part of a building management system (BMS), process control system, or simple control panel. As the actuator turns, it converts electrical energy into mechanical motion, positioning the valve to regulate fluid flow with high accuracy.
The valve’s open or closed status is typically indicated by the position of the stem—the more the stem is exposed, the more open the valve is. This visible cue is often used during manual checks and maintenance.
Selecting the right electric globe valve for your application requires careful consideration of several factors:
Common materials include:
Brass – Affordable and corrosion-resistant; suitable for low-pressure water or gas applications.
Stainless Steel – Highly durable and corrosion-resistant; ideal for aggressive fluids or sanitary applications.
Cast Iron – Cost-effective and strong; often used in HVAC and water systems.
Each material offers a unique set of advantages depending on the temperature, pressure, and chemical composition of the medium.
Standard sizes include 1/2 inch, 3/4 inch, and 1 inch, but valves are available in much larger dimensions for industrial applications. Proper sizing ensures optimal flow control and system efficiency. Undersized valves can lead to pressure drops, while oversized ones may result in poor modulation accuracy.
Pressure ratings like 150 PSI, 300 PSI, or 600 PSI indicate the maximum pressure the valve can handle. Select a valve that comfortably handles the maximum operating pressure of your system to ensure reliability and safety.
Electric actuators come with various control modes:
On/Off – For simple open/close functions.
Modulating (0–10V, 4–20mA) – For precise flow control based on feedback signals.
Select an actuator compatible with your control system's output to avoid integration issues.
To maximize lifespan and maintain performance, it’s important to observe these operational guidelines when using electric globe valves:
When first installing a valve, the pipeline may contain debris or welding residue. Start by partially opening the valve and allowing fluid to flush out contaminants at high velocity. Avoid slamming the valve shut during this process, as leftover particles may damage the sealing surfaces.
Before commissioning, check for leakage at the stuffing box and sealing surfaces. Ensuring a leak-free installation helps prevent early wear and enhances safety.
When the valve is fully opened, rotate the handwheel back slightly to ease stress on the stem threads. This helps reduce wear and prevent thread stripping over time.
In normally open applications, dirt may accumulate on sealing surfaces. Before fully closing the valve, repeat the initial flushing procedure to clean the surfaces, ensuring a tight shut-off without damaging the seat or disc.
If the handwheel or handle is damaged or missing, replace it immediately. Do not use makeshift tools like adjustable wrenches, as they may deform the stem or interfere with proper operation.
For systems handling steam or high-temperature fluids, thermal contraction can cause the valve to slightly open as it cools. Operators should check and retighten the valve after cooling to ensure a proper seal.
Before opening the valve in steam pipelines, ensure that condensate is drained to avoid water hammer. Gradually raise the system pressure (e.g., from 0.2 MPa to 0.3 MPa) to preheat the system and avoid thermal shock, which can damage seals and valve components.
Electric globe control valves are widely used across numerous industries thanks to their precise flow control and automation capabilities. Common application areas include:
HVAC Systems – To regulate heating and cooling loops.
Petrochemical Industry – For managing the flow of process fluids and gases.
Power Plants – Particularly in steam and water cycles.
Water Treatment Facilities – For automated flow and pressure regulation.
Pharmaceutical Manufacturing – Where clean-in-place (CIP) and sterile conditions require accurate, automated control.
Electric globe valves offer a broad range of advantages, such as:
Remote Operation – Ideal for inaccessible or hazardous locations.
Precise Flow Regulation – Especially important in modulating applications.
Reduced Maintenance – Electric actuators typically have fewer moving parts than pneumatic or hydraulic systems.
Integration with Digital Systems – Allows for seamless automation and monitoring.
In energy-intensive or precision-driven environments, these valves help optimize system efficiency while reducing human error.
The electric globe control valve stands out as a versatile and reliable solution in modern fluid control systems. Its ability to combine traditional valve strength with intelligent automation makes it a go-to choice in industries where efficiency, safety, and precision are non-negotiable.
Whether you're upgrading existing infrastructure or designing a new automated process, understanding how electric globe valves function—and how to use and maintain them effectively—can lead to significant gains in performance, safety, and operational convenience.
As demand grows for smarter, more efficient systems, electric globe control valves are poised to play an even greater role in the future of industrial automation.
