Introduction

Pneumatic control valve actuators play a critical role in managing the flow of air or gas in industrial processes. These devices regulate pressure, temperature, and flow rates to ensure smooth operation and maintain efficiency. However, when issues arise, they can lead to performance degradation, safety hazards, and increased operational costs. Regular maintenance is essential to ensure these actuators function efficiently and reliably. This comprehensive guide explores the types of pneumatic control valves, their maintenance strategies, and how to address common issues effectively.

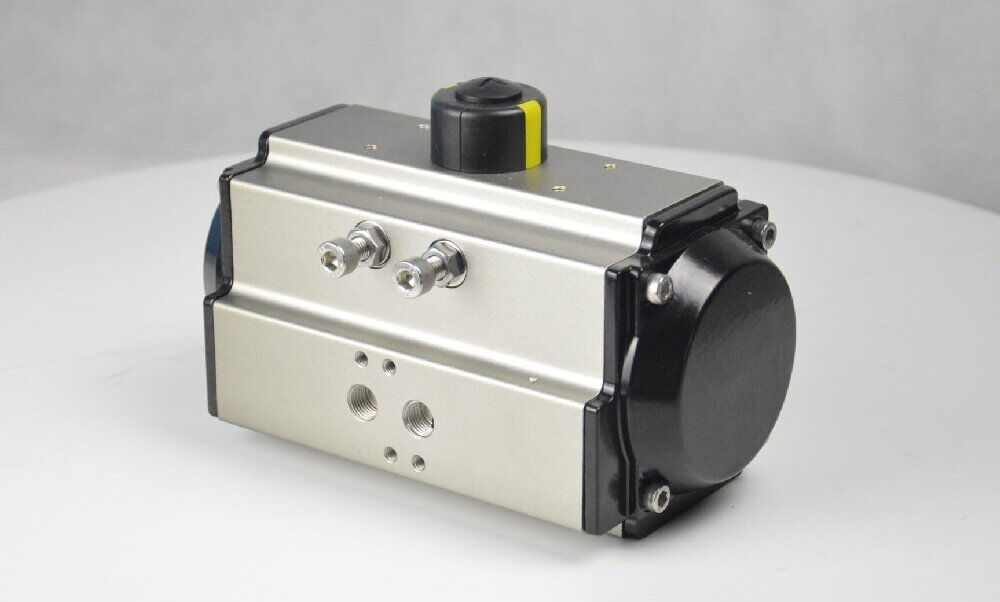

Pneumatic Actuator

Overview of Pneumatic Control Valves

Pneumatic control valves are essential components in industrial systems, utilizing compressed air to control the movement of valves. Their precise operation is vital for maintaining consistent control over process variables. These valves consist of a positioner and a pneumatic actuator, which work together to achieve accurate valve positioning.

Positioners convert signals, such as a 4-20 mA electrical current or a 3-15 psig air pressure, into specific valve positions by modulating the main air supply to the actuator. Some older systems use direct control diaphragm actuators without positioners, relying on variations in the air supply for operation. However, these are less precise than modern systems with advanced positioners.

To ensure optimal performance, pneumatic control valves require clean and dry air. Contaminants such as moisture or particles can impair their functionality, making routine inspection and maintenance critical.

Types of Pneumatic Control Valves

Different types of pneumatic control valves are designed to suit various applications, each offering unique advantages:

Directional Control Valves

Used to direct airflow into specific channels, controlling the direction of movement in actuators.

Pneumatic Ball Valves

Ideal for on-off control applications, offering fast and reliable operation with minimal pressure drop.

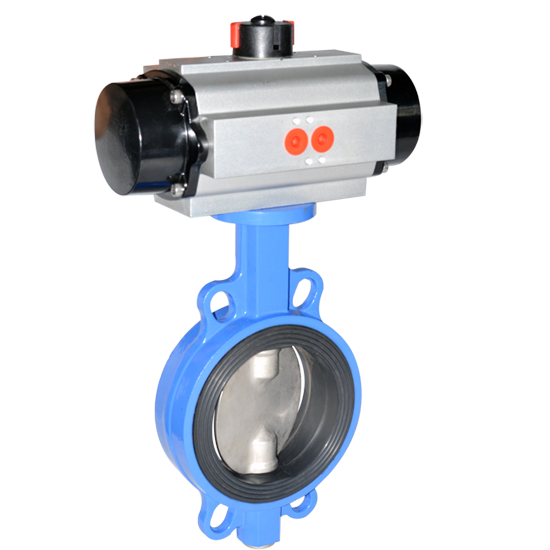

Pneumatic Butterfly Valves

Designed for regulating flow in pipelines, known for their compact size and lightweight construction.

Pneumatic Angle Seat Valves

Provide high flow rates and are often used in applications requiring rapid opening and closing.

Pinch Valves

Suitable for handling abrasive or corrosive materials, using a pinching mechanism to control flow.

Maintenance Strategies for Pneumatic Control Valves

Ensuring the longevity and efficiency of pneumatic control valves involves adopting the right maintenance approach. Three primary strategies are commonly used:

Run-to-Failure Maintenance

This approach involves using the valve until it breaks or becomes too unstable to maintain process control.

Disadvantages:

Risk of unexpected failures disrupting operations.

Increased repair costs due to damage to multiple components.

Often necessitates complete valve replacement.

Best for: Non-critical processes where downtime is acceptable.

Preventative Maintenance

Valves are removed from service at scheduled intervals for inspection and component replacement.

Steps:

Disassemble the valve to examine internal components.

Replace worn parts and install new soft goods (seals and gaskets).

Reassemble and return the valve to service.

Advantages:

Prolongs valve lifespan and ensures consistent performance.

Minimizes the risk of unexpected failures.

Challenges:

May involve unnecessary disassembly of functional valves.

Requires significant labor and resources.

Plants often keep a spare set of valves to rotate during maintenance cycles.

Predictive Maintenance

Modern smart positioners and software allow real-time monitoring of valve performance.

Key parameters monitored:

Valve stroke speed.

Torque or thrust required for operation.

Number of valve cycles.

Stiction (resistance to motion).

Advantages:

Enables early detection of issues, preventing complete failures.

Reduces unnecessary maintenance by focusing on valves nearing failure.

Provides alarms and alerts when parameters exceed acceptable limits.

Best for: Facilities equipped with advanced digital systems and requiring minimal downtime.

Importance of Clean and Dry Air

Contaminated air can lead to numerous issues in pneumatic control valves, such as sluggish performance, corrosion, and seal degradation. To maintain optimal functionality:

Install air filters to remove particulates.

Use dryers to eliminate moisture from the compressed air supply.

Conduct regular inspections to ensure air supply systems are free from contaminants.

Troubleshooting Common Issues

When problems arise with pneumatic control valves, identifying and resolving them promptly is crucial to avoid process disruptions. Common issues include:

Air Leaks

Signs: Hissing sounds or reduced actuator performance.

Solution: Inspect connections, tubing, and seals; replace damaged components.

Sluggish Operation

Causes: Contaminated air, inadequate lubrication, or worn seals.

Solution: Clean the actuator, ensure proper lubrication, and replace seals as needed.

Positioning Errors

Causes: Faulty positioners, misalignment, or electrical signal issues.

Solution: Calibrate the positioner, check signal integrity, and ensure proper alignment.

Actuator Sticking

Causes: Build-up of debris or corrosion in the actuator.

Solution: Disassemble and clean the actuator; consider upgrading to corrosion-resistant materials.

Advancements in Pneumatic Control Valve Maintenance

The integration of smart technologies has revolutionized valve maintenance. Digital positioners, advanced sensors, and networked systems offer:

Real-Time Monitoring

Continuously track valve performance to identify deviations.

Data Analytics

Use historical data to predict maintenance needs and optimize operations.

Remote Diagnostics

Access valve performance metrics remotely, reducing the need for on-site inspections.

These advancements enhance reliability and reduce overall maintenance costs.

Conclusion

Proper maintenance of pneumatic control valve actuators is essential for ensuring safe, efficient, and reliable operations in industrial settings. By understanding the types of valves, choosing the right maintenance strategy, and leveraging modern technologies, businesses can extend the lifespan of their valves, reduce downtime, and optimize performance.

Adopting a proactive approach to valve maintenance not only safeguards critical processes but also contributes to cost savings and operational efficiency. Whether through preventative or predictive maintenance, the key is to maintain a robust system that keeps your operations running smoothly.
