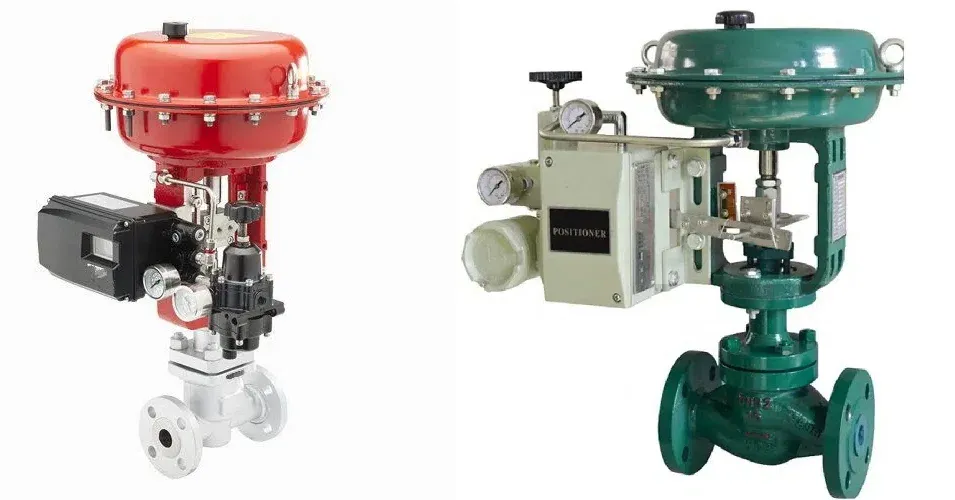

Single Seat vs. Cage Guided Globe Control Valves: An In-Depth Comparison

Single Seat vs. Cage Guided Globe Control Valves: An In-Depth Comparison

Single Seat vs. Cage Guided Globe Control Valves: An In-Depth Comparison
On this page

Introduction

Control valves play a pivotal role in industrial systems, ensuring precise regulation of fluid flow, pressure, and other parameters critical to maintaining efficient and safe operations. Among various types of control valves, globe control valves are particularly valued for their reliability and precision in throttling applications. Two widely used designs within this category are the single-seat globe control valve and the cage-guided control valve.

These valves are distinct in their construction, functionality, and application suitability. Understanding their differences and advantages can help engineers and operators select the best option for specific industrial requirements. This article provides an in-depth comparison of single-seat and cage-guided globe control valves, discussing their definitions, applications, structural features, and performance characteristics.

What is a Globe Control Valve?

A globe control valve is designed to regulate process flow through a linear motion of its closure member—typically a plug or disc—that moves into and out of contact with a seat surface. Named for its globular-shaped body cavity, the valve offers precise control over process variables when coupled with an actuator assembly.

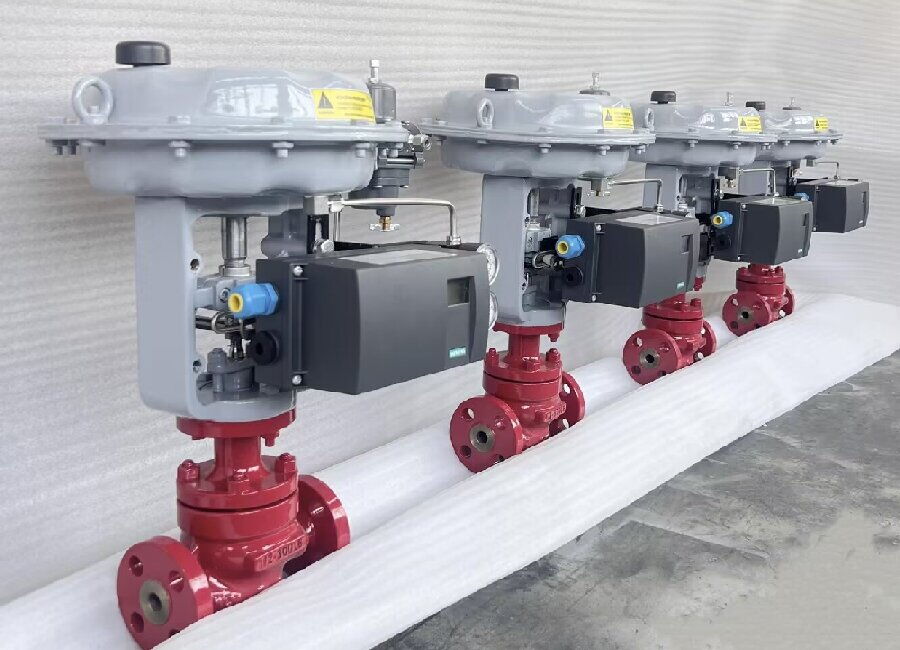

Globe Control Valves

Key characteristics of globe control valves include:

Linear Motion Mechanism

The valve plug moves in a straight line, enabling precise flow regulation.

Modifiable Design

Many globe valves feature a cage or retainer-style body that secures the seat ring, guides the valve plug, and allows for flow characteristic customization.

Adaptability

Trim components can often be replaced or modified to adjust flow capacity, reduce noise, or address cavitation issues.

These attributes make globe control valves indispensable in industries requiring high accuracy and reliability, such as power generation, chemical processing, and oil and gas.

Single Seat Globe Control Valve

Definition

The single-seat globe control valve features a trim design where components are interchangeable within the valve body. This modularity allows the valve to be adapted to a variety of liquid processes by swapping out specific trim assemblies.

Applications

Single-seat globe control valves are widely recognized for their simplicity and robust sealing performance, making them the most common type of control valve. They are suitable for:

Applications requiring tight sealing to prevent leakage.

Liquid and steam systems where precise flow regulation is essential.

Processes involving frequent adjustments in flow rates or characteristics.

Examples of use cases include:

1. Water Treatment Plants

Ensuring accurate dosing of chemicals and maintaining flow rates.

2. Steam Distribution Systems

Regulating steam flow to avoid pressure surges or drops.

3. Petrochemical Processes

Managing liquid and gaseous hydrocarbons with stringent sealing requirements.

Structural Features

The design of a single-seat globe valve prioritizes simplicity and reliability. Key features include:

Straightforward Trim Design: The valve plug and seat ring form the core flow control elements, and their sizes can be adjusted to meet specific flow requirements.

Unbalanced Force Handling: The fluid pressure acts on the entire surface area of the valve plug, creating an unbalanced force. This characteristic limits the valve’s capacity to handle high-pressure drops compared to balanced designs.

Tight Sealing: The valve’s design ensures a reliable shut-off, making it ideal for applications where leakage must be minimized.

However, this unbalanced force necessitates the use of larger actuators to maintain stability under high-pressure conditions, making the single-seat globe valve less efficient for certain high-pressure applications.

Cage Guided Control Valve

Definition

The cage-guided control valve incorporates a cage structure that guides the valve plug and provides balance against fluid pressure. This design is optimized for handling high-pressure drops, reducing noise, and mitigating cavitation. Like the single-seat valve, the cage-guided valve features interchangeable trims, enhancing its adaptability across different industrial applications.

Applications

Cage-guided control valves are commonly used in high-pressure environments where noise reduction and cavitation control are critical. Their typical applications include:

1. High-Pressure Steam Systems

Regulating flow in power plants and industrial boilers.

2. Cryogenic Processes

Managing extremely low-temperature fluids such as liquefied natural gas (LNG).

3. Chemical Processing

Controlling highly pressurized or volatile chemicals.

With a temperature range of -196°C to +538°C for metal-seated designs and -45°C to +200°C for soft-seated variants, cage-guided control valves are versatile enough to handle most industrial process requirements.

Structural Features

Cage-guided valves offer advanced design features that improve performance in demanding environments:

Balanced Plug Design: Ports in the valve plug allow fluid pressure to balance out, significantly reducing the unbalanced force. This balance enables the use of smaller actuators compared to single-seat valves.

Customizable Flow Characteristics: The cage structure can be replaced with different designs to achieve specific flow characteristics, enhancing control precision.

Noise and Cavitation Control: The cage design effectively disperses energy, reducing noise and minimizing cavitation in high-pressure drop scenarios.

Sliding Seal Mechanism: A sliding seal between the valve plug and cage prevents upstream fluid leakage, ensuring tight shut-off comparable to single-seat valves.

The ability to handle high-pressure drops while maintaining precise control makes cage-guided valves the preferred choice for challenging applications.

Key Differences Between Single Seat and Cage Guided Globe Control Valves

Aspect

Single Seat Globe Control Valve

Cage Guided Globe Control Valve

Sealing Performance

Tight sealing for stringent shut-off requirements.

Comparable tight sealing with enhanced balance.

Pressure Drop

Handling Limited due to unbalanced force on the valve plug.

Superior due to balanced plug design.

Noise & Cavitation

Less effective at mitigating noise and cavitation.

Designed to reduce noise and mitigate cavitation.

Trim Modularity

Adjustable trim for flow and characteristic changes.

Interchangeable cages for precise control tuning.

Actuator Size

Larger actuator required for high-pressure drops.

Smaller actuator sufficient due to balanced design.

Application Suitability

Best for low to moderate pressure applications.

Ideal for high-pressure, high-precision systems.



Factors to Consider When Choosing a Globe Control Valve

When selecting between single-seat and cage-guided globe control valves, several factors should be considered:

Pressure Conditions

Single-seat valves are suitable for low to moderate pressure applications, while cage-guided valves excel in high-pressure scenarios.

Flow Characteristics

Cage-guided valves offer more customization options for flow characteristics, making them ideal for precision applications.

Noise and Cavitation

For environments where noise reduction and cavitation control are critical, cage-guided valves are the better choice.

Actuator Requirements

Cage-guided valves require smaller actuators due to their balanced design, potentially reducing costs.

Maintenance and Serviceability

Both valve types offer interchangeable trims, allowing for easier maintenance and adaptability.

Conclusion

Globe control valves are indispensable components in industrial systems, offering unmatched precision and reliability. While single-seat valves are renowned for their simplicity and tight sealing, cage-guided valves stand out for their ability to handle high-pressure drops, reduce noise, and mitigate cavitation.

Selecting the right valve depends on the specific requirements of the application, including pressure conditions, flow characteristics, and environmental considerations. By understanding the strengths and limitations of single-seat and cage-guided globe control valves, industries can optimize their operations, ensuring efficiency, safety, and cost-effectiveness.

Both valve types exemplify engineering excellence, providing vital solutions across diverse industries such as power generation, chemical processing, and water treatment. As industrial demands continue to evolve, advancements in valve technology will further enhance their adaptability and performance, ensuring their continued relevance in the future.
