Pneumatic globe control valves are critical components in industrial systems, offering unmatched precision in controlling flow rates, pressure, and speed. These valves utilize pneumatic actuators to receive control signals, allowing them to execute precise movements to regulate flow. Their reliable operation, adaptability to diverse fluids, and robust construction make them indispensable in industries requiring efficient process control.

This article delves into the structure, working principles, benefits, and maintenance requirements of pneumatic globe control valves, shedding light on why they are vital in modern industrial automation.

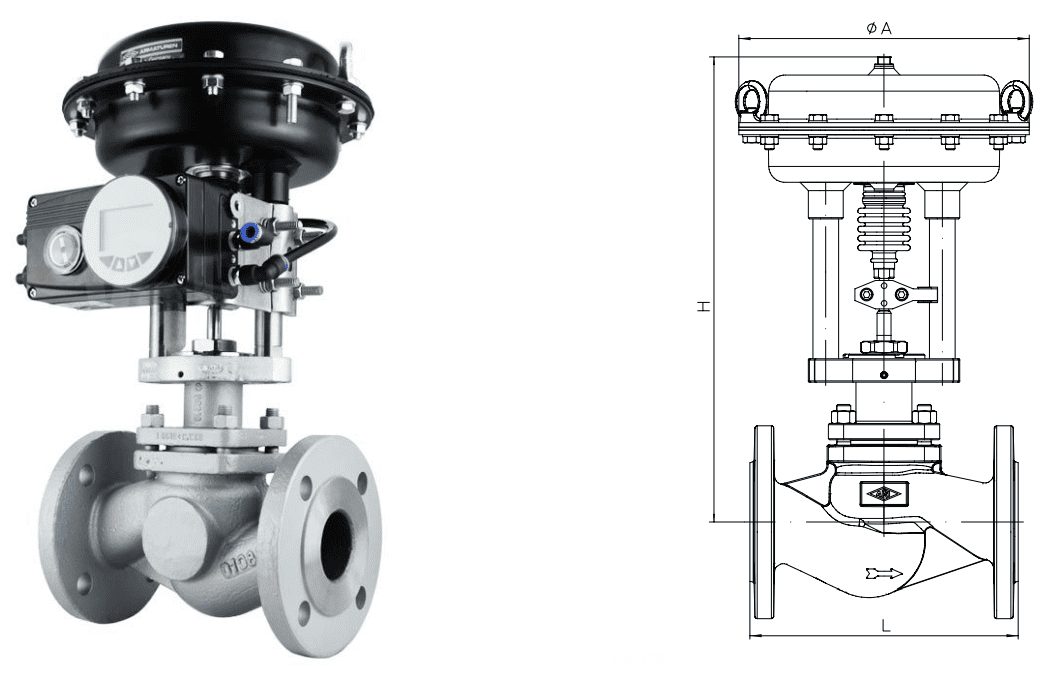

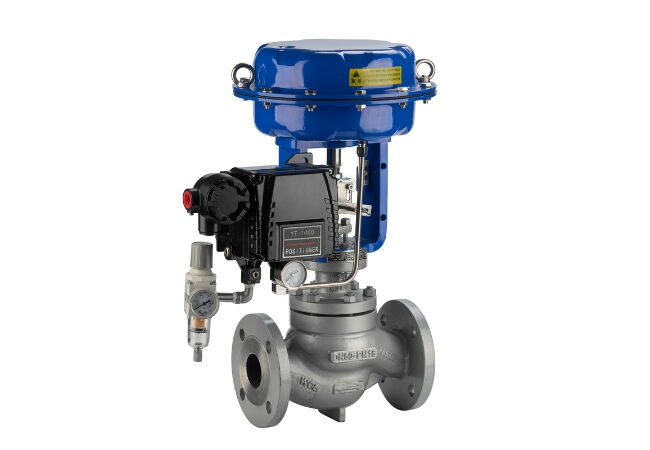

Pneumatic globe control valve

Structural Overview and Operating Principles

The functionality of a pneumatic globe control valve relies on its three operational cycles: the valve closing cycle, valve opening cycle, and regulating cycle. Each cycle serves a specific purpose, allowing the valve to meet the demands of complex industrial applications.

1. Valve Closing Cycle (Fully Closed)

The valve closing process begins when compressed air enters the actuator through a solenoid valve. This air pressure pushes the diaphragm or piston downward, overcoming the spring's opposing force. As a result, the valve stem moves to its fully closed position, ensuring complete shut-off and preventing any flow through the system.

2. Valve Opening Cycle (Fully Open)

The valve opening cycle is initiated when the solenoid valve stops supplying compressed air. This action allows the air to vent through the solenoid valve’s exhaust port. The spring’s stored energy then pushes the piston or diaphragm upward, lifting the valve stem and fully opening the valve. This cycle ensures the unobstructed passage of fluids or gases when required.

3. Regulating Cycle (Partially Open/Closed)

The regulating cycle allows for partial valve operation to achieve precise control over flow rates. In this cycle, compressed air is used to move the diaphragm or piston a shorter distance than the full stroke. This controlled movement opens or closes the valve disc to a specific degree, enabling operators to fine-tune flow rates and regulate system performance effectively.

Why Are Pneumatic Globe Control Valves Essential?

Pneumatic globe control valves provide a combination of precision, reliability, and adaptability, making them essential in various industrial processes. Here’s why they are indispensable:

1. Precise Flow Regulation

These valves excel in low-flow applications where tight control is essential. Their ability to adjust the valve disc with accuracy ensures consistent performance and minimal deviations in flow rates.

2. Leak Prevention

Pneumatic globe control valves are designed for tight shut-off, significantly reducing the risk of leaks. This feature enhances system efficiency and safety, particularly in critical operations.

3. Low Maintenance and Reliability

The straightforward design of these valves minimizes wear and tear, resulting in reduced maintenance requirements. Their durability ensures long-lasting performance, lowering operational costs.

4. Versatility

Pneumatic globe control valves are compatible with various media, including liquids, gases, and steam. Their ability to perform under different conditions makes them a valuable choice across diverse industries.

Applications in Industrial Automation

Pneumatic globe control valves are integral to automation systems where precise regulation of process parameters is critical. They operate in conjunction with other instruments to control:

Flow: Maintain consistent fluid or gas movement through pipelines.

Pressure: Adjust system pressure to prevent surges or drops.

Temperature: Regulate heat levels in thermal processes.

Level: Control fluid levels in storage tanks and reservoirs.

Industries such as chemical processing, oil and gas, power generation, and water treatment rely heavily on these valves for seamless operations. As the final control element in an automation system, their performance directly impacts productivity and safety.

Maintenance Best Practices for Pneumatic Globe Control Valves

Routine maintenance is crucial to ensure the optimal performance and longevity of pneumatic globe control valves. Proper handling and inspection prevent unexpected failures and maintain operational efficiency.

1. Preparation

Before initiating maintenance, workers must:

Use appropriate safety gear, including gas sniffers for detecting hazardous substances.

Coordinate with gas prevention teams for monitoring and supervision.

Turn off the gas supply and disconnect power sources to the valve.

2. Disassembly

Remove the positioner and gas source pipe carefully.

Detach the valve from its mounting position.

Inspect the connection between the plug and stem. If the connection pin is difficult to remove, use specialized tools for disassembly.

3. Cleaning and Inspection

Thoroughly clean all valve components to remove residue or buildup.

Check for signs of wear, corrosion, or damage on critical parts.

Lubricate gaskets and packing material to ensure smooth reassembly.

4. Reassembly

Begin assembly from the bottom, progressing upward systematically.

Grease all fastening bolts and packing material to facilitate future maintenance.

Ensure all components are securely fastened and aligned for optimal operation.

Calibration of Pneumatic Globe Control Valves

Calibration is a critical step to ensure that the valve operates precisely according to specifications. Proper calibration involves the following steps:

1. Determine Calibration Points

Select at least five points (e.g., 0%, 25%, 50%, 75%, and 100%) to measure the valve’s performance.

2. Input Control Signals

Gradually apply signals to the positioner corresponding to each calibration point.

3. Measure Travel Accuracy

Verify whether the valve stem’s movement aligns with the scale at each calibration point.

4. Adjust as Needed

If deviations are observed, repeat the process until the valve operates accurately.

Accurate calibration ensures the valve’s responsiveness and reliability in controlling critical processes.

Advantages of Pneumatic Globe Control Valves

The benefits of pneumatic globe control valves extend beyond precise flow regulation. Key advantages include:

Energy Efficiency

By preventing leaks and optimizing performance, these valves contribute to energy savings.

Enhanced Safety

Tight shut-off capabilities reduce the risk of hazardous leaks, ensuring workplace safety.

Cost-Effectiveness

Their robust construction and low maintenance requirements minimize long-term operational costs.

Customizability

These valves can be tailored to meet specific industry needs, providing flexibility in diverse applications.

Key Industries Benefiting from Pneumatic Globe Control Valves

Pneumatic globe control valves are indispensable in several industries, including:

Chemical Processing

Regulate the flow of reactive and corrosive substances.

Oil and Gas

Manage high-pressure fluids in pipelines and refineries.

Power Generation

Control steam flow for efficient energy production.

Water Treatment

Ensure precise regulation of water and wastewater processes.

Their adaptability and reliability make them a cornerstone of industrial automation and control.

Conclusion

Pneumatic globe control valves are more than just flow-regulating devices—they are vital components that enhance industrial efficiency, safety, and productivity. Their precise control capabilities, coupled with low maintenance requirements, make them a preferred choice across various sectors.

With proper maintenance and calibration, pneumatic globe control valves can deliver consistent performance and long-term reliability, ensuring seamless operation in complex industrial systems. For industries aiming to optimize their processes and reduce costs, investing in high-quality pneumatic globe control valves is a strategic decision that promises exceptional returns.
