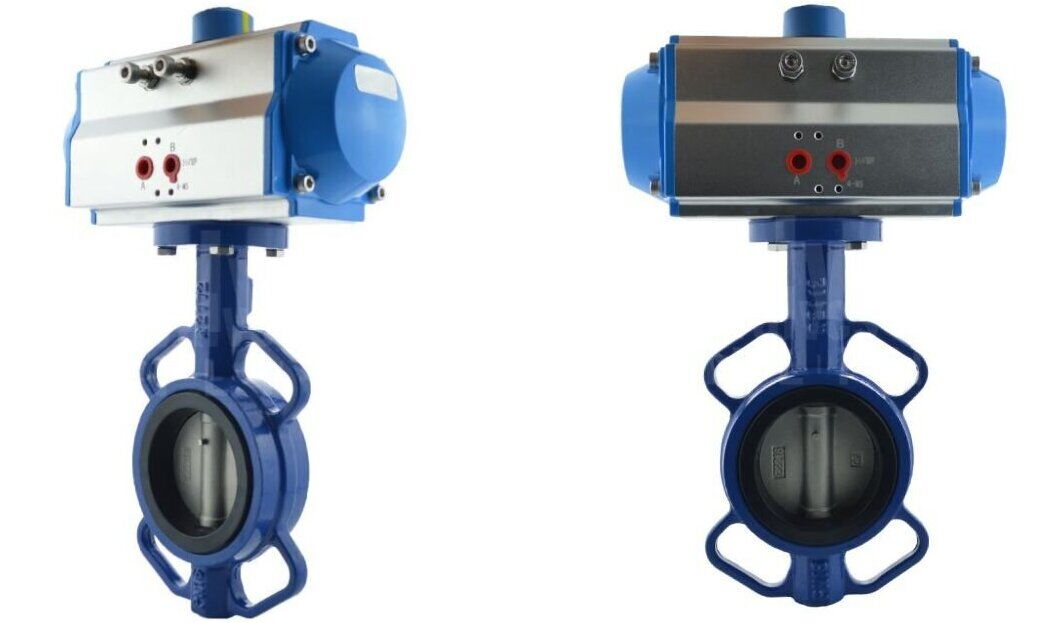

Introduction to Pneumatic Butterfly Valves
A pneumatic butterfly valve is a critical component in industrial systems, designed to control the flow of fluids or gases using compressed air. Its unique mechanism involves a rotating disc or plate that moves 90 degrees to either allow or block the passage of media through a pipe. Known for their simplicity, reliability, and efficiency, pneumatic butterfly control valves are widely utilized in industries such as chemical processing, pharmaceuticals, food and beverage production, water treatment, and more.
These valves are particularly suited for applications in remote or hazardous locations, where manual operation may not be practical or safe. Their ability to manage large valve sizes more cost-effectively than electric actuators further enhances their appeal. Available in various configurations, including lug or wafer connection styles, pneumatic butterfly valves offer flexibility and adaptability for diverse industrial applications.
Working Principle of Pneumatic Butterfly Valves
At the heart of a pneumatic butterfly valve is a flat circular disc that serves as the closure element. This disc rotates around a central axis, either allowing or restricting flow within the pipeline. The movement of the disc is controlled by a pneumatic actuator, which uses compressed air to execute the opening or closing motion.
Open Position: When the valve is in the open position, the disc aligns parallel to the flow direction, creating an unobstructed pathway for the media. This ensures a smooth and efficient flow with minimal pressure drop.
Closed Position: In the closed position, the disc rotates perpendicular to the flow direction, effectively sealing off the passage and preventing further movement of fluids or gases.
This simple yet effective mechanism provides excellent control over the flow rate, making pneumatic butterfly valves an indispensable tool for managing industrial pipelines.
Key Features and Advantages of Pneumatic Butterfly Valves
Pneumatic butterfly valves stand out due to several features and benefits:
Durability and Reliability
The robust design ensures long service life even in demanding environments.
Cost-Effectiveness
Compared to electric actuators, pneumatic actuators offer a lower investment cost for managing large valves.
Compact Design
Their relatively small size and lightweight structure make them easy to install and maintain.
Excellent Sealing Properties
The design ensures minimal leakage and optimal sealing performance.
Quick Operation
The pneumatic actuator facilitates rapid opening and closing, enhancing operational efficiency.
Versatile Applications
With various housing materials, seals, and sizes available, these valves can be tailored to meet specific industry requirements.

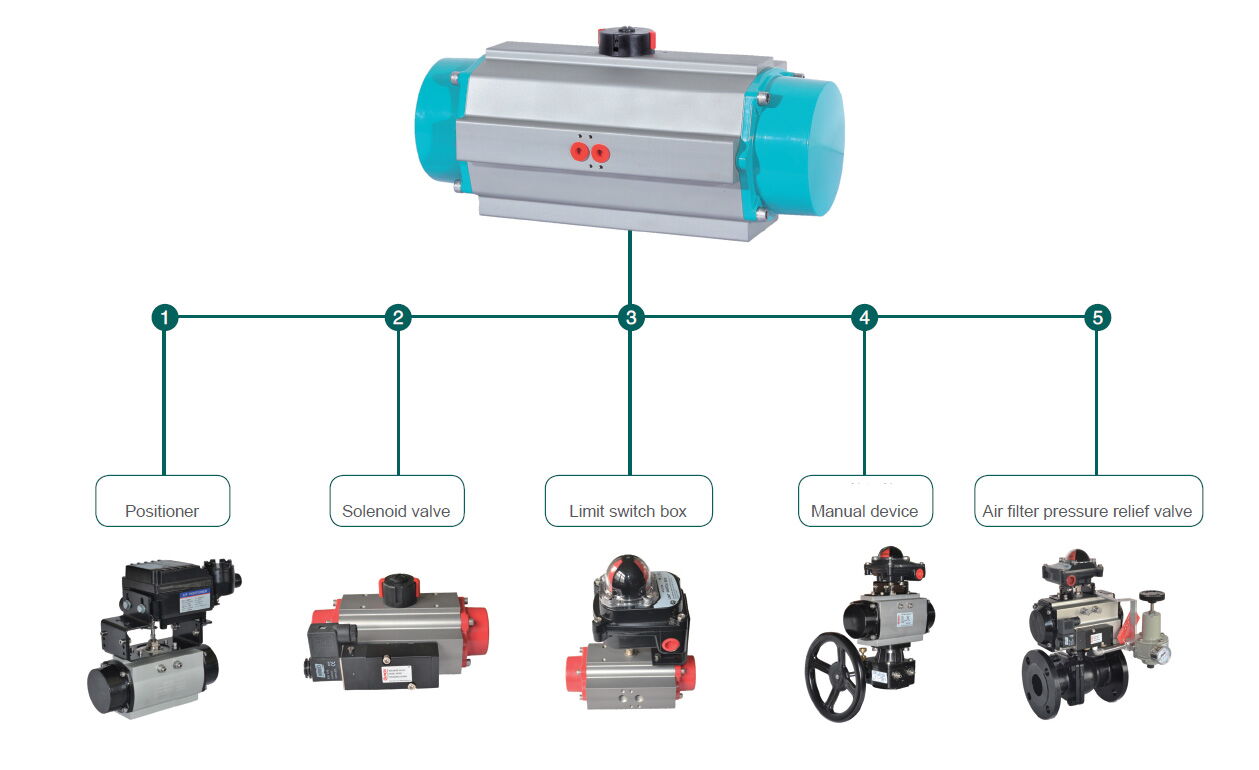

Accessories for Pneumatic Butterfly Valves
To ensure optimal functionality, several accessories are used in conjunction with pneumatic butterfly valves. These accessories play a crucial role in enhancing performance and operational efficiency.
1. Actuators

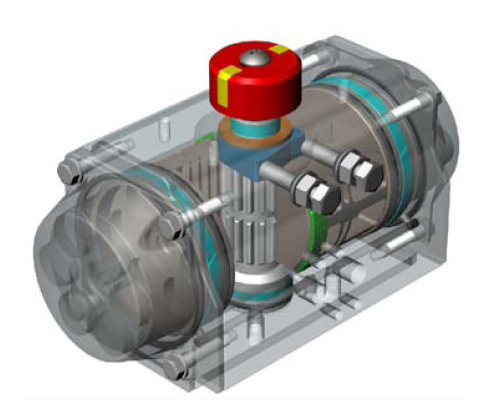

Pneumatic actuators provide the force needed to operate the butterfly valve. They can be:
Single-Acting Actuators: Utilize a spring mechanism to return the valve to its default position when compressed air is released.
Double-Acting Actuators: Rely solely on compressed air for both opening and closing actions, offering precise control.
2. Limit Switches
Limit switches monitor and indicate the valve's position, ensuring it is fully open or closed.
Reed Switches: Detect position changes using a magnetic field.
Proximity Switches: Use sensors to provide non-contact position detection.
These switches are essential for automated systems, providing feedback to control units like PLCs.
3. Pneumatic Solenoid Valves
Solenoid valves regulate the flow of compressed air to the actuator. They work by using an electrical current to create a magnetic field that moves a plunger, opening or closing the valve. Solenoid valves offer precise control and are vital for automating the valve's operation.
4. Fieldbus Controllers
These advanced devices enable communication between the valve assembly and a central control system, facilitating seamless integration into modern industrial networks.
Applications of Pneumatic Butterfly Valves
Pneumatic butterfly valves are versatile and find applications in a wide range of industries:
Chemical Industry
Used for handling corrosive and hazardous chemicals.
Pharmaceutical Industry
Ensures precise flow control in processes requiring high hygiene standards.
Food and Beverage
Maintains the quality and consistency of products by providing reliable flow regulation.
Water Treatment
Controls the flow of water in filtration, desalination, and distribution systems.
Power Generation
Plays a vital role in managing steam, gas, and cooling water flows.
Materials and Design Variations
To meet the diverse needs of industrial applications, pneumatic butterfly valves are manufactured using various materials and design standards:
Materials
Carbon Steel (ASTM A216 WCB): Ideal for general-purpose applications.
Stainless Steel (ASTM A351 CF8/CF8M): Offers corrosion resistance for aggressive environments.
Aluminum Bronze (ASTM B148 C95800): Suitable for seawater applications.
Design Standards
API 6D: Ensures full-bore design for minimal pressure drop.
BS 1868: Provides guidelines for standard bore designs.
DIN 3352: Covers European standards for valve construction.
Future Trends in Pneumatic Butterfly Valve Technology
As industries evolve, so do the technologies behind pneumatic butterfly valves. Innovations in smart automation and Industry 4.0 integration are transforming traditional valve systems. Modern pneumatic butterfly valves are increasingly equipped with intelligent actuators, sensors, and real-time monitoring capabilities, enabling predictive maintenance and enhanced operational efficiency.
Additionally, advancements in material science are paving the way for valves with superior resistance to extreme temperatures, pressures, and chemical exposure. The adoption of eco-friendly and energy-efficient designs is also gaining traction, aligning with global sustainability goals.
Conclusion
Pneumatic butterfly valves are indispensable in modern industrial processes, offering a reliable and cost-effective solution for flow control. Their versatility, durability, and ease of automation make them a preferred choice across various industries. By combining robust construction with advanced accessories and materials, these valves ensure optimal performance and long-term reliability.
Whether in chemical processing, water treatment, or food production, pneumatic butterfly valves continue to play a vital role in enabling efficient and safe operations. As technology advances, their functionality and adaptability are set to reach new heights, further solidifying their position as a cornerstone of industrial automation.
