Introduction

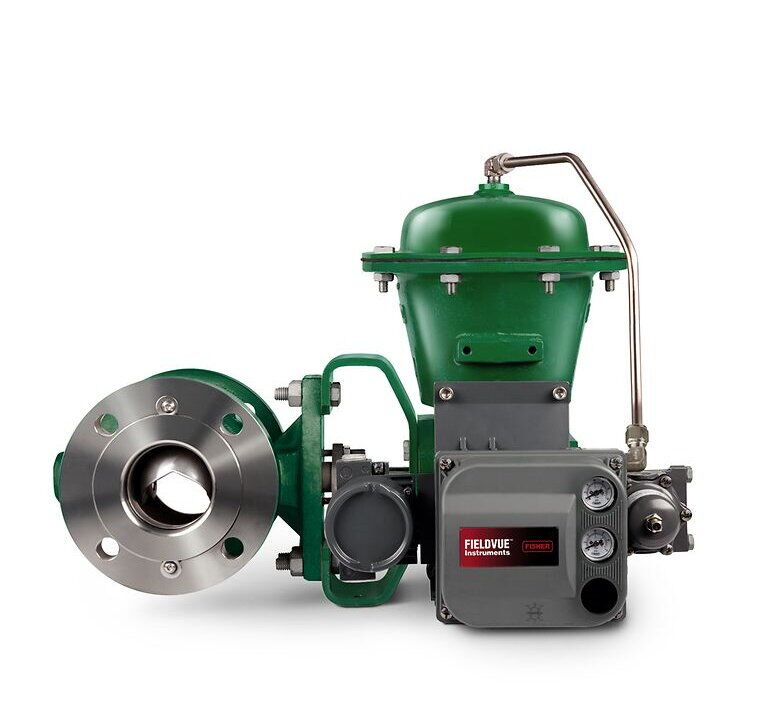

Segmented V-port ball control valves are a pinnacle of engineering excellence, designed to offer unparalleled modulating control across a diverse range of industrial applications. Their obstruction-free architecture, combined with precise flow control capabilities, makes them an ideal solution for industries dealing with complex fluid dynamics. This article delves deep into the features, design, construction, and applications of these advanced control valves, highlighting their significance in modern industrial processes.

Key Features and Benefits

Superior Modulating Control

The segmented V-port ball control valve is engineered to deliver precise modulating control. The unique compound V-shaped opening ensures equal percentage flow control. This means the valve can manage small incremental flows efficiently at lower rotations and provide high flow capacity as the valve nears its fully open position. Such versatility ensures optimal performance in a wide range of applications.

Obstruction-Free Design

One of the standout features of this valve is its obstruction-free design. This minimizes the risk of plugging or clogging, making it highly reliable for fluids containing fibers, particles, or other suspended solids. The recessed bearings further enhance its ability to handle challenging materials, ensuring seamless operation even in demanding environments.

Robust Uni-Body Construction

The uni-body construction provides several advantages, including increased structural integrity and reduced potential for leaks through body joints. This design not only enhances the valve’s durability but also simplifies maintenance, making it a cost-effective choice for long-term use.

Design and Construction

Versatile Fluid Control

The valve’s design is tailored to handle a wide variety of fluids, including:

Fibers

Dirty, clean, viscous, and corrosive fluids

Gases

Steam

Chemical fluids with suspended solids

Pulp and paper slurries

Its ability to manage such diverse media makes it a versatile solution for numerous industrial sectors.

High Flow and Low Pressure Drop

The segmented V-port ball valve is designed to achieve high flow rates while maintaining low pressure drops. This efficiency is critical in processes requiring high throughput without compromising energy consumption or performance.

Temperature and Corrosion Resistance

The valve’s construction materials are carefully selected to withstand extreme temperatures and corrosive environments. This makes it suitable for applications involving aggressive chemicals, high-temperature steam, and other challenging conditions.

Actuation and Accessories

To further enhance its functionality, the valve can be paired with a range of actuators and accessories, including:

Pneumatic, electric, or hydraulic actuators

Positioners for precise control

Limit switches and transmitters for monitoring

This flexibility allows users to customize the valve for specific operational requirements.

Applications of Segmented V-Port Control Valve

The segmented V-port ball control valve’s advanced features and robust design make it indispensable across various industries. Here are some of its primary applications:

Pulp and Paper Industry

The valve’s ability to handle fibers and slurries with ease makes it a preferred choice in pulp and paper manufacturing. Its obstruction-free design ensures smooth operation, even in processes involving high solid content.

Chemical Processing

In the chemical industry, fluids often contain suspended solids or are highly corrosive. The segmented V-port valve’s corrosion-resistant materials and precise flow control make it ideal for these demanding applications.

Oil and Gas

The valve’s ability to manage gases and viscous fluids efficiently is critical in the oil and gas sector. Its robust construction ensures reliability in high-pressure and high-temperature environments.

Steam Applications

The valve’s resistance to high temperatures makes it suitable for steam control in power generation and other industrial processes. Its low-pressure drop design enhances efficiency in steam systems.

General Industrial Use

From managing dirty and clean fluids to controlling processes with high flow requirements, the segmented V-port ball valve finds utility in a wide array of general industrial applications.

Advantages in Industrial Processes

Enhanced Process Efficiency

The precise control offered by the segmented V-port valve helps optimize industrial processes, reducing waste and improving overall efficiency. Its high flow capacity and low pressure drop further contribute to operational cost savings.

Reduced Downtime

Thanks to its clog-resistant design and durable construction, the valve requires minimal maintenance. This translates to reduced downtime and increased productivity in industrial settings.

Customization Options

The availability of various actuation and accessory options allows for tailored solutions to meet specific process requirements. This adaptability makes the valve a versatile choice for diverse applications.

Conclusion

The segmented V-port ball control valve stands out as a reliable and efficient solution for controlling a wide range of fluids in industrial processes. Its obstruction-free design, robust construction, and precise flow control capabilities make it a valuable asset across industries like pulp and paper, chemical processing, oil and gas, and more. By integrating advanced engineering with practical functionality, this valve continues to set new benchmarks in performance and reliability.
