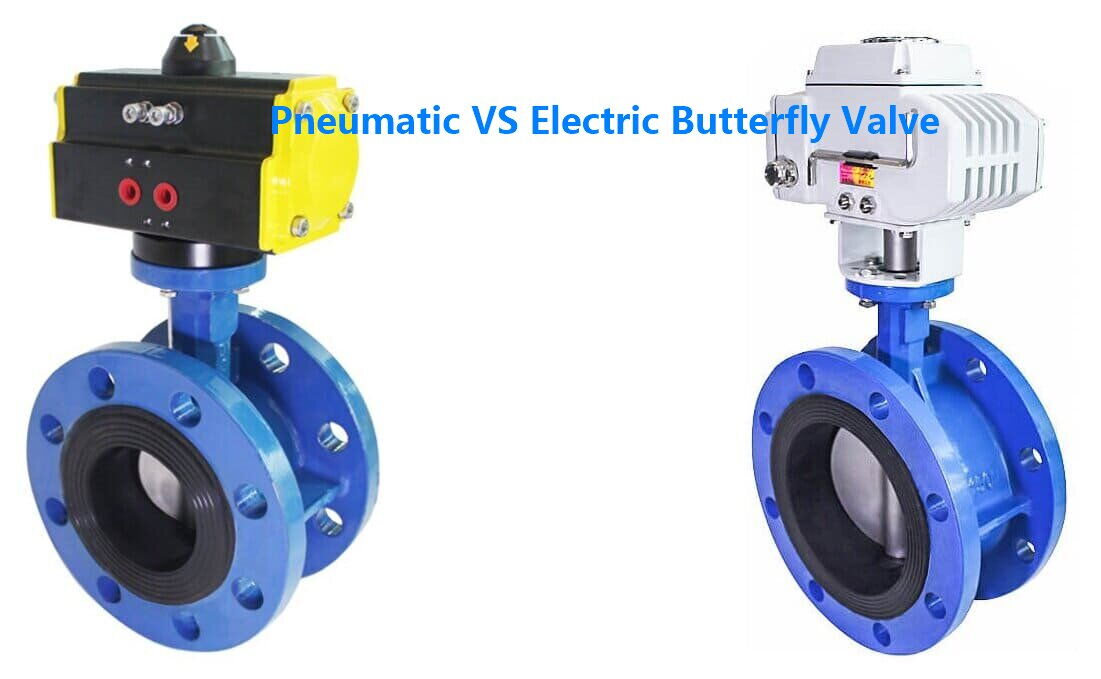

In industrial applications, butterfly valves are widely used due to their compact design, ease of operation, and versatility in controlling various fluids. Among the most common types are pneumatic butterfly valves and electric butterfly valves, each offering unique characteristics that make them suitable for different operational needs. Understanding the differences between these two valve types is essential for selecting the most appropriate solution for specific industrial requirements. This article delves into their features, advantages, disadvantages, and suitable applications.

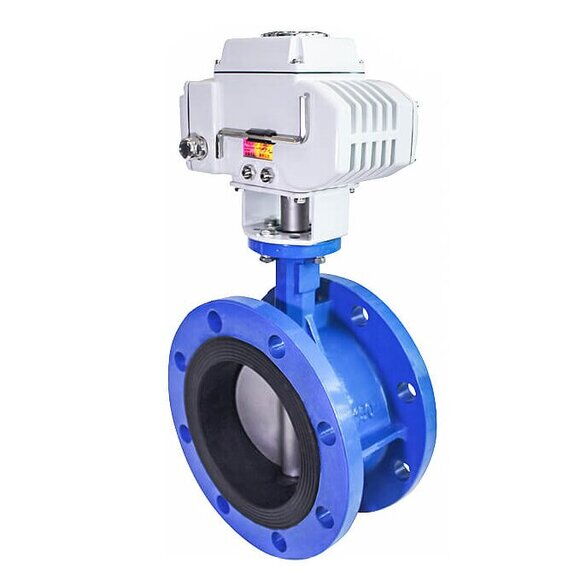

Electric butterfly valves use electric actuators as their driving mechanism, enabling precise and automated control of fluid flow. These valves are compatible with various voltage levels, such as alternating current (AC) 380V or direct current (DC) 24V, making them versatile for different industrial settings. Equipped with an intelligent control module, electric butterfly valves can accept 4-20 mA signals, allowing for accurate adjustment of control flow.
Electric butterfly valves offer high levels of automation and can be integrated with advanced control systems, including PLCs (Programmable Logic Controllers).
Many electric actuators feature manual override capabilities, enabling manual operation in the event of a power outage.
These valves can handle higher torque, making them suitable for demanding applications such as chemical, metallurgical, and petroleum industries.
Electric butterfly valves take approximately 30-50 seconds to open or close fully, which may not be ideal for applications requiring quick operation.
The intricate design of electric actuators makes them more prone to precision-related issues and potential maintenance challenges.
These valves may not perform optimally in extreme conditions, such as areas with high humidity or exposure to corrosive substances.
Electric actuators are generally more expensive compared to pneumatic counterparts due to their advanced features and complex design.
Pneumatic butterfly valves rely on compressed air as their power source, utilizing a circular butterfly plate that rotates with the stem to regulate or shut off fluid flow. These valves are often chosen for applications requiring quick response times and safe operation in hazardous environments.
Pneumatic butterfly valves have a compact and lightweight structure, making them easy to install and maintain.
Pneumatic actuators enable quick opening and closing of the valve, which is crucial for applications involving combustible gases or ventilation systems.
Since they do not rely on electrical circuits, pneumatic butterfly valves are inherently explosion-proof and safe for use in hazardous environments.
Available in various materials and configurations, such as stainless steel, carbon steel, and cast iron, these valves can handle a wide range of applications.
Pneumatic butterfly valves require a reliable supply of compressed air, which can be a limitation in remote or resource-constrained environments.
While adequate for most applications, pneumatic actuators may struggle with extremely high-torque requirements.
Electric Butterfly Valve: Operated using an electrical power source, often integrated with advanced control systems for remote and automated operation. These valves are ideal for precise flow control but have slower response times.
Pneumatic Butterfly Valve: Operated using compressed air, with faster response times suitable for applications requiring quick actuation. However, they lack the precision of electric valves in flow regulation.
Electric Butterfly Valve: High degree of automation and compatibility with modern control systems, including remote operation via PLCs. Ideal for industries such as petrochemical, where precise control is critical.
Pneumatic Butterfly Valve: Can be automated using solenoid valves and other pneumatic components, but the level of integration and control is typically less sophisticated than electric valves.
Electric Butterfly Valve: Higher initial cost and maintenance requirements due to the complexity of electric actuators.
Pneumatic Butterfly Valve: Lower cost and simpler maintenance, but requires investment in a reliable compressed air supply system.
Electric Butterfly Valve: Can be used in a wide range of environments but may pose safety risks in explosive or highly corrosive atmospheres.
Pneumatic Butterfly Valve: Safer for explosive environments, as they eliminate the risk of electrical sparks. Reliable operation in harsh conditions.
When to Choose a Pneumatic Butterfly Valve:
Ideal for industries handling combustible gases, such as natural gas or coal gas.
Suitable for applications requiring quick opening and closing, such as ventilation systems.
Preferred for projects with budget constraints or less demanding operational requirements.
When to Choose an Electric Butterfly Valve:
Ideal for industries requiring precise flow regulation, such as chemical processing or water treatment plants.
Suitable for facilities with high levels of automation, where remote control and monitoring are essential.
Recommended for environments where a compressed air source is unavailable or impractical to install.
When selecting between pneumatic and electric butterfly valves, consider the following factors:
Determine whether compressed air or electricity is more accessible and reliable in the application area.
For applications requiring rapid actuation, pneumatic valves are the better choice.
Opt for electric valves when precise flow control is paramount.
Evaluate the operating environment, including temperature, humidity, and the presence of corrosive or explosive substances.
Consider the initial investment, maintenance requirements, and long-term operational costs.
Both pneumatic and electric butterfly valves have unique strengths and limitations that make them suitable for different industrial applications. Pneumatic butterfly valves excel in speed, simplicity, and safety, making them ideal for hazardous environments and quick-actuation scenarios. Electric butterfly valves, on the other hand, offer high precision, advanced automation, and versatility, which are crucial for industries with complex control requirements.
Selecting the right valve type depends on a thorough assessment of the working environment, operational needs, and budget constraints. By understanding these differences and application scenarios, users can ensure optimal performance and efficiency in their industrial processes.
