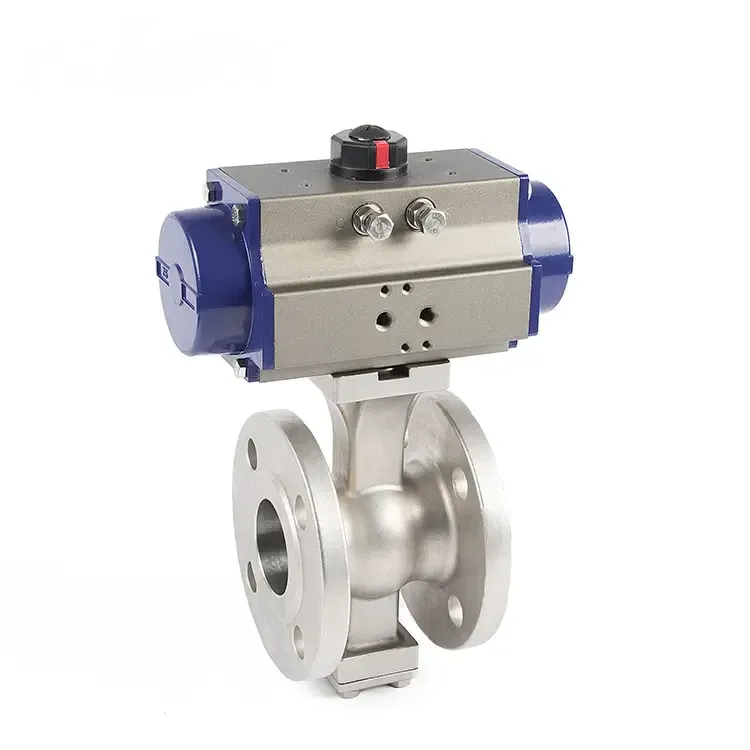

Pneumatic piston actuators are workhorses of the industrial world, converting compressed air into linear motion that drives countless applications—from controlling valves in chemical plants to powering automation systems in manufacturing. At the heart of their smooth operation are internal seals that maintain air pressure and prevent leaks. Over time, these seals wear out due to repeated cycles, environmental factors, or lack of lubrication. Replacing them is a critical maintenance task that, when done correctly, restores efficiency and extends equipment life.
Whether you’re a maintenance technician, an engineer, or an operator responsible for plant uptime, knowing how to replace actuator seals is an essential skill. In this article, we provide a comprehensive guide on how to safely and effectively replace seals in a pneumatic piston actuator—step by step.
Seals in pneumatic actuators serve two key purposes: they retain air pressure inside the actuator chamber and prevent contaminants like dust or moisture from entering the system. When seals degrade, it leads to air leaks, loss of pressure, inconsistent movement, or complete actuator failure.
Timely replacement not only ensures system integrity but also prevents costly downtime. Regular maintenance, including seal replacement, is part of predictive maintenance strategies adopted across various industries today.
Before diving into the procedure, it’s crucial to have the right tools and replacement parts at hand. Here's a basic checklist:
Replacement seal kit (matched to the actuator model)
Wrenches and Allen keys (for disassembly)
Screwdrivers (flathead and Phillips)
Soft pliers or seal puller
Clean lint-free cloths
Non-abrasive solvent or industrial cleaner
Pneumatic-safe lubricant or grease
Torque wrench (if specified by manufacturer)
It’s also helpful to have a clean workbench or workspace where components can be laid out systematically.
Safety is paramount. Start by isolating the actuator from the compressed air source. Shut off the main air supply and ensure all residual pressure within the actuator is safely released. You can verify depressurization by gently cracking open a fitting or using a pressure gauge.
Once confirmed, disconnect the actuator from any connected valve or linkage, if applicable. Place warning signs if the unit is part of a larger system, to alert others that maintenance is in progress.
Pro Tip: Wear appropriate PPE such as gloves and safety goggles during the entire procedure.
Before opening the actuator, take a few clear photos from different angles. These visuals will help you remember the exact orientation of parts during reassembly, especially if the actuator is complex or unfamiliar.
If the actuator is part of a valve assembly, note the actuator's position relative to valve travel to ensure proper recalibration after reassembly.
Begin by removing the end caps, typically held in place by bolts or screws. Carefully loosen them using the appropriate wrench or Allen key. Some end caps may require gentle tapping to break free from their seal, especially if they haven’t been opened in a while.
Once the end caps are off, you’ll gain access to the piston and rod assembly. Slide the piston out carefully, being mindful not to scratch the cylinder bore. Arrange components in order as you remove them—this organization will save time later.
Inspect the piston and internal grooves where seals are located. Use a seal puller or soft pliers to gently remove the worn-out seals. Avoid using sharp metal tools that might gouge the grooves or damage the piston surface.
Seals are usually located on:
The piston (main piston seal)
The piston rod (rod seal and wiper)
Internal grooves (static or dynamic seals)
Note the orientation of each seal—some have directional lips that must be reinstalled correctly to function.
Once all seals are removed, clean the piston, bore, and seal grooves using a non-abrasive solvent. Lint-free cloths are ideal for wiping down surfaces. Remove all debris, oil residues, or corrosion.
Important: Ensure that no solvent remains trapped inside the actuator body, as it could contaminate the new lubricant or degrade new seals.
Take this opportunity to inspect the actuator’s internal components. Check the piston rod for scoring, the cylinder bore for wear, and any metal surfaces for signs of corrosion or pitting. If you find any significant damage, consider replacing the entire actuator or ordering the necessary spare parts before proceeding.
Apply a thin, even layer of pneumatic-compatible grease to the new seals. This helps reduce friction during installation and ensures they seat properly without twisting or rolling.
Carefully install each seal into its respective groove. Make sure it fits snugly and maintains its shape. Double-check the orientation of directional seals.
Pro Tip: Some seal kits come with plastic installation tools to aid insertion—use them if available.
Begin reassembly by carefully reinserting the piston into the cylinder bore. Ensure it's aligned with the correct side and that the rod moves smoothly through the bore.
Reattach the end caps, tightening bolts in a crisscross pattern to evenly distribute pressure. If the manufacturer provides torque specifications, use a torque wrench to avoid over-tightening.
Reinstall any mounting brackets or couplings that were removed.
With the actuator fully assembled, reconnect it to the air supply. Pressurize the actuator slowly and observe for any irregular movement or hissing sounds that indicate air leaks.
Cycle the actuator several times to allow the seals to seat properly and check its stroke and responsiveness. Use soapy water on joints and seal areas if necessary to spot micro-leaks.
If any leaks are present:
Recheck the torque on bolts
Inspect the seals again
Ensure no seals were installed backwards or pinched
Once verified, return the actuator to its operational position.
Follow Manufacturer Guidelines: Always refer to the specific actuator's manual for detailed instructions. Seal kits often vary by model, and so do the reassembly torques and lubrication requirements.
Use Quality Seals: Cheap seals may not handle pressure or temperature changes effectively. Always use high-quality or OEM-specified seals.
Keep a Log: Document the maintenance date and parts replaced. This helps schedule future servicing and supports predictive maintenance planning.
Train Your Team: If you’re managing a team, ensure all technicians understand proper seal handling and installation techniques to avoid premature failure.
Skipping Cleaning: Installing new seals on dirty surfaces reduces seal life drastically.
Over-lubrication: Too much grease can create hydro-lock or interfere with movement.
Wrong Seal Orientation: Many dynamic seals are directional—installing them backward results in leaks.
Ignoring Small Leaks: Small leaks often indicate a larger issue like misalignment or improper seal seating.
Replacing seals in a pneumatic piston actuator may seem daunting at first, but with the right approach and attention to detail, it’s a straightforward process. By following the step-by-step procedure outlined above, you can ensure a reliable seal change that restores full functionality to your actuator and prevents operational downtime.
Seal maintenance is more than a repair—it’s an investment in your equipment’s performance and longevity. With regular checks, proper installation practices, and quality replacement parts, your pneumatic actuators will continue running smoothly for years to come.
