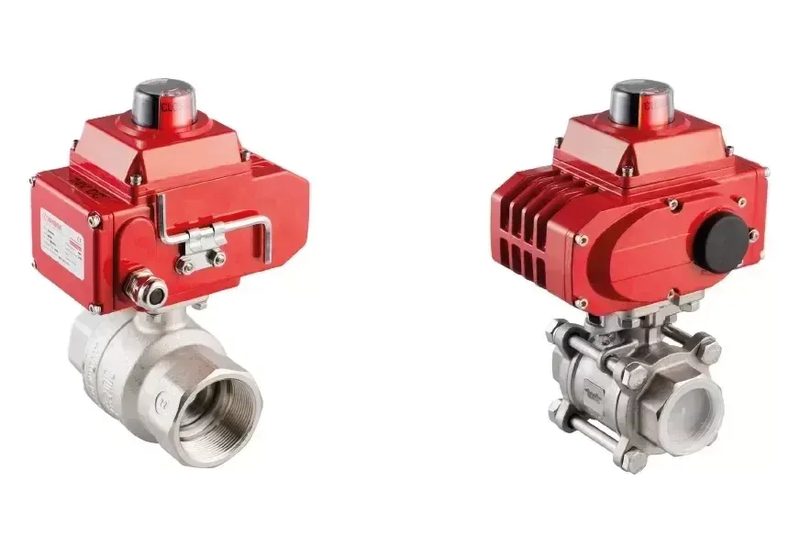

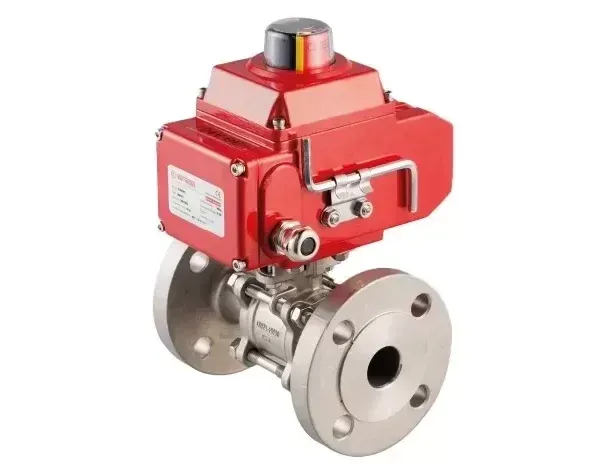

Motorized valves, commonly known as actuated valves, are crucial components in modern automation systems. Unlike traditional manual valves, which require human effort to open or close via a handle or gearbox, motorized ball control valves function automatically. This automation is powered by an electric actuator that responds to control signals, enabling the valve to open or close without manual intervention. When combined with a ball valve, this system is referred to as an electrically actuated valve, a key solution in industries ranging from oil and gas to manufacturing and HVAC systems.
The compatibility between valve and actuator is standardized to simplify integration. The most widely accepted mounting standard for motorized valves is ISO 5211. This standard outlines specific bolt hole patterns and sizes for various valve sizes, allowing actuator and valve manufacturers to ensure that their products will bolt together easily, regardless of the brand.
What Makes a Valve "Motorized"?
To achieve motorization, both the valve and the actuator must be compatible and able to physically attach to each other. Typically, valve manufacturers design their products with an integrally cast mounting pad, which allows the actuator to be directly bolted to the valve. This type of system is known as a direct mount valve. The mounting pad is incorporated into the valve body casting, ensuring that the valve and actuator fit together seamlessly.The compatibility between valve and actuator is standardized to simplify integration. The most widely accepted mounting standard for motorized valves is ISO 5211. This standard outlines specific bolt hole patterns and sizes for various valve sizes, allowing actuator and valve manufacturers to ensure that their products will bolt together easily, regardless of the brand.
Electric Actuators: Types and Features
Electric actuators, which power motorized ball valves, come in various configurations to meet the diverse demands of different applications. These actuators are designed to operate at different voltages and torques, making them adaptable to various system requirements.Voltages
Electric actuators are available in a range of input voltages, from low voltage options such as 12V DC to higher voltages like 240V AC. This range allows for greater flexibility, enabling motorized valves to function in different environments, whether it's in a residential setting or a heavy industrial application. Some actuators are designed for a specific voltage, such as 24V DC or 120V AC, while others feature multi-voltage functionality. Multi-voltage actuators automatically sense the input voltage and adjust their internal components to operate efficiently, making them versatile for varying power supply conditions.
Torque
Torque is a critical parameter for electric actuators, as it determines the amount of force the actuator can apply to the valve. For example, actuators can have torque ratings ranging from as low as 17Nm for compact actuators, to as high as 600Nm (5310 inch-pounds) for larger, more powerful actuators. The torque rating is chosen based on the size and pressure requirements of the valve being controlled. Larger valves or those operating under higher pressures need actuators with higher torque capabilities.
Quarter Turn vs. Multi-Turn Actuators
The design of the actuator is largely determined by the type of valve it controls. There are two main types of actuator movements: quarter turn and multi-turn.
1. Quarter Turn Actuators
These actuators are designed for valves that operate with a rotational motion, such as ball valves and butterfly valves. The mechanism of these valves involves rotating a ball or a disc inside the valve body to control the flow of fluids.
Quarter turn actuators only need to rotate the valve 90° to fully open or close it, making them simple and efficient. This 90° rotation is sufficient to move the valve from one position (fully open) to another (fully closed), allowing for fast operation and high reliability.
Ball valves, for instance, typically require only a quarter turn to switch between open and closed positions, and the actuator precisely rotates the valve through this range. These actuators are known as quarter turn actuators and are ideal for these applications.
Quarter turn actuators only need to rotate the valve 90° to fully open or close it, making them simple and efficient. This 90° rotation is sufficient to move the valve from one position (fully open) to another (fully closed), allowing for fast operation and high reliability.
Ball valves, for instance, typically require only a quarter turn to switch between open and closed positions, and the actuator precisely rotates the valve through this range. These actuators are known as quarter turn actuators and are ideal for these applications.
2. Multi-Turn Actuators
In contrast, valves that require linear motion—such as gate valves, globe valves, and diaphragm valves—demand a different kind of actuator. These valves do not rotate but instead move in and out along a linear path.
Achieving linear motion with an electric actuator is more complex and often less precise if done directly. For this reason, multi-turn actuators are commonly used. These actuators typically employ an electric motor that rotates a jack screw, converting rotational motion into linear motion.
Depending on the design of the jack screw and the required linear stroke, the actuator may need to complete several full revolutions to fully open or close the valve. The actuator's ability to generate multiple turns ensures accurate control over the linear motion, making it ideal for precise applications where flow regulation is critical.
Achieving linear motion with an electric actuator is more complex and often less precise if done directly. For this reason, multi-turn actuators are commonly used. These actuators typically employ an electric motor that rotates a jack screw, converting rotational motion into linear motion.
Depending on the design of the jack screw and the required linear stroke, the actuator may need to complete several full revolutions to fully open or close the valve. The actuator's ability to generate multiple turns ensures accurate control over the linear motion, making it ideal for precise applications where flow regulation is critical.
Applications of Motorized Ball Valves
Motorized ball valves, with their automated control capabilities, are essential for a wide range of industrial applications. These valves are used in systems that require precise, reliable, and efficient flow control, including:
HVAC Systems
In heating, ventilation, and air conditioning (HVAC) systems, motorized ball valves help regulate airflow and fluid flow in pipes and ducts. Their automated nature makes them ideal for systems requiring constant adjustments, such as in large commercial buildings or industrial facilities.
Water Treatment
Motorized valves play a key role in water and wastewater treatment plants, where they control the flow of water or chemicals through various stages of the treatment process. Their precision and ability to operate autonomously make them indispensable in managing complex water systems.
Oil and Gas
In the oil and gas industry, motorized ball valves are used in upstream, midstream, and downstream operations. Whether controlling the flow of oil, gas, or chemical substances in pipelines or processing facilities, these valves ensure safe, efficient, and automated flow control.
Manufacturing and Process Control
Motorized ball valves are also widely used in manufacturing processes that involve the flow of liquids, gases, or powders. Their ability to operate remotely and automatically ensures that production lines continue to run smoothly, with minimal human intervention.
Benefits of Motorized Ball Valves
Automation and Efficiency
The primary advantage of motorized ball valves is their ability to automate processes that would otherwise require manual labor. This not only saves time but also reduces the potential for human error, increasing the overall efficiency of operations.
Precise Control
Motorized valves, particularly with quarter turn or multi-turn actuators, offer precise control over fluid and gas flow. This precision is crucial in industries where exact measurements are necessary, such as in pharmaceuticals, chemical processing, and food production.
Safety and Reliability
By automating valve operations, motorized ball valves reduce the risk of mishandling and ensure consistent performance under varying conditions. Additionally, the ability to integrate these valves into broader control systems (such as SCADA systems) enhances their safety, as operators can monitor and control processes remotely.
Versatility
With various voltage and torque options, motorized ball valves can be tailored to meet the specific needs of different applications, making them versatile and adaptable to a wide range of industries.
Conclusion
Motorized ball valves, driven by electric actuators, represent a critical advancement in valve technology. By automating the valve operation, these systems offer significant benefits in terms of efficiency, precision, safety, and versatility. With the ability to integrate seamlessly into various industrial systems, motorized valves are poised to remain a key component in the optimization of flow control processes across a wide range of industries. Whether for HVAC, water treatment, oil and gas, or manufacturing, the electric actuator and ball valve combination provides a reliable and cost-effective solution for modern automation needs.
