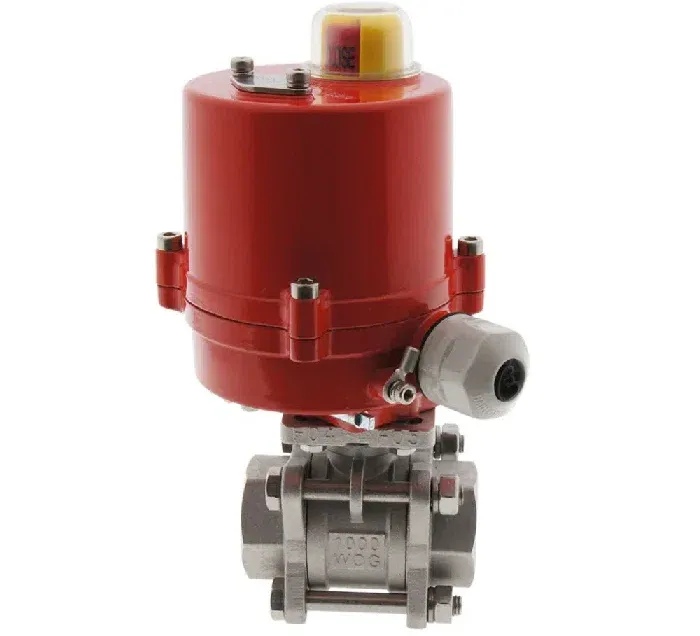

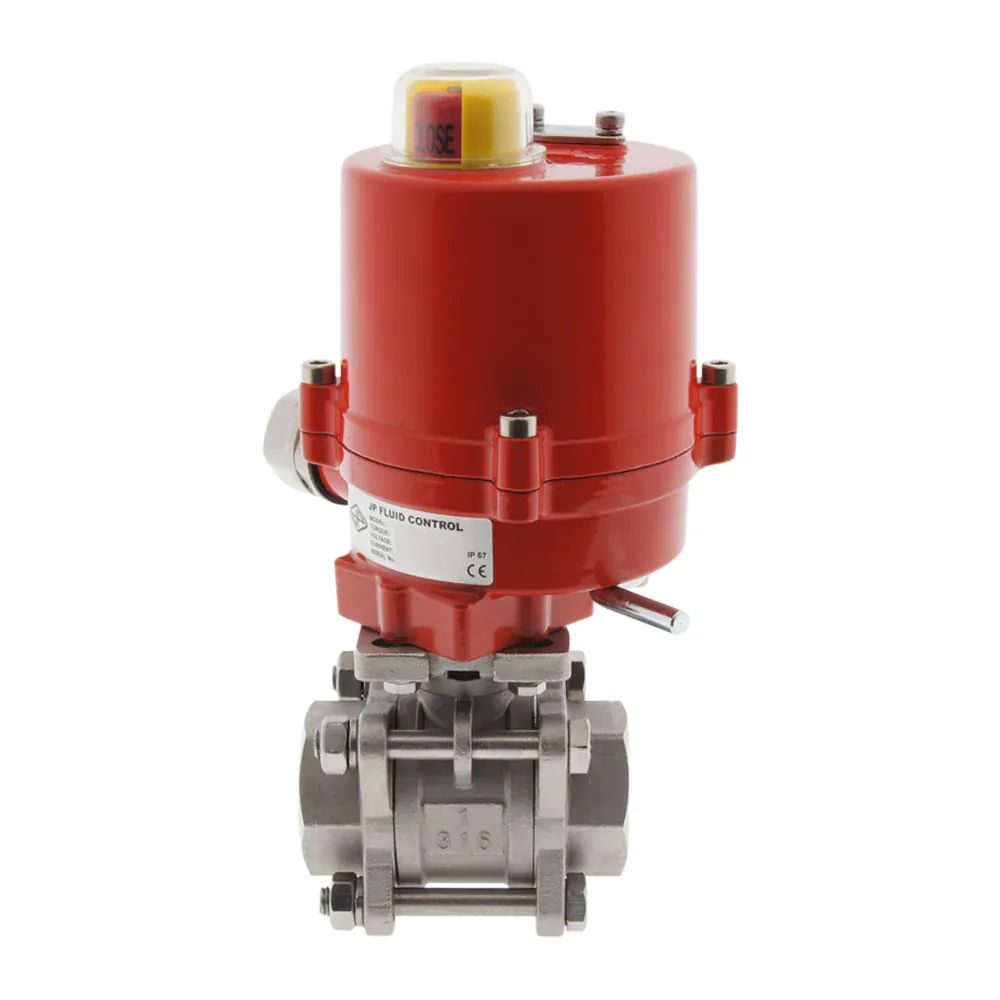

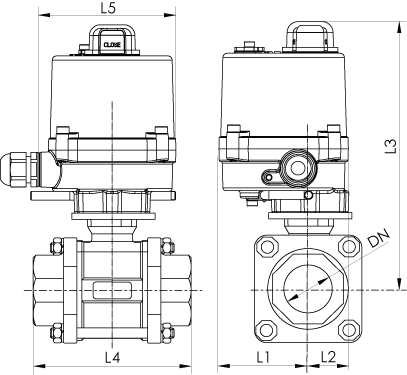

In the ever-evolving world of industrial automation and fluid control systems, the demand for efficient, durable, and precise solutions continues to grow. The 2-Way Stainless Steel Electrical Ball Valve from Topper stands out as a state-of-the-art innovation designed to meet these demands. This robust and energy-efficient valve is engineered to automatically control the flow of gases or fluids in pipelines, making it an essential component in a wide range of industrial applications. With its 3/8-inch pipe threads (internal thread, BSPP), stainless steel housing, and advanced sealing technology, this Electrical Ball Valve is built to withstand the rigors of even the most demanding environments. The actuator, housed in a durable aluminum casing, is compatible with power supplies ranging from 100 to 240V alternating current (50/60Hz) and delivers a maximum torque of 40 Nm. The valve's ability to rotate from 0 to 90 degrees in just 8 seconds, combined with its energy-saving features, positions it as a leader in the field of flow control technology.
Key Features and Benefits of Electrical Ball Valve
Robust Stainless Steel Construction
The valve's housing is constructed from high-quality stainless steel, ensuring exceptional durability and resistance to corrosion. The stainless steel ball and PTFE (Teflon)/FKM sealing further enhance the valve's longevity and reliability, making it suitable for use with a wide range of gases and fluids. This robust construction ensures that the valve can withstand high pressures and temperatures, making it ideal for use in harsh industrial environments.
Efficient Switching Time
The valve boasts an impressive switching time of just 8 seconds, allowing for rapid response in critical applications. This swift operation minimizes downtime and enhances overall system efficiency. Whether it's for emergency shut-off or routine flow control, the quick response time ensures that operations can continue smoothly without unnecessary delays.
IP67-Rated Actuator Housing
The actuator is encased in a robust aluminum housing with an IP67 rating, providing superior protection against dust and water ingress. This ensures reliable operation even in harsh environmental conditions, provided that an appropriate cable is connected. The IP67 rating makes the valve suitable for use in outdoor installations, as well as in environments where exposure to moisture and dust is a concern.
Wide Voltage Compatibility
The actuator is designed to operate with power supplies ranging from 100 to 240V AC, making it versatile and adaptable to various electrical systems worldwide. This wide voltage range ensures that the valve can be used in different regions without the need for additional power conversion equipment, simplifying installation and reducing costs.
Position Feedback with Limit Switches
The actuator is equipped with two additional limit switches for precise position feedback. These switches are positioned at 0 and 90 degrees, allowing for accurate monitoring of the valve's position. The angular position of the switches can be adjusted by the user, offering flexibility in control. This feature is particularly useful in applications where precise control of the valve's position is critical, such as in chemical processing or water treatment.
Manual Override Control
In the event of a power failure or system malfunction, the actuator features a manual override control, enabling manual operation of the valve. This ensures continuous operation and minimizes disruptions in critical processes. The manual override is easy to operate, allowing for quick adjustments when needed, and ensures that the valve can be controlled even in emergency situations.
Clear Visual Position Indicator
A mechanical position indicator located on the top of the actuator provides a clear visual representation of the valve's position. This feature simplifies monitoring and enhances operational transparency. The position indicator is easy to read, even from a distance, and provides a quick and accurate way to determine the valve's status.
Electrical Wiring Diagram and Operation
The actuator is designed for use with alternating current (50/60Hz) ranging from 100 to 240 volts. It draws a nominal current of 0.1A and a maximum current of 0.2A at peak torque. To connect a cable to the actuator, the cover must be removed using four bolts. The system operates on a 3-point control mechanism:
Terminal 1 and 2: These terminals are permanently connected to the power supply.
Terminal 3 and 4: These terminals are used to control the opening and closing of the valve. The signal (phase/null) to terminals 3 and 4 must match that of terminal 2 to ensure proper operation.
Important Safety Considerations
Avoid Short Circuits
Never connect terminals 3 and 4 simultaneously, as this can cause a short circuit and potentially damage the actuator. It is crucial to follow the wiring diagram carefully to ensure safe and reliable operation.
Limit Switches
The actuator is equipped with two internal limit switches that automatically shut off the motor when the valve reaches its end position (0 or 90 degrees). This feature not only conserves energy but also prevents mechanical stress on the valve. The limit switches can be adjusted to suit specific application requirements, providing additional flexibility in control.
Grounding
Always connect the earth (ground) wire and avoid using the pipes as a ground to ensure safe and reliable operation. Proper grounding is essential to prevent electrical hazards and ensure the longevity of the valve and actuator.
