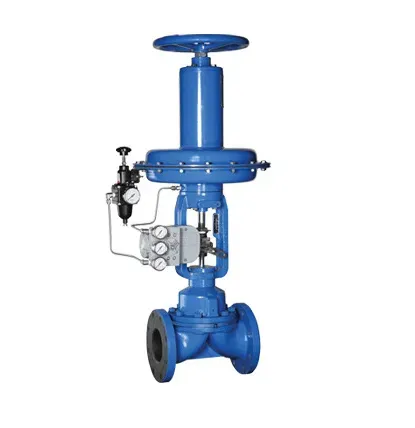

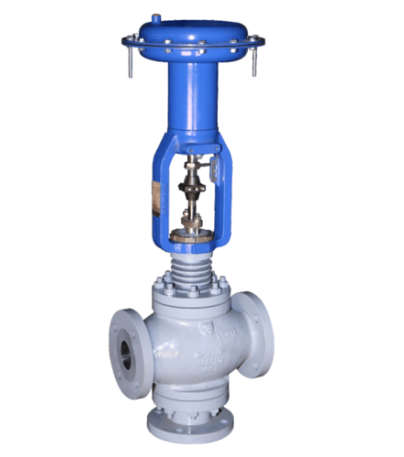

Diaphragm control valves are critical components in a wide range of industrial applications, playing a pivotal role in controlling the flow of liquids and gases. These valves are uniquely designed with a flexible diaphragm that separates the valve body from the operating mechanism, making them highly effective in handling corrosive, abrasive, and viscous fluids. Their ability to provide precise flow control, coupled with their durability and low maintenance requirements, makes them indispensable in industries such as pharmaceuticals, food and beverage, water treatment, chemical processing, and more.
This article delves into the fundamentals of diaphragm control valves, exploring their design, operation, advantages, disadvantages, and key considerations for selection and maintenance. By understanding these aspects, engineers and operators can ensure optimal performance and longevity of diaphragm control valves in their applications.
Diaphragm control valves are a type of linear motion valve that uses a flexible diaphragm to regulate fluid flow. The diaphragm acts as a barrier between the fluid and the valve's internal components, preventing contamination and wear. This design makes diaphragm valves particularly suitable for applications involving aggressive or sensitive media, where traditional valves might fail due to corrosion or clogging.
The primary function of a diaphragm control valve is to modulate or control the flow rate of a fluid within a pipeline. This is achieved by adjusting the position of the diaphragm, which either restricts or allows the flow of the fluid. The valve's ability to provide precise control over flow rates makes it an essential tool in process industries, where accuracy and reliability are paramount.
To understand how diaphragm control valves work, it is essential to familiarize yourself with their key components:
The valve body is the outer shell that houses the internal components and connects to the pipeline. It is typically made of materials resistant to corrosion and wear, such as stainless steel, PVC, or PTFE.
The diaphragm is the heart of the valve. It is a flexible membrane made of elastomeric or thermoplastic materials, such as EPDM, Nitrile, or Viton. The diaphragm moves up and down to control the flow of fluid, ensuring that the media does not come into contact with the valve's internal mechanisms.
The actuator is the component responsible for moving the diaphragm. It can be manual, pneumatic, electric, or hydraulic, depending on the application. Pneumatic actuators are the most common due to their reliability and ease of control.
The compressor is the part of the valve that presses against the diaphragm to regulate its position. It ensures that the diaphragm seals tightly against the valve seat, preventing leaks.
The valve seat is the surface against which the diaphragm seals to stop the flow of fluid. It is designed to provide a tight seal and is often made of durable materials to withstand wear and tear.
The stem connects the actuator to the compressor, transmitting the actuator's motion to the diaphragm. It is typically made of stainless steel or other corrosion-resistant materials.
The operation of a diaphragm control valve is relatively straightforward. When the actuator is engaged, it moves the stem and compressor, which in turn adjusts the position of the diaphragm. The diaphragm's movement either opens or closes the flow path, allowing precise control over the fluid flow.
Open Position: In the open position, the diaphragm is lifted away from the valve seat, allowing fluid to flow through the valve.
Closed Position: In the closed position, the diaphragm is pressed against the valve seat, creating a tight seal and stopping the flow of fluid.
Throttling Position: For flow control applications, the diaphragm can be positioned at intermediate points between fully open and fully closed, allowing for precise modulation of the flow rate.
Selecting the right diaphragm control valve for a specific application requires careful consideration of several factors. These include the valve flow coefficient, pressure drop, rangeability, and proper sizing. Below, we explore these considerations in detail:
The valve flow coefficient, or Cv, is a critical parameter that measures the valve's capacity to allow fluid flow. It is defined as the volume of water (in US gallons) that will flow through the valve per minute at a pressure drop of 1 psi. The Cv value is essential for selecting the correct valve size to achieve the desired flow rate.
The formula for calculating the Cv is:
Cv = Q√SG/ΔP
Where:
Q = Flow rate (in gallons per minute)
SG = Specific gravity of the fluid
ΔP = Pressure drop across the valve (in psi)
A higher Cv value indicates a greater flow capacity, while a lower Cv value suggests a more restrictive valve. Properly matching the Cv to the application ensures efficient and accurate flow control.
Pressure drop refers to the reduction in fluid pressure as it passes through the valve. It is an important consideration because excessive pressure drop can lead to energy losses and reduced system efficiency. In applications where the pressure drop across the valve is minimal compared to the total system pressure drop, a diaphragm valve with a quick or fast-acting mechanism is ideal. This ensures precise control over the flow rate without significant energy losses.
Rangeability is a measure of a valve's ability to handle varying flow rates. It is expressed as the ratio of the maximum to minimum controllable flow rates. A higher rangeability indicates that the valve can effectively manage a wider range of flow rates, making it suitable for applications with fluctuating demand.
Rangeability depends on several factors, including the size and precision of the actuator, the design of the valve body, and the flexibility of the diaphragm. Selecting a valve with appropriate rangeability ensures optimal performance across different operating conditions.
Proper valve sizing is crucial for diaphragm control valves used in throttling applications. Sizing involves calculating the volume of fluid passing through the valve, taking into account factors such as flow rate, inlet and outlet pressures, fluid temperature, specific gravity, and viscosity. Accurate sizing ensures that the valve meets the required capacity and pressure drop specifications.
Techniques such as using the pipe geometry factor are commonly employed in sizing diaphragm valves. Oversized valves can lead to poor control and excessive wear, while undersized valves may cause excessive pressure drop and flow restrictions.
Diaphragm control valves offer several advantages that make them a preferred choice in many industrial applications:
Diaphragm valves provide precise control over flow rates, making them ideal for throttling applications where accuracy is critical.
The absence of pockets or crevices in the valve design minimizes the risk of sediment buildup or biofilm formation, making diaphragm valves suitable for sanitary applications in the food, beverage, and pharmaceutical industries.
Diaphragm valves excel in handling highly viscous, sticky, and particle-laden fluids, thanks to their smooth flow path and flexible diaphragm.
Since the operating mechanism is isolated from the flowing media, the risk of stem leakage to the environment is significantly reduced.
Maintenance and servicing can be performed without interrupting the pipeline, as the diaphragm can be replaced without disassembling the entire valve.
Despite their many advantages, diaphragm control valves have some limitations:
Diaphragm valves are typically used in applications with moderate pipeline temperatures and pressures. High temperatures or pressures can cause the diaphragm to degrade or fail.
The diaphragm's flexibility limits its ability to withstand high hydrostatic pressures, making these valves unsuitable for high-pressure applications.
Prolonged use in severe throttling applications can lead to diaphragm erosion, reducing the valve's lifespan.
The weir design in some diaphragm valves may prevent full drainage of the piping, which can be a concern in applications requiring complete fluid evacuation.
Diaphragm control valves are versatile and reliable components that play a vital role in controlling fluid flow across various industries. Their unique design, which incorporates a flexible diaphragm, makes them ideal for handling corrosive, abrasive, and viscous media while providing precise flow control. By understanding the key considerations for selecting, operating, and maintaining diaphragm control valves, engineers and operators can ensure their optimal performance and longevity.
While diaphragm valves have some limitations, their advantages far outweigh their disadvantages in many applications. Whether used in throttling, sanitary, or challenging media applications, diaphragm control valves continue to be a trusted solution for achieving accurate and efficient flow control in industrial processes.
