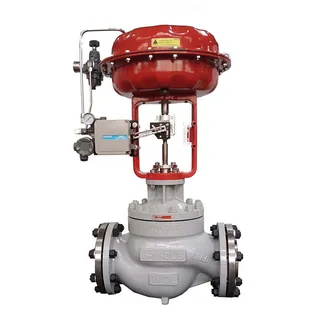

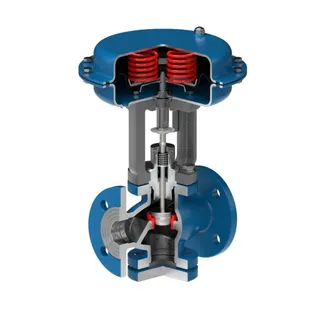

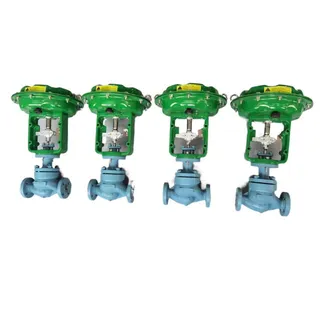

Pneumatic Top-Guided Single Seated Control Valves are engineered for robust applications. Featuring a compact valve body with an S-shaped flow passage, they minimize pressure loss while maximizing flow capacity, rangeability, and precise flow characteristics. The valve plug, securely guided from the top, ensures exceptional vibration resistance with a large sliding area. Shut-off performance meets IEC or JIS Standards, supported by a compact diaphragm actuator equipped with multiple springs for efficient operation. These valves are widely used for reliable control in both high and low temperature, high-pressure processes.
Product Name: Single-Seated Control Valve
Type: Straight-through, cast globe valve
Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Size: 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, 2-1/2 Inch, 3 Inch, 4 Inch, 5 Inch, 6 Inch, 8 Inch
Pressure: Class 150 LB, Class 300 LB, Class 600 LB
End connection:
(1) Flanged End: FF, RF, RJ, LG, According to ANSI B16.5, JIS B2201, JB/T79.1
(2) Welded End: SW, BW
(3) Threaded End: Rc
Bonnet:
(1) Plain bonnet (-17 to 230°C)
(2) Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
(3) Extension bonnet Type 2 Cryogenic: Integral cast type (-100 to -45°C)/ Welded type (-196 to -100°C)
(4) Bellows type
Gland type: Bolted Gland
Packing: V-shaped PTFE, PTFE, Flexible graphite
Gasket material: Stainless steel (SUS 304, SUS 316, SUS 316L), copper, aluminum
Valve plug: Single-seated, Contoured type plug
Actuator Type:
Single-acting diaphragm actuator, Spring type piston
actuator, Double acting piston actuator
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Spring range
• 20 to 100 kPa(0.2 to 1.0 kgf/cm2)
• 40 to 200 kPa(0.4 to 2.0 kgf/cm2)
• 80 to 240 kPa(0.8 to 2.4 kgf/cm2)
Supply pressure
0.14, 0.16, 0.28, 0.4, 0.5 Mpa
Air connection
Rc 1/4 or 1/4 NPT internal thread
