Multi-turn Electric Control Valve, ASTM A351 CF8, 1/2-20 IN

Multi-turn Electric Control Valve, ASTM A351 CF8, 1/2-20 IN
Multi-turn Electric Control Valve, ASTM A351 CF8, 1/2-20 IN
Our multi-turn electric control valve plant in China is dedicated to producing high-quality valves with precision and durability. Crafted from premium materials such as ASTM A351 CF8, CF8M, CF3, and CF3M, these valves are built for exceptional performance in corrosive environments. The use of ASTM A182 F304 for the stem ensures a high level of strength and resistance to wear.

Detail Information

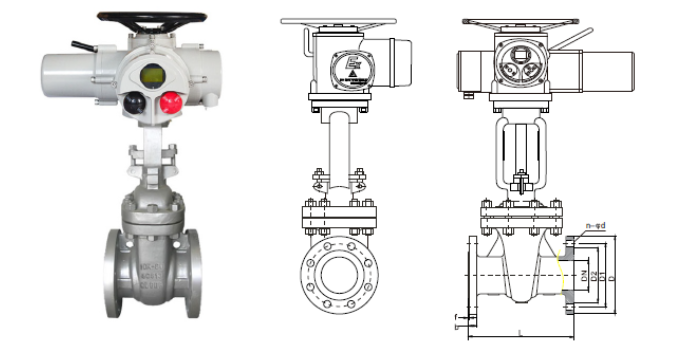

Multi-turn Electric Control Valve Main Outline and Structure

Product Name: Multi-turn Electric Control Valve
Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Nominal Size: 1/2-20 Inch, DN15-DN500
Pressure Rating: Class 150 LB, PN20
Connection Type: Flange
Seal Structure: Soft Seal
Form: Two or Three Way
Working Temperature: -29°C - 180°C
Operation: Electric
Applications: Petrochemical industry, chemical industry, gas, natural gas, liquefied petroleum gas and general industry.


Advantage of  Multi-turn Electric Control Valve

Wide Temperature Range: Operates effectively in temperatures ranging from -30°C to 300°C (-86°F to 572°F), making it suitable for both low and high-temperature applications.

Tight Shut-Off: Provides excellent sealing capabilities to minimize leakage when the valve is closed, ensuring reliable operation and preventing fluid loss.

Unidirectional Flow: Allows fluid to flow in only one direction, preventing backflow and ensuring the integrity of the process.

Versatility: Available in various sizes, materials, and actuation options to cater to a wide range of industrial needs and applications.

Compact Construction: Features a space-saving design, ideal for installations where space is limited.

Ease of Maintenance: Designed with fewer moving parts, making it easier to maintain and repair, thus reducing downtime and maintenance costs.

Features of Electric Actuators

Manual Functionality: Equipped with a handwheel for manual operation, providing a backup in case of power failure or for precise manual control.

Variety of Actuators: Offers options including switch-type, adjustable, and intelligent actuators, which can be selected based on specific operational requirements.

Remote Control Capability: Can be controlled remotely, significantly reducing labor costs and allowing for easier operation and monitoring from a distance.

Temperature Resistance: Operates in temperatures as low as -30°C (-86°F) and up to 180°C (356°F), making it suitable for a variety of environments.

Certification Compliance: Complies with ISO 5211 and Namur international installation standards, ensuring ease of installation and maintenance as well as adherence to industry standards.
