Stainless Steel Butterfly Control Valve, 2-20 IN, 150-900 LB

Stainless Steel Butterfly Control Valve, 2-20 IN, 150-900 LB
Stainless Steel Butterfly Control Valve, 2-20 IN, 150-900 LB
Our Stainless Steel Butterfly Control Valve Fabricator delivers exceptional quality and precision in fluid control solutions. Crafted from premium ASTM A351 CF8 Stainless Steel, these valves are available in a broad range of sizes from 2 to 20 inches, aligning with DN50 to DN500 dimensions. They are designed to meet stringent industry standards, ranging from Class 150 to Class 900 LB, and offer a pressure rating from PN20 to PN150, catering to a multitude of high-demand applications.

Detail Information

Product Name: Stainless Steel Butterfly Control Valve
Material: Cast Iron, Carbon Steel ASTM A216 WCB, Stainless Steel ASTM A351 CF8, ASTM A351 CF8M
Seat Material: Rubber, PTFE
Disc Material: Cast Iron,Stainless Steel
Nominal Size: 2-20 Inch, DN50-DN500
Pressure Rating: Class 150-900 LB, PN20-PN150
Connection Type: Wafer, Flanged Type
Working Temperature: -30℃ - 180℃
Mode of Action: Double-Acting/Single-Acting(Spring Return)

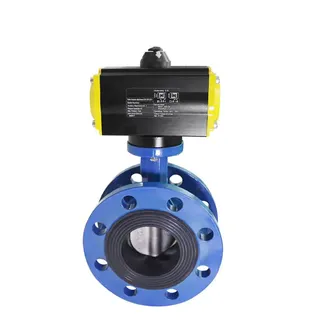

Operation: Pneumatic Actuator
Applications: HVAC Systems, Industrial Processes, Water Distribution Networks etc

Advantages

Corrosion Resistance: Successfully passes a 1,000,000 cycle life test.

High Pressure: Capable of handling pressures up to 6000 PSI.

Temperature Range: Operates effectively in temperatures ranging from -86℉ to 356℉ (-30℃ to 180℃).

Fireproof: Meets API 6D and JB/T6899 standards for fire resistance.

Fast and Responsive: Provides quick opening and closing functionality.

Low Torque Requirements: Easily automated and controlled with minimal torque.

Safety: Pneumatic actuators do not produce sparks or heat, making them safe for applications where explosion hazards are a concern.

Valve Body Features

Types: Includes butterfly valves (wafer, lug, flange, tri-clamp), gate valves, and globe valves.

Materials: Available in cast iron, carbon steel (WCB), and stainless steel.

Standards: Complies with GB, ANSI, JIS, and DIN standards.

Customization: Can be customized for high pressure, high temperature, and strong corrosion resistance requirements.
