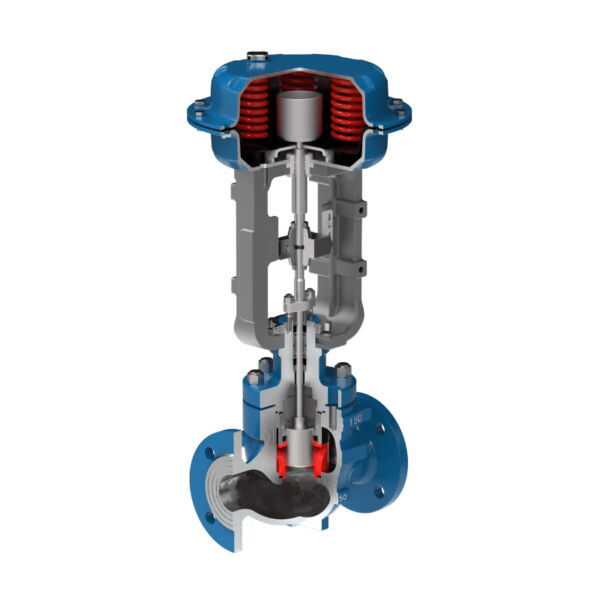

Cage Guided Control Valves, A216 WCB, 1-20 Inch, 150-2500 LB
Key Specifications / Features
As a leading provider of cage-guided control valves, we offer robust and reliable solutions designed to meet your flow control needs. Our valves are available in sizes ranging from 1 to 20 inches and pressure classes of 150-2500 LB, ensuring versatility across various applications. Constructed from ASTM A216 WCB material, our single-seated valves are built for durability and long-term performance.
- Hits: 8
- Categories: Other Control Valves
- Tags: Cage Guided Control Valve, ASTM A216 WCB Control Valve, Single-Seated Control Valve
Detail Information
Nominal Diameters
• 1-20 Inch, DN25-DN500
Nominal pressure values
•Class 150-Class 2500 PN20-PN420
Design
• single seated valve: balanced plug, profiled plug, perforated plug, multi-stage reduction, cage-guided plug, multicage
Operating temperature range
• -29°C to +560°C
Flow characteristics
• linear
• equipercent
• on/off
Flow coefficient Kvs
• 1 – 2000 [m3.h-1]
Leakage class (IEC 60534-4)
• class IV
• class V
• class VI
Body material
• carbon steel A216 WCB
• alloy steel A217 WC6, WC9
• stainless steel A351 CF8, CF8M
• other as required
Plug and seat material
• stainless steel
• stellit
• monel
• hastelloy
Connection
• flanged
• welded
• 1-20 Inch, DN25-DN500
Nominal pressure values
•Class 150-Class 2500 PN20-PN420
Design
• single seated valve: balanced plug, profiled plug, perforated plug, multi-stage reduction, cage-guided plug, multicage
Operating temperature range
• -29°C to +560°C
Flow characteristics
• linear
• equipercent
• on/off
Flow coefficient Kvs
• 1 – 2000 [m3.h-1]
Leakage class (IEC 60534-4)
• class IV
• class V
• class VI
Body material
• carbon steel A216 WCB
• alloy steel A217 WC6, WC9
• stainless steel A351 CF8, CF8M
• other as required
Plug and seat material
• stainless steel
• stellit
• monel
• hastelloy
Connection
• flanged
• welded
